OMRONPower supplies S8VSS8VS-24024B S8VS0125M S8VS24024B,1 OMRON 240W / 24V / 10A DIN Rail Display-Time func.

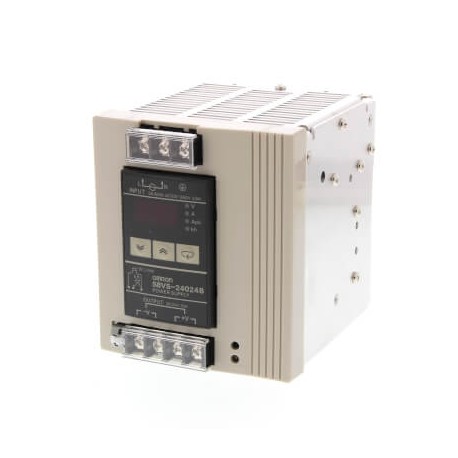

OMRON S8VS-24024B S8VS0125M S8VS24024B.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

S8VS-24024B S8VS0125M S8VS24024B,1 OMRON 240W / 24V / 10A DIN Rail Display-Time func.

Reference: S8VS-24024B

Code: S8VS0125M

Catalog Number: S8VS24024B.1

Manufacturer: OMRON

Description:

240W / 24V / 10A DIN Rail Display-Time func.
Power supply, 240 W, 100 to 240 VAC input, 24VDC 10 A output, DIN rail mounting, digital display with running voltage and current, peak current, and t
Power supply, 240 W, 100 to 240 VAC input, 24VDC 10 A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point

Categories:

  • Low-voltage industrial components > DC-power supply
  • OMRON > Power supplies > S8VS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 532,02 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output240 WEfficiency88 %Rated output current10 ATemperature range25-85 °CTerminal typeScrewCommunication port(s)NoneAlarm functionTransistor - sinkingNumber of output branches1Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VAllowable supply voltage DC80-370 VProduct Width (unpacked)100 mmProduct Height (unpacked)115 mmProduct Depth (unpacked)125.2 mm

ETIM for 281064 Low-voltage industrial controls and switchgear (EC002540)

Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueNone
Feature nameSIL according to IEC 61508 (EF009889)
Feature valueNone
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameWall mounting possible (EF003973)
Feature valueYes
Feature nameSecondary voltage adjustable (EF007002)
Feature valueYes
Feature nameModular version (EF001126)
Feature valueYes
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature nameDirect mounting possible (EF005689)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameShort-circuit-proof (EF007332)
Feature valueNo
Feature namePower consumption (EF000346)
Feature value300 VA
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameWidth (EF000008)
Feature value100 mm
Feature nameDepth (EF000049)
Feature value125.2 mm
Feature nameMax. output current 1 (EF008284)
Feature value10 A
Feature nameBuilt-in height (EF000332)
Feature value125.3 mm
Feature nameBuilt-in width (EF000846)
Feature value100.000 mm
Feature nameHeight (EF000040)
Feature value115 mm
Feature namePower output (EF003034)
Feature value240 W
Feature nameNominal value output current 1 (EF009396)
Feature value10 A
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value100 V
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value100 V
Feature name1st secondary output voltage (EF006792)
Feature value21.6 V

DATASHEET - PDF

Title
Size
Type
S8VS-24024B S8VS24024B.1 S8VS0125M EN_S8VS-24024B.pdf
6 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
