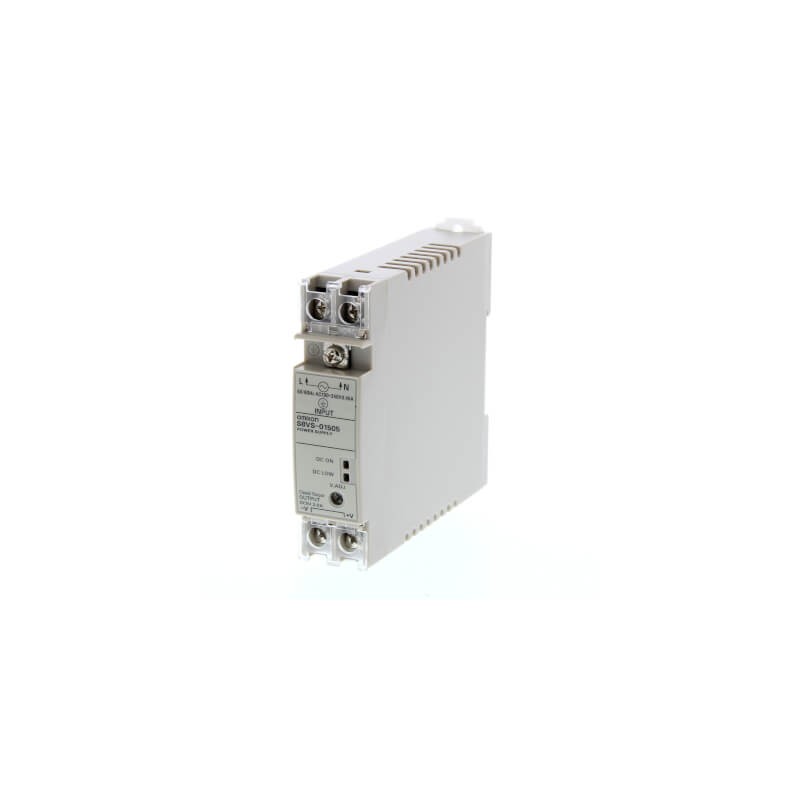

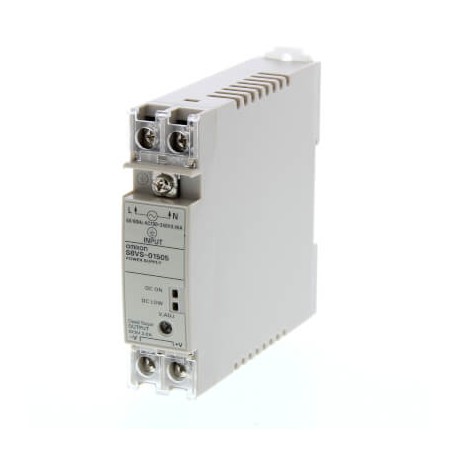

S8VS-01505 S8VS0156M S8VS01505,1 OMRON 15W / 5V / 2A 22.5 mm DIN Rail
S8VS-01505
S8VS0156M
S8VS01505.1
OMRON
15W / 5V / 2A 22.5 mm DIN Rail
Power supply, plastic case, 22.5 mm wide DIN rail or direct panel mounting, 100/240 VAC supply, 10 W, 5 VDC, 2.0 A output
Low-voltage industrial components > DC-power supply
Power supplies > S8VS
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Wall mounting possible (EF003973) | Yes |
| Secondary voltage adjustable (EF007002) | Yes |
| Modular version (EF001126) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Stabilized (EF005302) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Direct mounting possible (EF005689) | No |
| Suitable for safety functions (EF001597) | Yes |
| Short-circuit-proof (EF007332) | No |
| Power consumption (EF000346) | 44 VA |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal value output voltage 1 (EF009393) | 5 V |
| Width (EF000008) | 22.5 mm |
| Depth (EF000049) | 96.4 mm |
| Max. output current 1 (EF008284) | 2 A |
| Built-in height (EF000332) | 96.4 mm |
| Built-in width (EF000846) | 22.5 mm |
| Height (EF000040) | 85 mm |
| Power output (EF003034) | 15 W |
| Nominal value output current 1 (EF009396) | 2 A |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| 1st secondary output voltage (EF006792) | 4.5 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8VS-01505 S8VS01505.1 S8VS0156M EN_S8VS-01505.pdf | 6 Mbytes |
|
