OMRONPower supplies ACCESSORIESS8VK-R20 S8VK4001H S8VKR20 OMRON Module Redundancy 20A

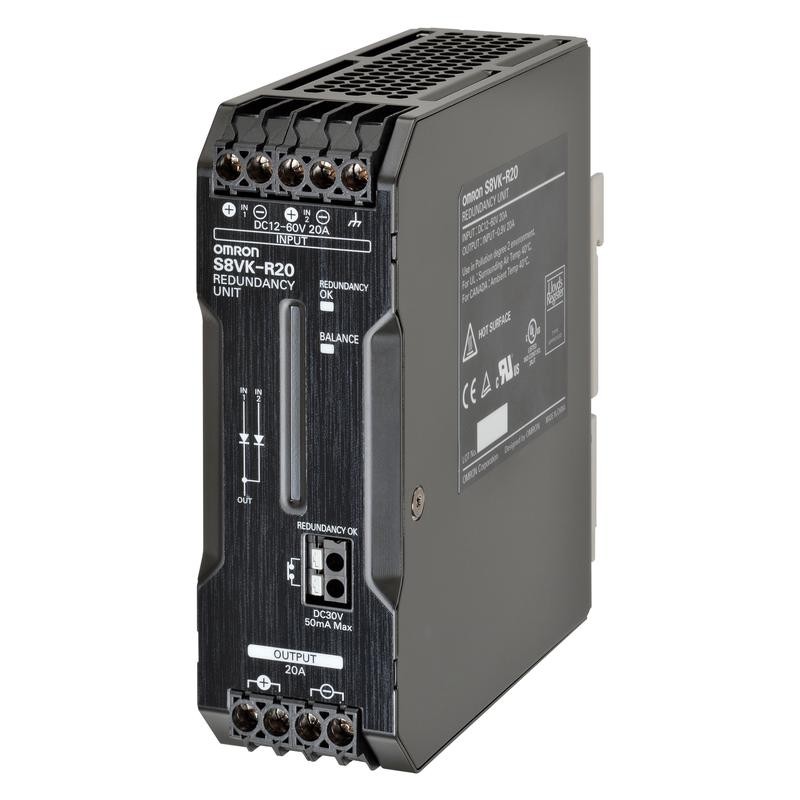

OMRON S8VK-R20 S8VK4001H S8VKR20 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

S8VK-R20 S8VK4001H S8VKR20 OMRON Module Redundancy 20A

Reference: S8VK-R20

Code: S8VK4001H

Catalog Number: S8VKR20

Manufacturer: OMRON

Description:

Module Redundancy 20A
Redundancy module for S8VK (input 10-60VDC, output 20A)

Categories:

  • Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
  • OMRON > Power supplies > Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 77,23 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Redundancy operating LED for status confirmation
  • Signal output for failure detection of power supplies
  • Operation temperature range: -40 to 70°C
  • Double your operational lifetime by adjusting the power supply voltage to light-up the Balance LED
  • Power Boost function is possible when used withS8VK-Gseries power supplies

Specifications & ordering info

Ordering information

Input voltage

Output current

Size (W × H × D) [mm]

Order code

Standard models

Coated models

5 to 30 VDC

10 A

32 × 90 × 110

S8VK-R10

S8VK-R10-400

10 to 60 VDC

20 A

40 × 125 × 113

S8VK-R20

S8VK-R20-400

Specifications

Type

S8VK-R10

S8VK-R20

Rated Input Voltage

5 to 30 V

10 to 60 V

Output Current

10 A

20 A

Voltage Drop

0.7 V max at 10 A

0.9 V max at 20 A

Operation Temperature range

-40 to 70°C

-40 to 70°C

Safety Standard

UL 60950-1, UL 508, cURus, cULus, EN 50178, EN 60950-1

Signal output

30 VDC 50 mA max by Photo MOS Relay

Redundancy OK Indicator

LED (Green), The function to know the both of PS operate normally.

Voltage Balance Indicator

LED (Green), The function to help to get the balance of 2 unit PS output voltage

Grounding terminal

-

Yes, One for Chassis grounding

Accessories

s8vk-r accessor oei prod

ETIM for 377514 Low-voltage industrial controls and switchgear (EC002498)

Feature nameType of accessory/spare part (EF000215)
Feature valueOther
Feature nameAccessory (EF013236)
Feature valueYes
Feature nameSpare part (EF013237)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
S8VK-R20 S8VKR20 S8VK4001H EN_S8VK-R10.pdf
4 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
