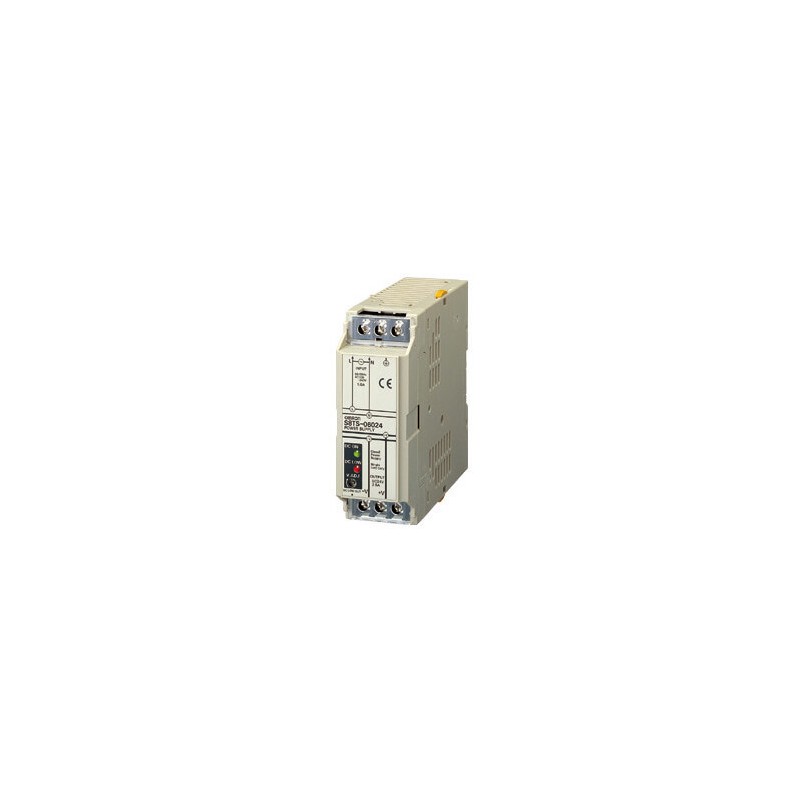

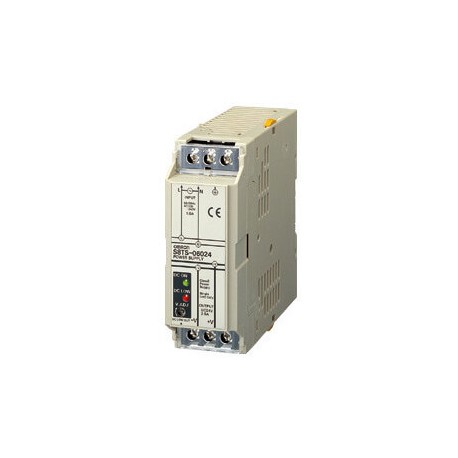

S8TS-06024 S8TS0021C S8TS06024.2 OMRON 60W / 24V / 2.5 A Term. screw
S8TS-06024
S8TS0021C
S8TS06024.2
OMRON
60W / 24V / 2.5 A Term. screw
60W/24V/2.5A term. screw
Power supply, 100 to 240 VAC input, 60 W 24 VDC 2.5A output, DIN rail mounting, screw terminals, modular PSU for multiple configurations, without bus line connector
Power supplies > S8TS
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type | Modular |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 60 W |
| Efficiency | 75 % |
| Output voltage | 24 V |
| Rated output current | 2.5 A |
| Temperature range | -25-65 °C |
| Features | UL class 2 |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | - |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
Accessories
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| S8TS-06024 S8TS06024.2 S8TS0021C EN_S8TS-03012-E1.pdf | 560 Kbytes |
|
| S8TS-06024 S8TS06024.2 S8TS0021C t022_s8ts_switch_mode_power_supply_datasheet_en.pdf | 560 Kbytes |
|
