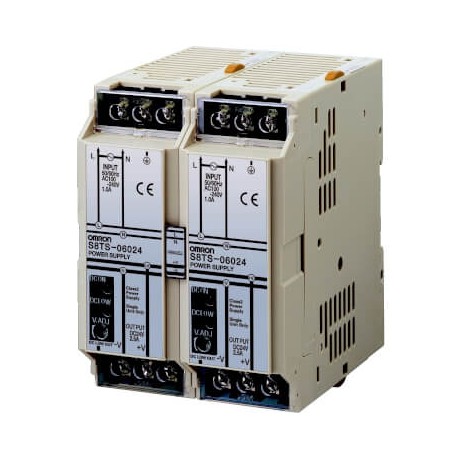

OMRON S8TS-06024-E1 S8TS0024H S8TS06024E1.2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

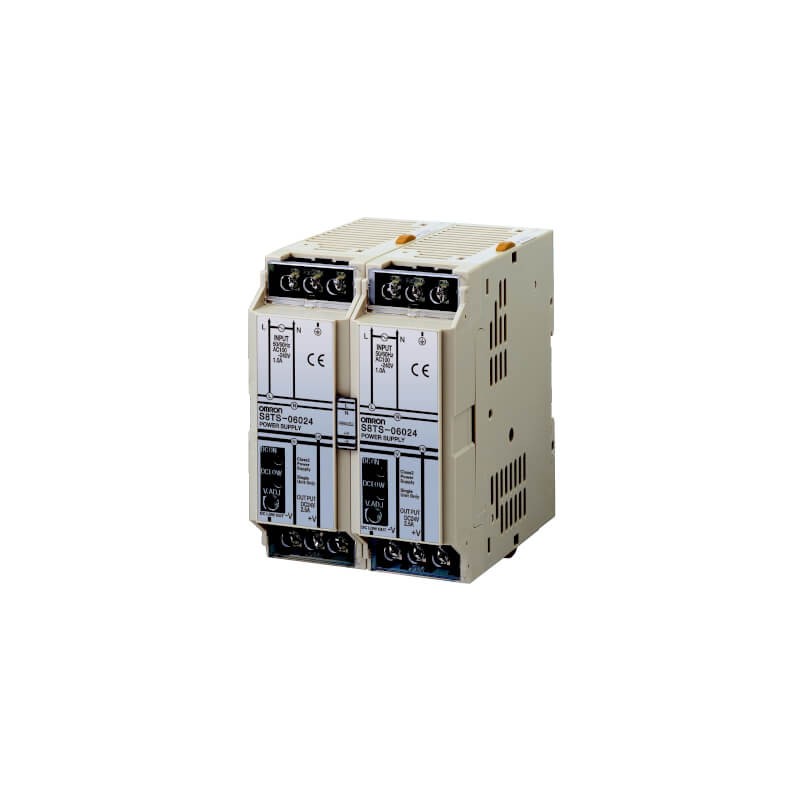

S8TS-06024-E1 S8TS0024H S8TS06024E1.2 OMRON 60W / 24V / 2.5 A Term. screw

Reference: S8TS-06024-E1

Code: S8TS0024H

Catalog Number: S8TS06024E1.2

Manufacturer: OMRON

Description:

60W / 24V / 2.5 A Term. screw
60W/24V/2.5A term. screw
Power supply, 100-240 VAC input, 60W 24VDC 2.5A output, DIN rail mounting, modular PSU for multiple configurations, with bus line connector

Categories:

  • OMRON > Power supplies > S8TS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Specifications

TypeModular
Mounting methodDIN rail
PhaseSingle
Power output60 W
Efficiency75 %
Output voltage24 V
Rated output current2.5 A
Temperature range-25-65 °C
FeaturesUL class 2, With bus line connectors
TerminalScrew
Communication port(s)None
Alarm function-
Number of output branches1
Rated supply voltage at AC 50 Hz100-240 V
Allowable supply voltage AC85-264 V

Accessories

S8T-BUS01Bus line connector for parallel operation with 12 & 24 VDC units, order as spares only (one supplied with 12 & 24 VDC units)
S8T-BUS02Bus line connector for isolated operation with 5, 12 & 24 VDC units, order for 5 VDC units only, order as spares only for 12 & 24 VDC units (one supplied)
S8T-BUS11Bus line connector for parallel operation with 12 & 24 VDC units, order as spares only, (pack of 10)
S8T-BUS12Bus line connector for isolated operation with 5, 12 & 24 VDC units, order for 5 VDC units only, order as spares only for 12 & 24 VDC units (pack of 10)
S8T-DCBU-02DC backup block for S8TS PSU of 500 ms at an output current of 2.5A
