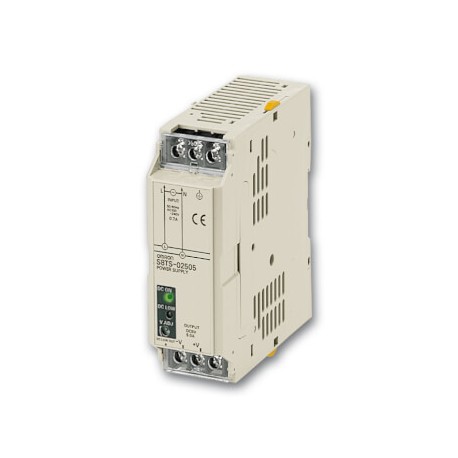

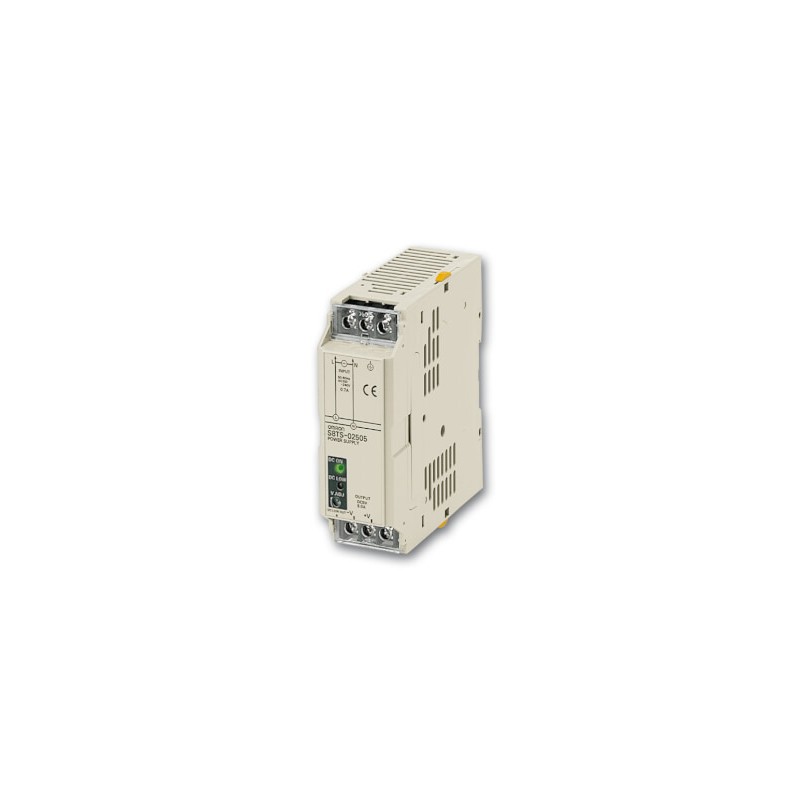

S8T-BUS01 S8TS0043D S8TBUS01.1 OMRON Accessory interconnect parallel DC and AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

S8T-BUS01 S8TS0043D S8TBUS01.1 OMRON Accessory interconnect parallel DC and AC

S8T-BUS01

S8TS0043D

S8TBUS01.1

OMRON

Accessory interconnect parallel DC and AC

DC and AC parallel interconnection accessory

More details


Power supplies > S8TS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Features

Industrial use, modular power supply for multiple configurations

The S8TS is an expandable power supply; standard units can easily be snapped together in parallel to provide you with ultimate flexibility. Expandable up to 4 units, it can deliver a total power of 240W at 24VDC or a multi-output configuration.

  • Improves system reliability by building up N+1 redundancy
  • Standard unit; 60 W at 24 VDC, 30 W at 12 VDC and 25 W at 5 VDC
  • Battery back-up unit protects against power outage
  • Buffer unit protects against power glitches and outage
  • EMI Class B, UL Class 2, UL Class 1 division 2

Ordering information

Basic block

Order code

Output voltage

Output current

Screw terminal type

With bus line connectors1

Without bus line connectors2

24 V

2.5 A

S8TS-06024-E13

S8TS-06024

12 V

2.5 A

S8TS-03012-E1

−

5 V

5 A

−

S8TS-02505
  • Note•There are other models available on request. Please contact your Omron representative for special request.
  • •There are Bus line connector accessories available on request. Please contact your Omron representative for special request.

Specifications

Item

5 V models

24/12 V models

Single operation

Single operation

Parallel operation

Efficiency

62% min.

24 V models: 75%, 12 V models: 70% min.

Power factor

0.8 min.

24 V models: 0.9 min., 12 V models: 0.8 min.

Input voltage

100 to 240 VAC, (85 to 264 VAC), single-phase

Output voltage

Voltage adjustment

5 V ±10% min.

24 V models: 22 to 28 V, 12 V models: 12 V ±10% min.

Ripple

2% (p-p) max.

2% (p-p) max.

2% (p-p) max.

Input variation

0.5% max.

−

−

Temperature influence

0.05%/°C max. (with rated input, 10 to 100% load)

Overcurrent protection

105 to 125% of rated load current, inverted L drop, automatic reset

Overvoltage protection

yes

yes

yes

Output indicator

yes (green)

yes (green)

yes (green)

Weight

450 g max.

450 g max.

450 g max.

Series operation

yes

yes

yes

Parallel operation

no

yes

yes

Size in mm (H×W×D)

120×43×120
1.One S8T-BUS01 connector and one S8T-BUS02 connector are included as accessories.
2.Bus line connectors can be ordered separately if necessary.
3.Conforms to EMI class B with DC minus terminal ground.

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf 19 Mbytes
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
S8T-BUS01 S8TBUS01.1 S8TS0043D s8ts_series_brochure_en.pdf 447 Kbytes S8T-BUS01 S8TBUS01.1 S8TS0043D s8ts_series_brochure_en.pdf
S8T-BUS01 S8TBUS01.1 S8TS0043D t022_s8ts_switch_mode_power_supply_datasheet_en.pdf 560 Kbytes S8T-BUS01 S8TBUS01.1 S8TS0043D s8ts_series_brochure_en.pdf
