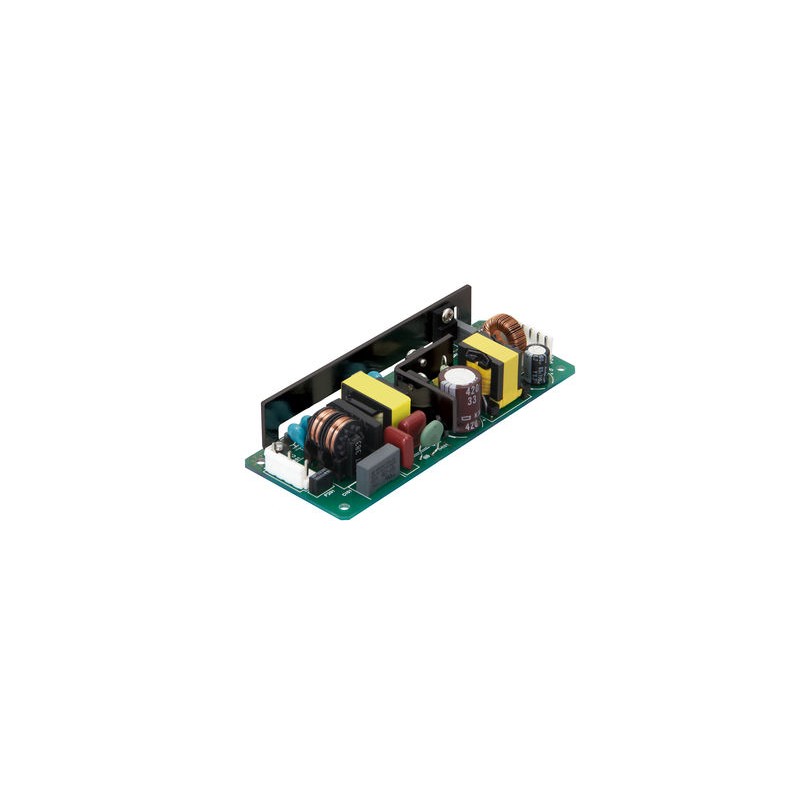

S8EX-BP15024 368078 S8EX1026M OMRON Power supply 150W 24Vdc, without casing
S8EX-BP15024
368078
S8EX1026M
OMRON
Power supply 150W 24Vdc, without casing
Power supplies > Others Power supplies
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Ordering information
Power ratings | Input voltage | Output voltage | Output current | Size (W × H × D) [mm] | Order code |
|---|---|---|---|---|---|
50 W | 100 to 240 VAC | 12 V | 4.3 A | 50 × 28.5 × 132 | S8EX-BP05012 |
24 V | 2.1 A | S8EX-BP05024 | |||
100 W | 12 V | 8.5 A | 62 × 35.5 × 155 | S8EX-BP10012 | |
24 V | 4.3 A | S8EX-BP10024 | |||
150 W | 12 V | 12.5 A | 75 × 37.5 × 160 | S8EX-BP15012 | |
24 V | 6.3 A | S8EX-BP15024 | |||
240 W | 24 V | 10 A | 84 × 42.5 × 180 | S8EX-BP24024 |
Note: There are other models available on request: 15 W and 30 W (5 VDC, 12 VDC, 15 VDC, 24 VDC, 48 VDC); 50 W, 100 W and 150 W (5 VDC, 48 VDC); 240 W (36 VDC, 48 VDC).
Please contact your Omron representative for special request.
Specifications
Specification | 50 W | 100 W | 150 W | 240 W | |
|---|---|---|---|---|---|
Efficiency (Typ at 200 VAC) | 85% (24 V) | 86% (24 V) | 87% (24 V) | 90% (24 V) | |
Input | Rated Input Voltage | 100 to 240 VAC | |||
Allowable range | 85 to 264 VAC | ||||
Output | Voltage adjustment range (with V.ADJ) | ±10% | |||
Input variation influence | 0.5% max. (at 85 to 264 VAC input, 100% load) | ||||
Load variation Influence | 2.0% max. (5 V), 1.5% max. (12, 24, 36, 48 V), at 0 to 100% load | ||||
Temperature variation influence | 0.05%/°C max. | ||||
Overload protection | Yes, 105 to 160% of rated current | ||||
Power Boost | 150% of rated current (5 V of 50 W, 12 V) | ||||
Overvoltage protection | Yes | ||||
Operating ambient temperature | −10 to 70°C (14 to 158°F) | ||||
EMI | Conforms to EN 61204-3, EN55011 Class B | ||||
EMS | Conforms to EN 61204-3 high severity levels | ||||
Harmonic current emissions | Conforms to EN 61000-3-2 | ||||
Approved Standards | UL: UR 60950-1, cUR: CSA C22.2 No.60950-1, | ||||
