OMRONPower supplies S8VMS8AS-24006 S8AS0007M S8AS24006,1 OMRON Source+Protector multicircuito 240W/24V/10A 6circuitos

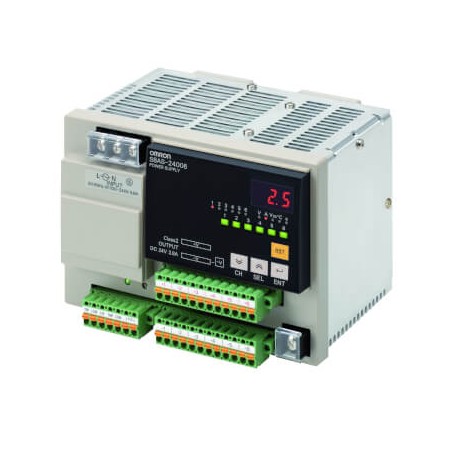

OMRON S8AS-24006 S8AS0007M S8AS24006.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

S8AS-24006 S8AS0007M S8AS24006,1 OMRON Source+Protector multicircuito 240W/24V/10A 6circuitos

Reference: S8AS-24006

Code: S8AS0007M

Catalog Number: S8AS24006.1

Manufacturer: OMRON

Description:

Source+Protector multicircuito 240W/24V/10A 6circuitos
Power supply, 240W, 24VDC, 6 branch output

Categories:

  • Low-voltage industrial components > DC-power supply
  • OMRON > Power supplies > S8VM

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.149,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output240 WRated output current10 AFeaturesUL class 2Terminal typePush-in, ScrewCommunication port(s)NoneAlarm function-Number of output branches6Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VProduct Width (unpacked)160 mmProduct Height (unpacked)119.5 mmProduct Depth (unpacked)131.8 mmEfficiency80 %Temperature range-10-60 °C

ETIM for 356597 Low-voltage industrial controls and switchgear (EC002540)

Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueScrew-/spring clamp connection
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueAC
Feature nameWall mounting possible (EF003973)
Feature valueNo
Feature nameStabilized (EF005302)
Feature valueYes
Feature nameOutput voltage stabilized (EF003092)
Feature valueYes
Feature nameSecondary voltage adjustable (EF007002)
Feature valueYes
Feature nameDirect mounting possible (EF005689)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameShort-circuit-proof (EF007332)
Feature valueYes
Feature nameModular version (EF001126)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature namePower consumption (EF000346)
Feature value460 VA
Feature nameMax. output current 1 (EF008284)
Feature value3.8 A
Feature nameMax. output current 3 (EF008286)
Feature value3.8 A
Feature nameMax. output current 2 (EF008285)
Feature value3.8 A
Feature nameBuilt-in height (EF000332)
Feature value115 mm
Feature nameBuilt-in width (EF000846)
Feature value160.000 mm
Feature nameWidth in number of modular spacings (EF002950)
Feature value9.2
Feature nameNominal value output voltage 1 (EF009393)
Feature value24 V
Feature nameWidth (EF000008)
Feature value160 mm
Feature nameNominal value output voltage 3 (EF009395)
Feature value24 V
Feature nameNominal value output current 2 (EF009397)
Feature value1.6 A
Feature nameHeight (EF000040)
Feature value115 mm
Feature nameNominal value output current 3 (EF009398)
Feature value1.6 A
Feature namePower output (EF003034)
Feature value240 W
Feature nameNominal value output current 1 (EF009396)
Feature value1.6 A
Feature nameDepth (EF000049)
Feature value131.8 mm
Feature nameNominal value output voltage 2 (EF009394)
Feature value24 V
Feature nameRated supply voltage AC 50 Hz (EF007076)
Feature value100 V
Feature name2nd secondary output voltage (EF006797)
Feature value21.6 V
Feature nameRated supply voltage AC 60 Hz (EF007077)
Feature value100 V
Feature name1st secondary output voltage (EF006792)
Feature value21.6 V
Feature name3rd secondary output voltage (EF006800)
Feature value21.6 V
