OMRONEncodersACCESSORIES ENCODERSE69-DF20 E69 1107H E69DF20,1 OMRON Extension Cable 20m All

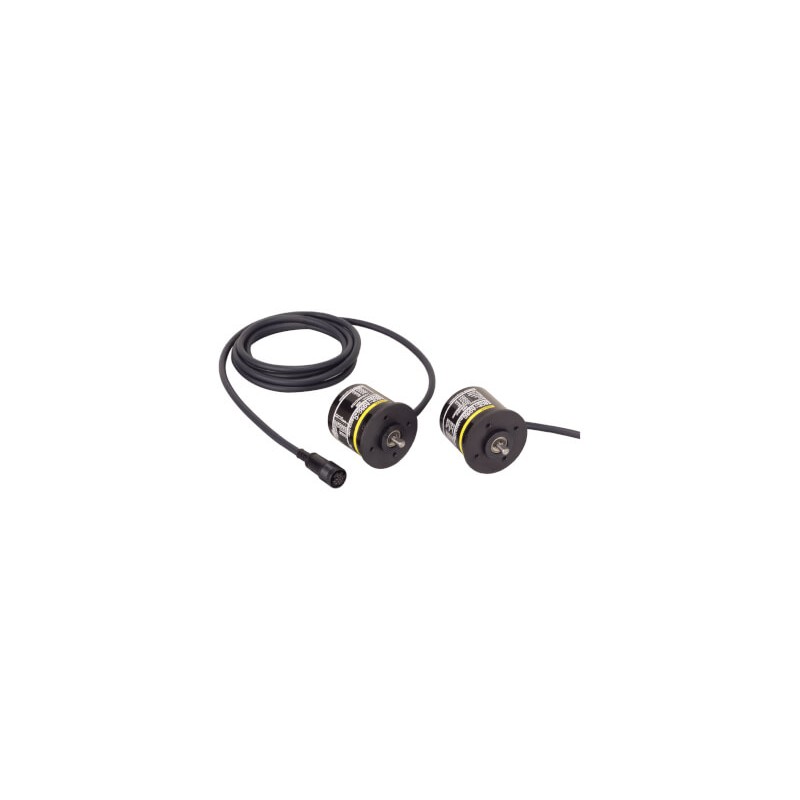

OMRON E69-DF20 E69 1107H E69DF20.1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

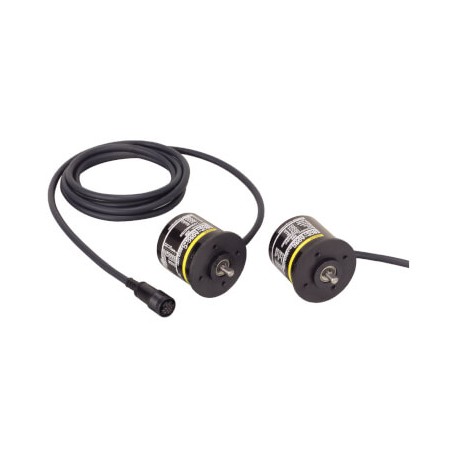

E69-DF20 E69 1107H E69DF20,1 OMRON Extension Cable 20m All

Reference: E69-DF20

Code: E69 1107H

Catalog Number: E69DF20.1

Manufacturer: OMRON

Description:

Extension Cable 20m All
Extension cable for E6C2-A/E6C3-A/E6CP/E6F encoders, 20 m

Categories:

  • Sensors > Sensor-actuator patch cord
  • OMRON > Encoders > Accessories Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 387,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Features

E6CP-A

Low-cost Encoder with Diameter of 50 mm

  • Absolute model
  • External diameter of 50 mm
  • Resolution: 256 (8-bit)
  • Lightweight construction using plastic body

Ordering information

Encoders

Power supply voltage

Output configuration

Resolution (divisions)

Connector for H8PS Cam Positioner

Order code

5 to 12 VDC

Open-collector output

256 (8-bit)

None

E6CP-AG3C 256P/R 2M

12 to 24 VDC

E6CP-AG5C 256P/R 2M

Supported

E6CP-AG5C-C 256P/R 2M

Note:When connecting to the H8PS, use the E6CP-AG5C-C, which is connected using a connector. It cannot be used on other models.

Accessories (Order Separately)

Name

Remarks

Order code

Couplings

Provided with the E6CP-AG3C and E6CP-AG5C.

E69-C06B

Different end diameter

E69-C68B

Different end diameter

E69-C610B

Metal construction

E69-C06M

Servo Mounting Bracket

Provided with the product. (Three brackets in a set.)

E69-2

Extension Cable

5 m

Models are also available with 15-m and 98-m cables.

E69-DF5

10 m

E69-DF10

20 m

E69-DF20

Specifications

ItemModel

E6CP-AG3C

E6CP-AG5C

E6CP-AG5C-C

Power supply voltage

5 VDC −5% to 12 VDC +10%, ripple (p-p): 5% max.

12 VDC −10% to 24 VDC +15%, ripple (p-p): 5% max.

Current consumption1

90 mA max.

70 mA max.

Resolution (rotations)

256 (8-bit)

Output code

Gray code

Output configuration

Open-collector output

Output capacity

Applied voltage: 28 VDC max.

Sink current: 16 mA max.

Residual voltage: 0.4 V max. (at sink current of 16 mA)

Maximum response frequency2

5 kHz

Logic

Negative logic (high = 0, low = 1)

Accuracy

±1° max.

Direction of rotation

Output code incremented by CW (as viewed from the end of the shaft)

Rise and fall times of
output

1 μs max. (Control output voltage: 16 V, Load resistance: 1 kΩ, Output cable: 2 m max.)

Starting torque

0.98 mN·m max.

Moment of inertia

1 × 10−6 kg·m2 max.

Shaft loading

Radial

29.4 N

Thrust

19.6 N

Maximum permissible speed

1,000 r/min

Ambient temperature range

Operating: −10 to 55°C (with no icing), Storage: −25 to 85°C (with no icing)

Ambient humidity range

Operating/Storage: 35% to 85% (with no condensation)

Insulation resistance

200 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength

500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions

Degree of protection3

IEC 60529 IP50

Connection method

Pre-wired Models (Standard cable length: 2 m)

Connector Models (Standard cable length: 2 m)

Material

Case: ABS, Main unit: PPS, Shaft: SUS416, Mounting Bracket: Galvanized iron

Weight (packed state)

Approx. 200 g

Accessories

Coupling (excluding Connector Models), Servo Mounting Bracket,

Hexagonal wrench (excluding Connector Models), Instruction manual

1.An inrush current of approximately 8 A will flow for approximately 0.3 ms when the power is turned ON.

2.The maximum electrical response speed is determined by the resolution and maximum response frequency as follows:


This means that the Rotary Encoder will not operate electrically if its speed exceeds the maximum electrical response speed.

3.No protection is provided against water or oil.

ETIM for 357361 Sensors (EC001855)

Feature nameType of electrical connection, field-sided (EF005525)
Feature valueOther
Feature nameCable type (EF000081)
Feature valueMulti-core
Feature nameColour cable sheath (EF008249)
Feature valueBlack
Feature nameDegree of protection (IP) (EF005474)
Feature valueOther
Feature nameType of plug-in contact, field sided (EF006269)
Feature valueMale (plug)
Feature namePositioning cable feed, field-sided (EF005928)
Feature valueStraight
Feature nameMaterial of contact surface (EF004020)
Feature valueGold
Feature nameMaterial contact body (EF008248)
Feature valueOther
Feature nameType of plug-in contact, box-sided (EF008386)
Feature valueFemale (bus)
Feature namePositioning cable feed, box-sided (EF005927)
Feature valueStraight
Feature nameMaterial of cable sheath (EF004136)
Feature valuePolyvinyl chloride (PVC)
Feature nameType of electrical connection, box-sided (EF005524)
Feature valueOther
Feature nameScreened (EF000881)
Feature valueYes
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameWith LED indication (EF005950)
Feature valueNo
Feature nameContinuity resistance (EF003992)
Feature value1750 mOhm
Feature nameRated voltage (EF000228)
Feature value140 V
Feature nameCable length (EF000536)
Feature value20 m
Feature nameRated current In (EF008250)
Feature value2 A
Feature nameNumber of poles (EF001391)
Feature value12
Feature namePermitted cable outer temperature after assembling without vibration (EF001686)
Feature value-10 °C
Feature namePermitted cable outer temperature during assembling/handling (EF001685)
Feature value-10 °C
