- SPST-NO or DPST-NO contact types
- Quick connect, PCB or screw terminals
- 20, 25 or 30A rated load
- Compatible with momentary voltage drops
- Wide range of applications with 100 or 200V coils
Specifications & ordering info
Ordering information
Contact form | Mounting | Terminals | Order code1 (___ = Coil Voltage + AC/DC) | Common Coil Voltages2 |
---|
PCB | DIN-rail front connecting socket | DIN Rail adaptor | Flange (screw) | E-bracket mounting | PCB | Quick-connect | Screw | DC | AC |
---|
SPST-NO | no | yes | yes | no | yes | no | yes | no | G7L-1A-T___ | 24 | 100/120, 200/240 |
DPST-NO | G7L-2A-T___ | 12, 24 | 24, 100/120, 200/240 |
SPST-NO | no | no | yes | no | G7L-1A-TUB___ | − | 100/120, 200/240 |
DPST-NO | G7L-2A-TUB___ | 24 | 24, 200/240 |
no | yes | G7L-2A-BUB___ | − | 200/240 |
yes | no | yes | no | G7L-2A-P___ | 24 | − |
Accessories
For type | Order code |
---|
DIN-rail front connecting socket | DIN Rail adaptor | E-Bracket mounting | Coverplate electric shock protection |
---|

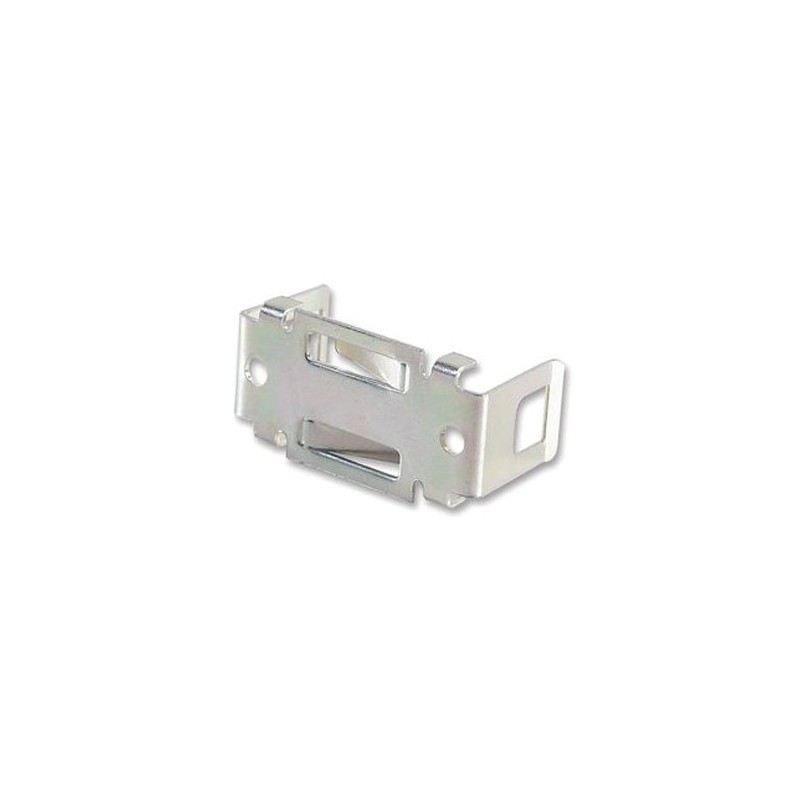

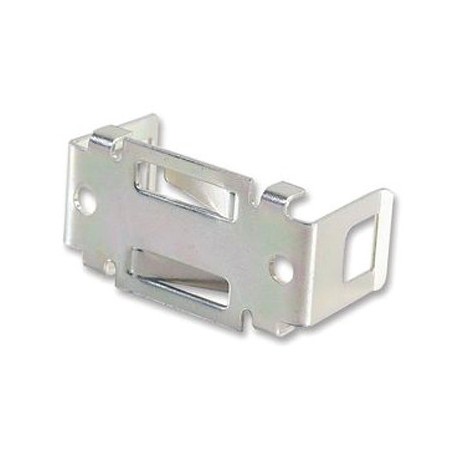

G7L Screw terminal type | − | P7LF-D | R99-07G7L | P7LF-C |
G7L Quick Connect type | P7LF-06 | P7LF-D | R99-07G7L | − |
Specifications
Coil Ratings
Rated voltage | Rated current | Coil resistance | Must operate voltage | Must release voltage | Max. voltage | Power consumption (approx.) |
---|
AC (~) | 12 V | 142 mA | − | 75% max.of rated voltage | 15% min. of rated voltage | 110% of rated voltage | 1.7 to 2.5 VA (60 Hz) |
24 V | 71 mA | − |
50 V | 34 mA | − |
100 to 120 V | 17.0 to 20.4 mA | − | 74 V | 18 V | 132 V |
200 to 240 V | 8.5 to 10.2 mA | − | 150 V | 36 V | 264 V |
DC (=) | 6 V | 317 mA | 18.9 Ohm | 75% max. of rated voltage | 15% min. of rated voltage | 110% of rated voltage | 1.9 W |
12 V | 158 mA | 75 Ohm |
24 V | 79 mA | 303 Ohm |
48 V | 40 mA | 1220 Ohm |
100 V | 19 mA | 5260 Ohm |
- Note 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%/20% for AC rated current and ±15% for DC coil resistance.
- 2. Performance characteristic data are measured at a coil temperature of 23°C.
- 3. ~ indicates AC and = indicates DC (IEC417 publications).
Contact Ratings
Model | G7L-1A-TJ/G7L-1A-BJ | G7L-2A-TJ/G7L-2A-BJ | G7L-1A-P/G7L-2A-P |
---|
Resistive load (cos φ = 1) | Inductive load (cos φ = 0.4) | Resistive load (cos φ = 1) | Inductive load (cos φ = 4.4) | Resistive load (cos φ = 1) | Inductive load (cos φ = 4.4) |
---|
Rated load | 30 A, 220 VAC (~) | 25 A, 220 VAX (~) | 25 A, 220 VAC (~) | 20 A, 220 VAC (~) |
Rated carry current | 30 A | 25 A | 20 A |
Max. switching voltage | 250 VAC (~) |
Max. switching current | 30 A | 25 A | 20 A |
Max. switching power | 6,600 VAC (~) | 5,500 VAC (~) | 5,500 VAC (~) | 4,400 VAC (~) |
Failure rate3(reference value) | 100 mA, 5 VDC (=) |
1.For other options like bifurcated contacts, please see specifications.
2.Other coil voltages available. Please see specifications.
3.P level: λ60 = 0.1×10
-6/operation
