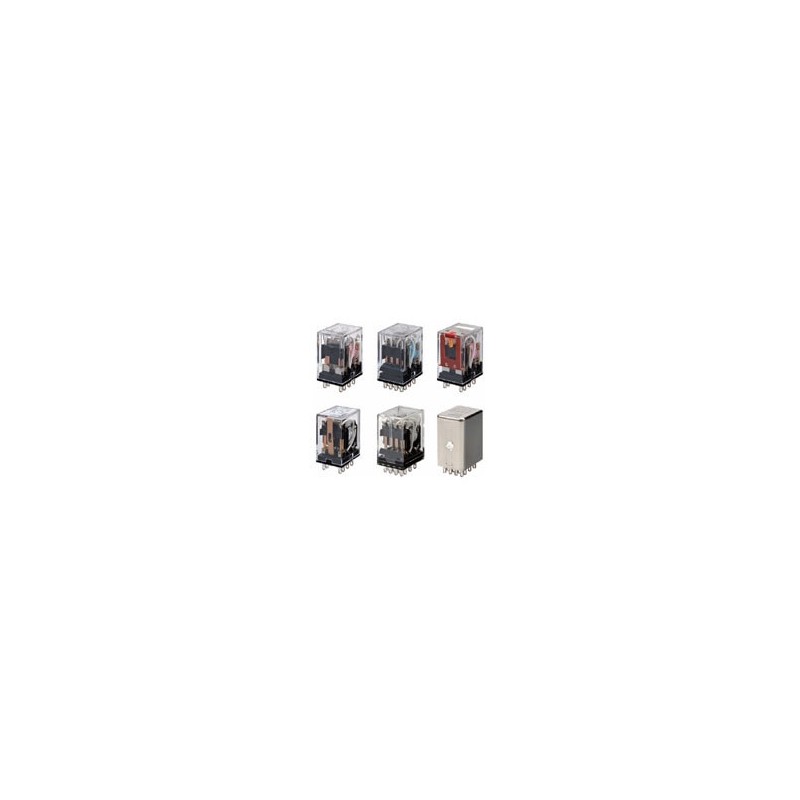

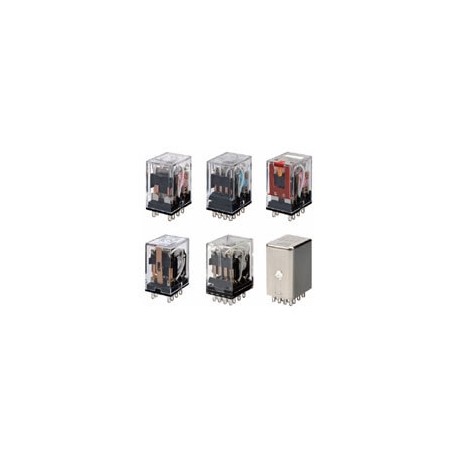

PY11-02 PY 1277C PY1102 OMRON Basis MY 11-pin Terminals PCB

Versatile plug-in relay that sets the standard

• Over 1 billion pieces of this mini power relay have been manufactured since its introduction and have successfully been used in many different applications. Bifurcated contacts are optionally available to achieve reliable low current switching during the entire electrical life. Full range of sockets covering mounting by screw, box clamp and screw-less clamp method.
• The MY-S models which include LED and Test button has become the most sold product thanks to the visible indicator and the easy to use test function
• MY-S family includes MY4Z models with bifurcated contacts for minute loads
• MY-S is common among the Building automation industry often choose by the customer as the preferred relay for Climate control applications/HVAC and lift

Magnetic latching relay ideal for memory- and data-transmission circuits

• MYK Magnetic latching relays that retains contact operation status and  with low power consumption
• Double-winding latch system that holds residual magnetism. The special magnetic materials make changes due to aging negligible, thus ensuring long continuous holding time. There is little change in characteristics such as contact follow, contact pressure, etc. throughout its long life.
• Excellent vibration/shock resistance
• Built-in operation indicator ensures easy ON/OFF operation monitoring
• MY2K is  also used in panels dedicated to Wind Energy Application

Sealed relays that are tough in environments where dust or corrosive gases, etc., are present

• In dust-producing environments such as where molding machines and grinders are present and in application environments in which small insects (such as gnat or mosquitos) are present, these foreign substances can penetrate into the relay, through gaps between parts of the relay and the relay's ventilation holes. Once inside the relay, dust and insects often remain inside. If they adhere to the contacts, the result can be problems such as contact failure and unstable contacts.Plastic sealed relays (MYQ) and hermetically sealed relays (MYH)  are resistant to effects from the surrounding environment
• Suggested also for environments where corrosive gases such as chloride gas, sulfuric gas, and silicone gas are generated
• They are also resistant to environments where salt damage is occurred and where dust is generated.
• Prevent relay contact failures via a highly airtight structure

• MY-GS the last addition to MY family: produced by a complete automated factory
• Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).
• The Printing on the coil tape indicates the operating coil specification
• Mechanical operation indicators are a standard feature on all models
• RoHS complaint, UL, CSA, and IEC (VDE certification).
• Mechanical indicators are a standard feature on all models to easily check the contact status.
• MY-GS is suitable for application which need a reliable relay, the standard model is frequently seen in packaging machine for the food and beverage industry
