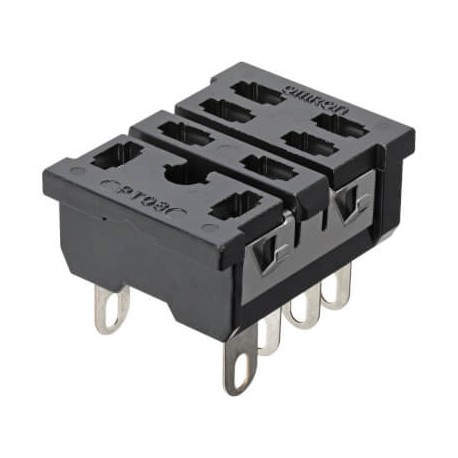

OMRON PT08-0 PT 1015M PT080 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PT08-0 PT 1015M PT080 OMRON Base LY 8-pin 10A Terminals PCB

Reference: PT08-0

Code: PT 1015M

Catalog Number: PT080

Manufacturer: OMRON

Description:

Base LY 8-pin 10A Terminals PCB
Socket, back-connecting, 8-pin, PCB terminals

Categories:

  • Relays > Relay socket
  • OMRON > Relay sockets > Other sockets

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Applicable product familyG3H, LY1, LY2Mounting methodPCBTerminal typePush-in PlusProduct Width (unpacked)22 mmProduct Height (unpacked)12 mmProduct Depth (unpacked)27 mmColorBlackRelease Lever included

ETIM for 113369 Relays (EC001456)

Feature nameMounting method (EF000003)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valuePCB connection
Feature nameFunction extension possible (EF003444)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of pins (EF005580)
Feature value8
Feature nameWidth (EF000008)
Feature value22 mm
Feature nameHeight (EF000040)
Feature value12 mm
Feature nameDepth (EF000049)
Feature value27 mm

DATASHEET - PDF
