OMRONRelay socketsOTHER SOCKETSPL08 PL 1000A OMRON Circular with wings 8-pin

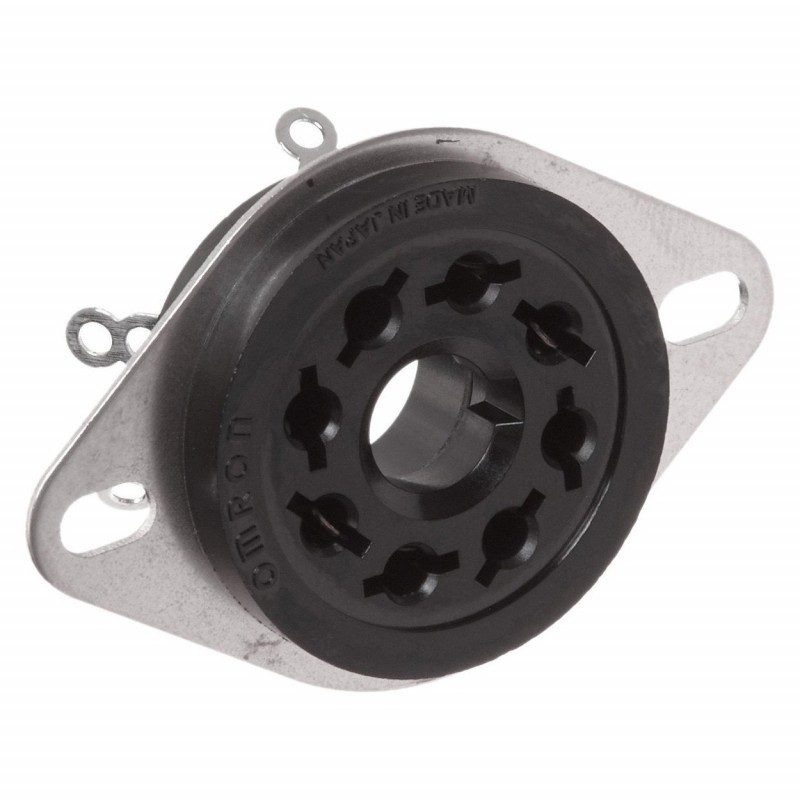

OMRON PL08 PL 1000A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PL08 PL 1000A OMRON Circular with wings 8-pin

Reference: PL08

Code: PL 1000A

Manufacturer: OMRON

Description:

Circular with wings 8-pin
Circular with 8-pin wings
Socket, back-connecting, 8-pin, solder terminals

Categories:

  • Relays > Relay socket
  • OMRON > Relay sockets > Other sockets

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • 8-pin DPDT and 11-pin 3PDT contact types
  • Switching current up to 10 A
  • Lockable test button for easy testing
  • Temperature rating from -40C up to 60C

ETIM for 113440 Relays (EC001456)

Feature nameMounting method (EF000003)
Feature valueOther
Feature nameType of electric connection (EF003961)
Feature valueClip connection
Feature nameFunction extension possible (EF003444)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of pins (EF005580)
Feature value8
Feature nameWidth (EF000008)
Feature value34 mm
Feature nameHeight (EF000040)
Feature value17 mm
Feature nameDepth (EF000049)
Feature value44 mm

DATASHEET - PDF

Title
Size
Type
PL08 PL08 PL 1000A EN_PL08.pdf
502 Kbytes
PL08 PL08 PL 1000A f043_61f_gp_n8_conductive_level_controller_datasheet_en.pdf
160 Kbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
