OMRONRelay socketsPFPF083A PF 1236M OMRON Rectangular Base 8-pin

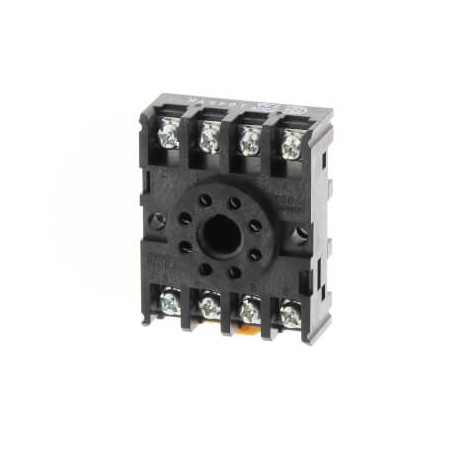

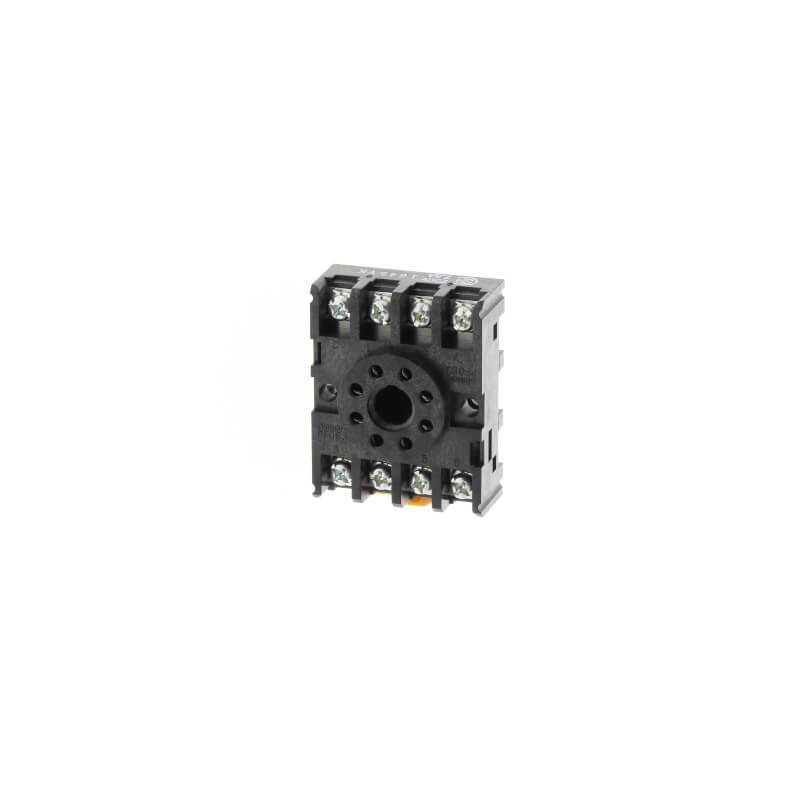

OMRON PF083A PF 1236M - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PF083A PF 1236M OMRON Rectangular Base 8-pin

Reference: PF083A

Code: PF 1236M

Manufacturer: OMRON

Description:

Rectangular Base 8-pin
Socket, DIN rail/surface mounting, 8-pin, screw terminals (standard)
Socket, DIN rail/surface mounting, 8-pin, screw terminals (VDE)

Categories:

  • Relays > Relay socket
  • OMRON > Relay sockets > PF

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Applicable product family61F, G3B, MKSMounting methodDIN railTerminal typeScrewProduct Width (unpacked)41 mmProduct Height (unpacked)56 mmProduct Depth (unpacked)21 mmColorBlackHold down clip includedRelease Lever included

ETIM for 113519 Relays (EC001456)

Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameFunction extension possible (EF003444)
Feature valueNo
Feature nameWith detachable clamps (EF003340)
Feature valueNo
Feature nameNumber of pins (EF005580)
Feature value8
Feature nameWidth (EF000008)
Feature value41 mm
Feature nameHeight (EF000040)
Feature value52 mm
Feature nameDepth (EF000049)
Feature value21 mm

DATASHEET - PDF

Title
Size
Type
PF083A PF083A PF 1236M EN_PF083A.pdf
413 Kbytes
PF083A PF083A PF 1236M f043_61f_gp_n8_conductive_level_controller_datasheet_en.pdf
160 Kbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
