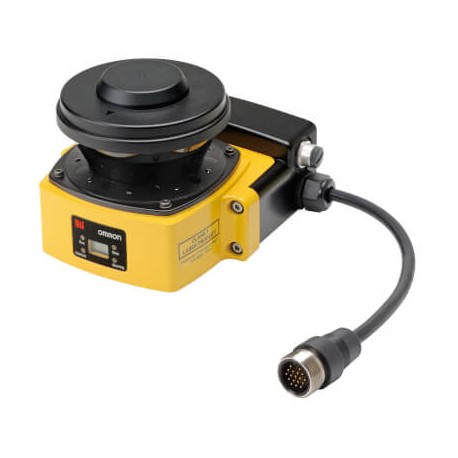

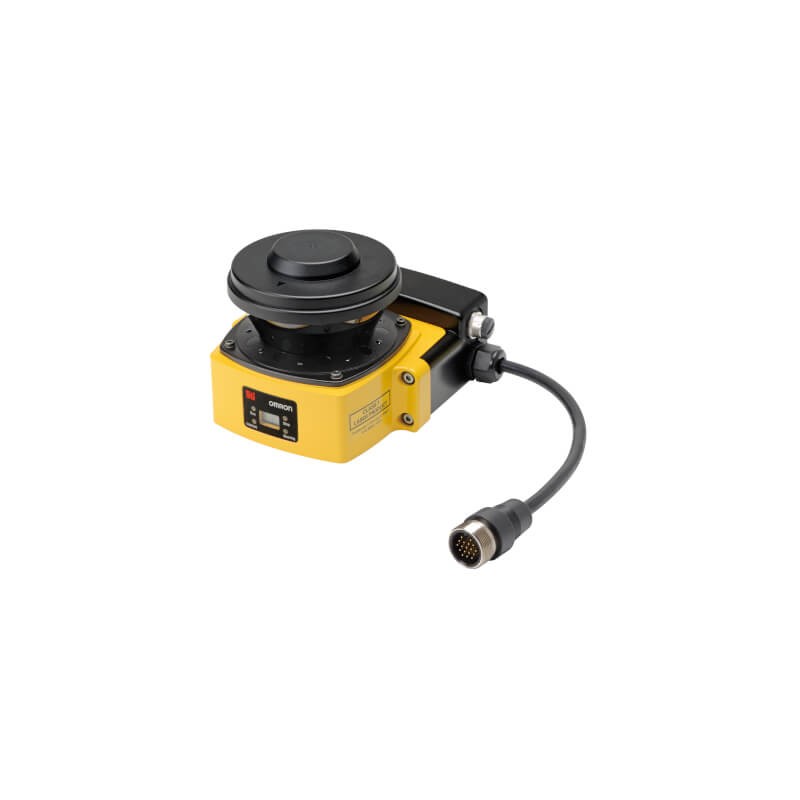

OS32C-SP1 VER2 OS326022D OS32CSP1VER2 OMRON Scanner laser safety 3m/10m Cable side
OS32C-SP1 VER2
OS326022D
OS32CSP1VER2
OMRON
Scanner laser safety 3m/10m Cable side
Safety laser scanner, safety radius 3 m, warning zone 10 m, PLd & Cat 3 (ISO 13849-1), Ethernet, 24 VDC, side location cable exit
Sensors > Laser scanner
Safety > OS32C
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Type of switching output of the OSSD (EF003959) | PNP |
| Laser protection class (EF004027) | Class 1 |
| Type of safety according to IEC 61496-1 (EF004105) | 3 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Cable with connector |
| Operation agent-safety class (EF003982) | Safety class 3 |
| With configurable message output (EF004018) | Yes |
| With monitoring function downstream switching devices (EF004052) | No |
| Suitable for safety functions (EF001597) | Yes |
| With alert field output (EF004131) | Yes |
| With restart blockage (EF004054) | Yes |
| Max. output current at protected output (EF004035) | 250 mA |
| Number of safety fields (EF003950) | 140 |
| Scanning interval (EF003936) | 0.4 Hz |
| Number of semiconductor outputs with signalling function (EF003945) | 2 |
| Wavelength of the sensor (EF004132) | 905 nm |
| Detection capability for test bodies (EF003991) | 70 mm |
| Response time (EF004094) | 80 ms |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Transmission range of the measuring range (EF004097) | 10 m |
| Transmission range of the safety field (EF004098) | 3 m |
| Switching voltage of OSSD at state "high" (EF004102) | 2 V |
| Width sensor (EF007094) | 105 mm |
| Scan angle (EF004101) | 270 ° |
| Height of sensor (EF007283) | 105 mm |
| Transmission range of the alert field (EF004099) | 10 m |
| Length of sensor (EF007334) | 143 mm |
| Rated control supply voltage DC (EF003980) | 16.8 V |
| Ambient temperature (EF002386) | -10 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| OS32C-SP1 VER2 OS32CSP1VER2 OS326022D EN_OS32C-SP1-VER2.pdf | 863 Kbytes |
|
