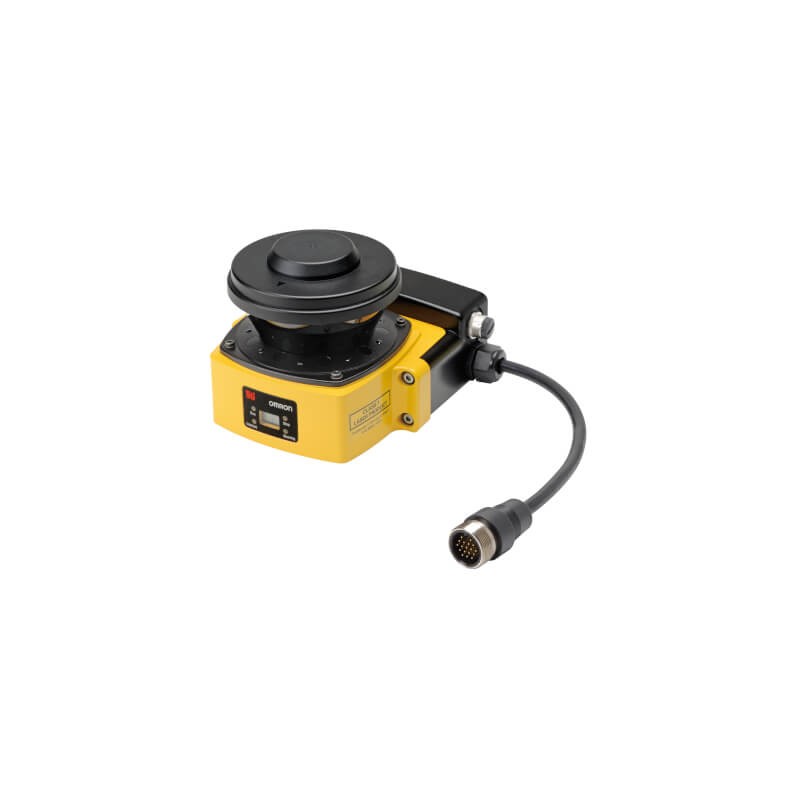

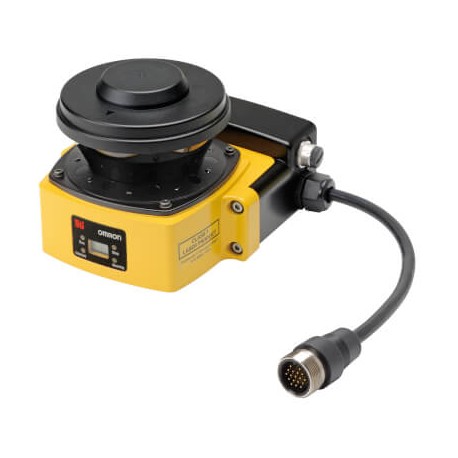

OS32C-SP1-4M OS326103D 674729 OMRON Safety Laser Scanner 4m/15m Side Cable
OS32C-SP1-4M
OS326103D
OS32CSP14M
OMRON
Scanner laser safety 4m/15m Cable side
Safety laser scanner, safety radius 4m, warning zone 15 m, PLd & Cat 3, 24 VDC, side location cable exit
Safety > OS32C
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type of safety according to IEC 61496-1 | 3 |
| Maximum safety range | 4 m |
| Maximum warning range | 15 m |
| Cable entry direction | Side |
| Type of switching output of the OSSD | PNP |
| Type of electric connection | Connector M12 |
| Key features | Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring |
| Type of protection | Hand protection |
| Detection capability | 70 mm |
| Suitable for safety functions | |
| Scan angle | 270 ° |
| Scanning interval | 0.4 Hz |
| Response time | 80 ms |
| Number of safety fields | 140 |
| Wavelength of the sensor | 905 nm |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 2 |
| Operation agent-safety class | Safety class 3 |
| Laser protection class | Class 1 |
| Supply voltage DC | 16.8-30 V |
| Voltage type | DC |
| Max. output current at protected output | 250 mA |
| Degree of protection (IP) | IP65 |
| With alert field output | |
| Ambient temperature | -10-50 °C |
| Overall length | 143 mm |
| Height of sensor | 105 mm |
| Width sensor | 105 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON EN.pdf | 24 Mbytes |
|
| OS32C-SP1-4M OS32CSP14M OS326103D EN_OS32C-BP-DM-4M.pdf | 863 Kbytes |
|
