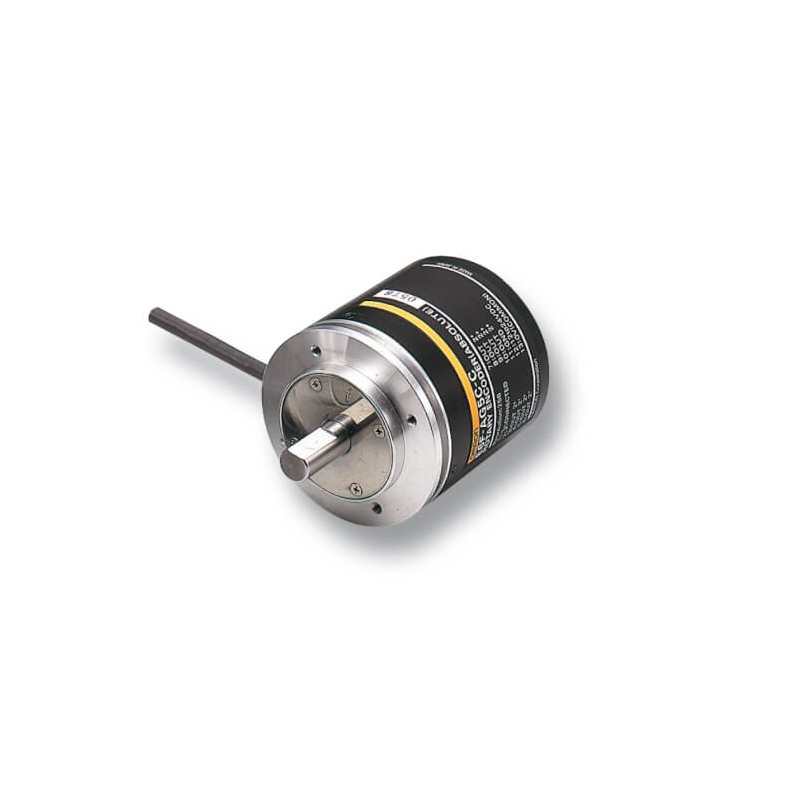

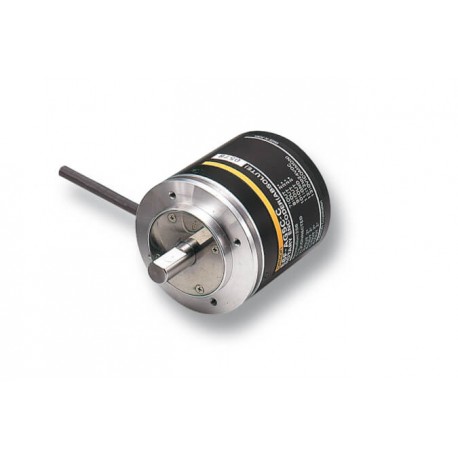

E6F-AG5B 1024 2M E6F 1027E E6FAG5B10242M OMRON All 1024ppr Gray PNP 12-24vdc, Cable 2m
E6F-AG5B 1024 2M
E6F 1027E
E6FAG5B10242M
OMRON
All 1024ppr Gray PNP 12-24vdc, Cable 2m
Absolute 1024ppr Gray PNP 12-24Vdc Cable 2m
Encoder, absolute, 1024ppr, 8-bit, 12-24 VDC, gray code output, 2m cable
Sensors > Rotary encoder
Encoders > E6F
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Stronger shaft and higher durability (120 N in radial direction and 50 N in thrust direction) than previous E6F Encoders
- Drip-proof construction meets IP64F standards
- High-resolution models (1024 pulses max. per revolution)
- Faster response for high-speed control applications (grey code: 20 kHz)
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Physical measurement principle (EF008238) | Optic |
| Degree of protection (IP) (EF005474) | IP65 |
| Standard for interfaces (EF004017) | Other |
| Model (EF000010) | Absolute encoder |
| Signal outputs of rotary encoder (EF003590) | Other |
| Type of transmission medium (EF007513) | Other |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Aluminium |
| Explosion safety category for gas (EF003997) | None |
| Type of shaft encoder (EF006968) | Full shaft |
| Programmable (EF000841) | No |
| Max. pulses per revolution (EF003589) | 1024 |
| Construction size (EF012282) | 60 mm |
| Diameter axle (EF007110) | 9 mm |
| Impulse rate per cycle (EF007289) | 20000 |
| Number of steps per revolution (EF006938) | 1024 |
| Number of revolutions (EF006943) | 5000 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E6F-AG5B 1024 2M E6FAG5B10242M E6F 1027E EN_E6F-AB5B 360 2M.pdf | 263 Kbytes |
|
