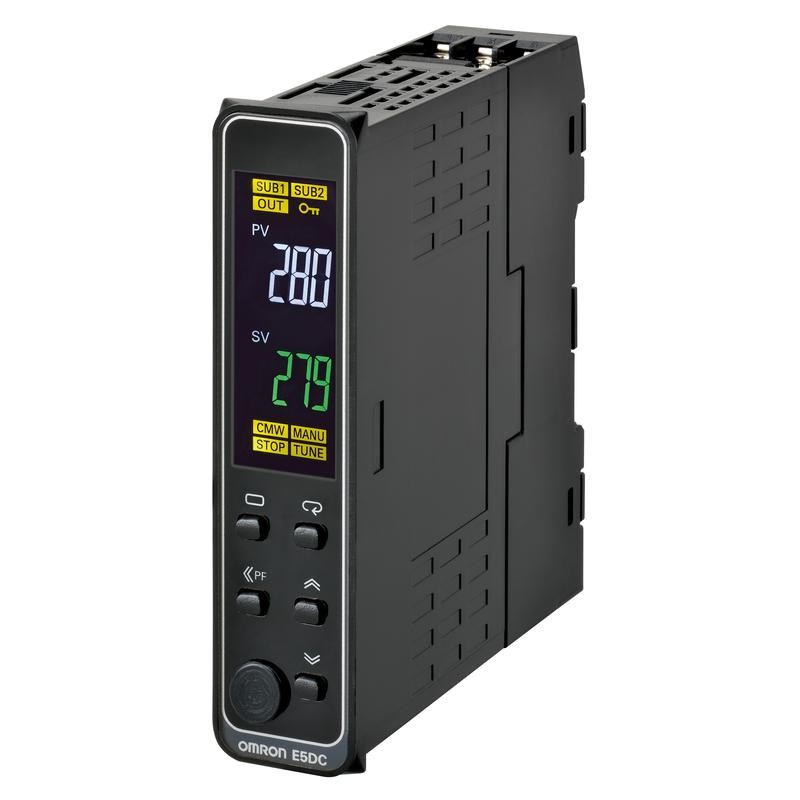

E5DC-RX2ASM-000 E5DC1000A 377921 OMRON Ent. Universal, Relay Output,2Aux,AC 100,240,22,5X96
E5DC-RX2ASM-000
E5DC1000A
E5DCRX2ASM000
OMRON
Ent. Universal output relay,2Aux,Ac 100,240,22,5X96
Temp. controller, PRO, DIN Rail 22,5mm, Uni. I/P,1 x Rel. OUT,2 AUX,No cov.,100-240 VAC
Relays > Temperature monitoring relay
Temperature and Processes > E5_C
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Size | 22.5 mm |
| Functions | PID control |
| Number of control loops | 1 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Number of event inputs | 0 |
| Number of alarm outputs | 2 |
| Supply voltage AC | 100-240 V |
| Control output | Relay |
| Terminal | Screw |
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Width (EF000008) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 96 mm |
| Depth (EF000049) | 85 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| E5DC-RX2ASM-000 E5DCRX2ASM000 E5DC1000A panel_building_brochure_en.pdf | 3 Mbytes |
|
