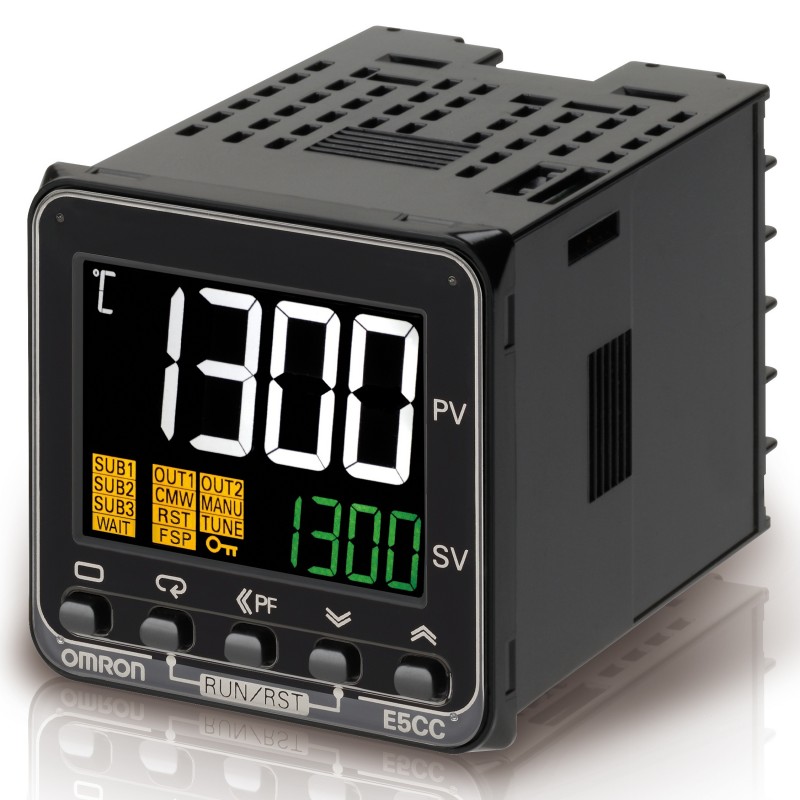

E5CC-TCX3D5M-006 385277 E5CC5535D OMRON Temperature and Process Ctrl.Temp, Ent.Univ, Sal.Corr, 3sal.aux, 2En..

E5CC-TCX3D5M-006

385277

E5CC5535D

OMRON

Available Ship on today

Temperature and Process Ctrl.Temp, Ent.Univ, Sal.Corr, 3sal.aux, 2Ent Evt, sal.tranf, 24Vdc / Vac, Screw, 48x48

More details


Temperature Sensors

E5_C

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Quantity Price
1+$344.59
2+$335.52
3+$333.89
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Ordering information

E5CC-T (48 × 48 mm)

Control Output

Option no

Option description

Alarm outputs

Order code

100 to 240 VAC

24 VAC/DC

Out1: Relay

Out2: non

000

No option

3

E5CC-TRX3A5M-000

E5CC-TRX3D5M-000

001

HB/HS alarm for 1-phase heaters, 2 EV inputs

3

E5CC-TRX3A5M-001

E5CC-TRX3D5M-001

003

HB/HS alarm for 3-phase heaters, RS485

3

E5CC-TRX3A5M-003

E5CC-TRX3D5M-003

006

2 EV inputs, transfer output

3

E5CC-TRX3A5M-006

E5CC-TRX3D5M-006

Out1: Voltage (pulse)

Out2: non

000

No option

3

E5CC-TQX3A5M-000

E5CC-TQX3D5M-000

001

HB/HS alarm for 1-phase heaters, 2 EV inputs

3

E5CC-TQX3A5M-001

E5CC-TQX3D5M-001

003

HB/HS alarm for 3-phase heaters, RS485

3

E5CC-TQX3A5M-003

E5CC-TQX3D5M-003

006

2 EV inputs, transfer output

3

E5CC-TQX3A5M-006

E5CC-TQX3D5M-006

Out1: Linear current

Out2: non

000

No option

3

E5CC-TCX3A5M-000

E5CC-TCX3D5M-000

004

RS485,2 EV inputs

3

E5CC-TCX3A5M-004

E5CC-TCX3D5M-004

006

2 EV inputs, transfer output

3

E5CC-TCX3A5M-006

E5CC-TCX3D5M-006

Note: Other models with 2 control outputs, 4 EV inputs or with different kind of option combination are available on request. Please contact the local sales office for special request.

E5EC-T (48 × 96 mm)/E5AC-T (96 × 96 mm)

Control Output

Option no

Option description

Alarm outputs

Order code

100 to 240 VAC

24 VAC/DC

Out1: Relay

Out2: non

000

No option

4

E5_C-TRX4A5M-000

E5_C-TRX4D5M-000

008

HB/HS alarm for 1-phase heaters, RS485, 2 EV inputs

4

E5_C-TRX4A5M-008

E5_C-TRX4D5M-008

019

HB/HS alarm for 1-phase heaters, 6 EV inputs, transfer output

4

E5_C-TRX4A5M-019

E5_C-TRX4D5M-019

Out1: Voltage (pulse)

Out2: non

000

No option

4

E5_C-TQX4A5M-000

E5_C-TQX4D5M-000

008

HB/HS alarm for 1-phase heaters, RS485, 2 EV inputs

4

E5_C-TQX4A5M-008

E5_C-TQX4D5M-008

019

HB/HS alarm for 1-phase heaters, 6 EV inputs, transfer output

4

E5_C-TQX4A5M-019

E5_C-TQX4D5M-019

Out1: Linear current

Out2: non

000

No option

4

E5_C-TCX4A5M-000

E5_C-TCX4D5M-000

004

RS485, 2 EV inputs

4

E5_C-TCX4A5M-004

E5_C-TCX4D5M-004

021

6 EV inputs, transfer output

4

E5_C-TCX4A5M-021

E5_C-TCX4D5M-021

022

RS485, 4 EV inputs, transfer output

4

E5_C-TCX4A5M-022

E5_C-TCX4D5M-022

Out1: Relay

Out2: Relay

Positional proportional control model

000

No option

4

E5_C-TPR4A5M-000

E5_C-TPR4D5M-000

004

RS485, 2 EV inputs

4

E5_C-TPR4A5M-004

E5_C-TPR4D5M-004

022

RS485, 4 EV inputs, transfer output

4

E5_C-TPR4A5M-022

E5_C-TPR4D5M-022

Note: Other models with 2 control outputs or with different kind of option combination are available on request. Please contact the local sales office for special request. Replace “_” with “A” for E5AC or “E” for E5EC

Specifications

E5CC-T/E5AC-T/E5EC-T



E5CC-T

E5EC-T

E5AC-T

Sizes in mm (W × H × D)

48×48×60

48×96×60

96×96×60

Supply voltage

100 to 240 VAC 50/60Hz or 24 VAC/VDC

Sensor input

Temperature input Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C Analog input Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V

Control mode

2-PID control (with auto-tuning) or ON/OFF control

Accuracy

Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. /Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater) ±1 digit max.Analog input: ±0.2% FS ±1 digit max.CT input: ±5% FS ±1 digit max.Potentiometer input: ±5% FS ±1 digit max.

Functions

Manual output, heating/cooling control, loop burnout alarm, other alarm functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100% AT, MV limiter, input digital filter, robust tuning, PV input shift, protection functions, extraction of square root, MV change rate limit, logic operations, temperature status display, moving average of input value, and display brightness setting

Programs / segments

8/32

PID sets

8

Communication

RS-485 (multi-drop), CompowayF or Modbus RTU

Event inputs

2-6

QLP (Quick link port)

Yes, via USB and E58-CIFQ2 conversion cable

Ambient temperature

-10 to 55 °C

IP rating of front panel

IP66

Sampling period time

50 ms

Program control

Number of programs (patterns)

8

Number of segments (steps)

32

Segment setting method

Time setting (Segment set with set point and time.)

Slope setting (Segment set with segment type, set point, slope, and time.)

Segment times

0 h 0 min to 99 h 59 min

0 min 0 s to 99 min 59 s

Alarm setting

Set separately for each program.

Reset operation

Select either stopping control or fixed SP operation.

Startup operation

Select continuing, resetting, manual operation, or run mode.

PID sets

Number of sets

8

Setting method

Set separately for each program (automatic PID group selection also supported).

Alarm SP function

Select from ramp SP and target SP.

Program status control

Segment operation

Advance, segment jump, hold, and wait

Program operation

Program repetitions and program links

Wait operation

Wait method

Waiting at segment ends

Wait width setting

Same wait width setting for all programs

Time signals

Number of outputs

2

Number of ON/OFF Operations

1 each per output

Setting method

Set separately for each program.

Program status output

Program end output (pulse width can be set), run output, stage output

Program startup operation

PV start

Select from segment 1 set point, slope-priority PV start

Standby

0 h 0 min to 99 h 59 min

0 day 0 h to 99 day 23h

Operation end operation

Select from resetting, continuing control at final set point, and fixed SP control.

Program SP shift

Same program SP shift for all programs

E5CC-T/E5AC-T/E5EC-T series optional tools

USB PC based configuration cable

E58-CIFQ2 for E5CC-T

E58-CIFQ2 (& E58-CIFQ2-E) for E5AC-T and E5EC-T

E5CC-T/E5AC-T/E5EC-T series software

CX-Thermo >4.62

Professional parameterization and cloning software, data-logging, Fine-Tuning, logic operations, easy setting of process steps

Operation system: Microsoft Windows XP (Service Pack 3 or higher)/Vista/7/8
