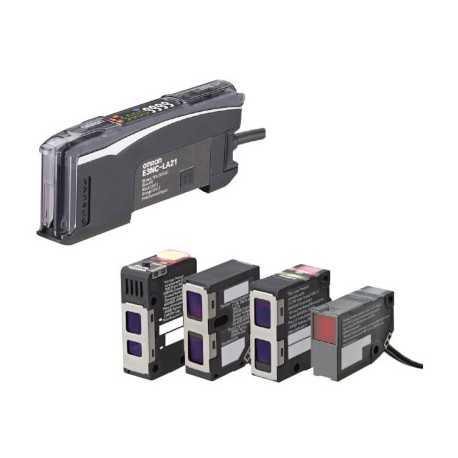

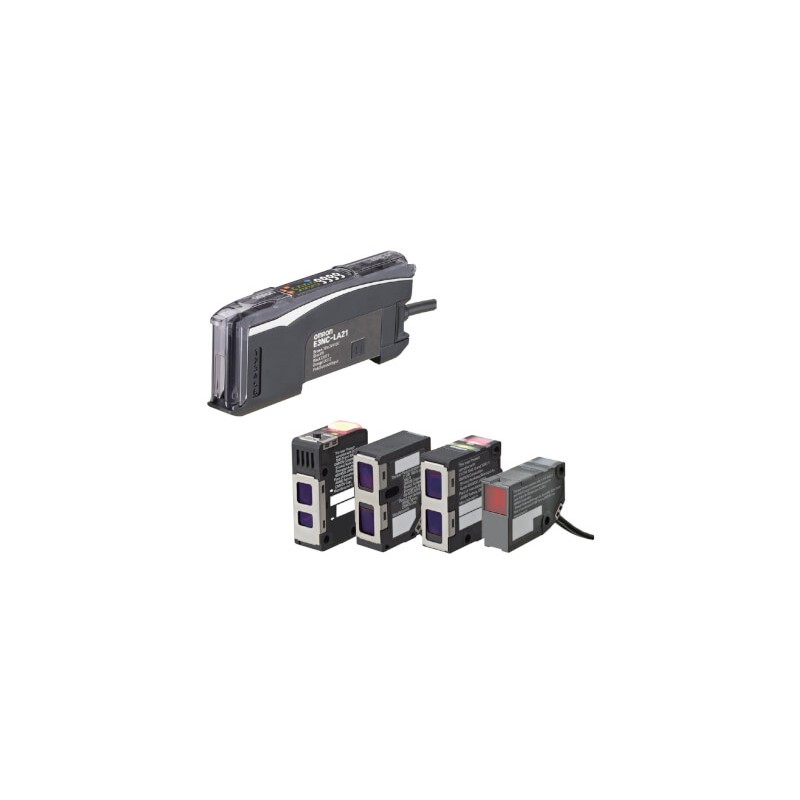

E3NC-SA0 375784 E3NC0005D OMRON Advanced Sensors, Communication Unit E3NC-S 2 outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

E3NC-SA0 375784 E3NC0005D OMRON Advanced Sensors, Communication Unit E3NC-S 2 outputs

E3NC-SA0

375784

E3NC0005D

OMRON

Available

Ship on today

Advanced Sensors, Communication Unit E3NC-S 2 outputs

More details


N-Smart

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Quantity Price
1+$243.33
2+$235.34
3+$231.51
4+$229.11
5+$227.86
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Ordering information

Sensor heads E3NC-L Sensor Series

Sensor type

Sensing distance

Remarks

Order code

Diffuse-reflective



1,200 mm

Variable spot (diffuse reflective)

E3NC-LH02 2M

70±15 mm

Fixed spot (limited reflective)

E3NC-LH01 2M

Coaxial retro-reflective

with M.S.R.



8 m

Fixed spot

E3NC-LH03 2M

Sensor heads E3NC-S CMOS Laser Sensor Series

Sensor type

Sensing distance

Laser class

Order code

Diffuse-reflective
(distance-settable)



35 to 100 mm

1

E3NC-SH100 2M

35 to 250 mm

1

E3NC-SH250 2M

35 to 250 mm

2

E3NC-SH250H 2M

Amplifier units E3NC-L Sensor Series

Item

Order code

pre-wired

with connector

M8 connector

NPN output

PNP output

NPN output

PNP output

NPN output

PNP output

2 outputs + 1 input models

E3NC-LA21 2M

E3NC-LA51 2M

-

-

1 output + 1 input models

-

E3NC-LA7

E3NC-LA9

E3NC-LA24

E3NC-LA54

Networking model

E3NC-LA0

Amplifier units E3NC-S CMOS Laser Sensor Series

Item

Order code

pre-wired

with connector

M8 connector

NPN output

PNP output

NPN output

PNP output

NPN output

PNP output

2 outputs + 1 input models

E3NC-SA21 2M

E3NC-SA51 2M

-

-

1 output + 1 input models

-

E3NC-SA7

E3NC-SA9

E3NC-SA24

E3NC-SA54

Networking model

E3NC-SA0

Amplifier connectors

Shape

Type

Comment

Order code

Amplifier connector

2 m PVC cable

E3X-CN21

30 cm PVC cable with M12 plug connector (4 pin)

E3X-CN21-M1J 0.3M

30 cm PVC cable with M8 plug connector (4 pin)

E3X-CN21-M3J-2 0.3M

Communication units

Shape

Communications method

Applicable Amplifier Units

Order code

Sensor communication unit for EtherCAT

E3NX-FA0

E3NC-LA0

E3NC-SA0

E3NW-ECT

Sensor dispersion (slave) unit

E3NW-DS

Reflectors

Type

Size

Applicable sensor

Order code



Micro-triple reflector

30 × 35 mm

E3NC-LH03

E39-R21



Micro-triple reflector

55 × 40 mm

E39-R22



Micro-triple reflector self-adhesive

25 × 25 mm

E39-RS10



Micro-triple reflector self-adhesive

50 × 50 mm

E39-RS11

Lens Attachments for Sensor Heads

Comment

Applicable sensor

Order code



Lens attachement to a create line beam

E3NC-LH03

E39-P51



Lens attachement to a create line beam

E3NC-LH02

E39-P52

Mounting Brackets for Sensor Heads

Type

Applicable sensor

Order code



L-shape mounting bracket

E3NC-LH03

E39-L190



L-shape mounting bracket

E3NC-LH02

E39-L185



L-shape mounting bracket

E3NC-LH01

E39-L186



L-shape mounting bracket

E3NC-SH250

E3NC-SH250

E3NC-SH100

E39-L187



L-shape mounting bracket

E39-L188

Specifications

Sensor heads E3NC-L Sensor Series

Item

Coaxial Retro-reflective (M.S.R.)

Diffuse-reflective

E3NC-LH03

E3NC-LH02

E3NC-LH01

Light source (emission wave length)

Red laser diode (660 nm), 315 μW max. (JIS Class 1, IEC/EN Class 1, and FDA Class 1)

Sensing distance

Giga-power mode (GIGA): 8 m

Standard mode (Stnd): 6 m

High-speed mode (HS): 3.5 m

Super-high-speed mode (SHS): 2 m

Giga-power mode (GIGA): 1,200 mm

Standard mode (Stnd): 750 mm

High-speed mode (HS): 250 mm

Super-high-speed mode (SHS): 200 mm

70±15 mm

Beam size (typical)

2 mm dia. (at 1 m)

0.8 mm max. (at distances up to 300 mm)

0.1 mm (at 70 mm)

Degree of protection

IP67

IP65

Amplifier units E3NC-L Sensor Series

Item



2 output/1 input models

1 output/1 input models

Networking models

NPN output

E3NC-LA21

E3NC-LA7/E3NC-LA24

E3NC-LA0

PNP output

E3NC-LA51

E3NC-LA9/E3NC-LA54

Outputs

2 outputs

1 output

-*

Inputs

1 input

-*

Supply voltage

10 to 30 VDC±10%, ripple (p-p) 10% max.

Response time

Super-high-speed mode

80 µs

High-speed mode

250 µs

Standard mode

1 ms

Giga-power mode

16 ms

Functions

Smart tuning

2-point tuning, full auto tuning, position tuning, maximum sensitivity tuning, power tuning, or percentage tuning
(−99% to 99%)

Timer function

Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms

Eco mode

Select from OFF (digital displays lit) or ECO (digital displays not lit)

Bank switching

Select from banks 1 to 4

Dynamic Power Control (DPC)

Provided (automatically controls light intensity and compensates incident level changes)

Ambient temperature range

Operating

−10 to 55°C

Storage

−25 to 70°C (with no icing or condensation)

Digital display

7-segment displays (sub digital display: green, main digital display: white)

Display direction: switchable between normal and reversed

Degree of protection

IP50 (IEC 60529)

* Two sensor outputs are allocated in the programmable logic controller PLC I/O table. PLC operation via Communications Unit enables reading detected values and changing settings.

Sensor heads E3NC-SH CMOS Laser Sensor series

Item



Diffuse-reflective (distance-settable)

E3NC-SH250H

E3NC-SH250

E3NC-SH100

Light source (emission wave length)

Red laser diode (660 nm), 1 mW
(average output: 220 μW),
(JIS Class 2, IEC/EN Class 2, and FDA Class 2)

Red laser diode (660 nm), 100 μW max. (JIS Class 1, IEC/EN Class 1, and FDA Class 1)

Measurement range

35 to 250 mm (display value: 350 to 2,500)

35 to 100 mm (display value: 350 to 1,000)

Spot diameter

1 mm (at 250 mm)

0.5 mm (at 100 mm)

Degree of protection

IEC60529 IP67

Amplifier units E3NC-SH CMOS Laser Sensor series

Item



2 output/1 input models

1 output/1 input models

Networking models

NPN output

E3NC-SA21

E3NC-SA7/E3NC-SA24

E3NC-SA0

PNP output

E3NC-SA51

E3NC-SA9/E3NC-SA54

Outputs

2 outputs

1 output

-*

Inputs

1 input

-*

Supply voltage

10 to 30 VDC±10%, ripple (p-p) 10% max.

Response time

Super-high-speed mode

1.5 ms

High-speed mode

5 ms

Standard mode

10 ms

Giga-power mode

50 ms

Functions

Smart tuning

2-point tuning, full auto tuning, 1-point tuning, tuning without workpiece, 2-point area tuning, 1-point area tuning,
or area tuning without workpiece

Timer function

Select from timer disabled, OFF-delay, ON-delay, one-shot, or ON-delay + OFF-delay timer: 1 to 9,999 ms

Bank switching

Select from banks 1 to 4

Ambient temperature range

Operating

−10 to 55°C

Storage

−25 to 70°C (with no icing or condensation)

Digital display

7-segment displays (sub digital display: green, main digital display: white)

Display direction: switchable between normal and reversed.

Degree of protection

IP50 (IEC 60529)

* Two sensor outputs are allocated in the programmable logic controller PLC I/O table. PLC operation via Communications Unit enables reading detected values and changing settings.




1.A Reflector is not included. Purchase a Reflector separately.

2.Order connector (E3X-CN21_) separately from accessories

3.For network connection please order networking unit E3NW

4.Order connector (E3X-CN21_) separately from accessories

5.For network connection please order networking unit E3NW
