OMRONSafetyD4DL/DS/DH/DR/GL/NL/NH/NSD4NL-4BFA-B D4NL0006C D4NL4BFAB OMRON Lock makan desert/Opening solen.24vdc 1NC/1NO+2NC M20

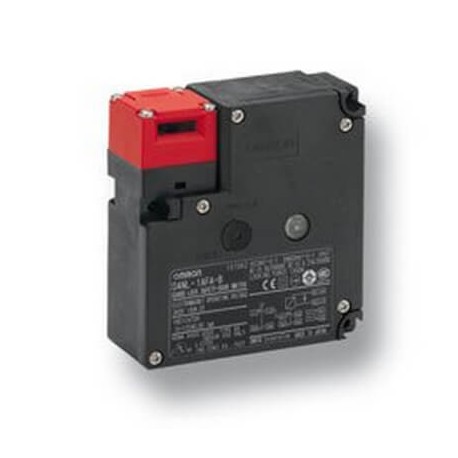

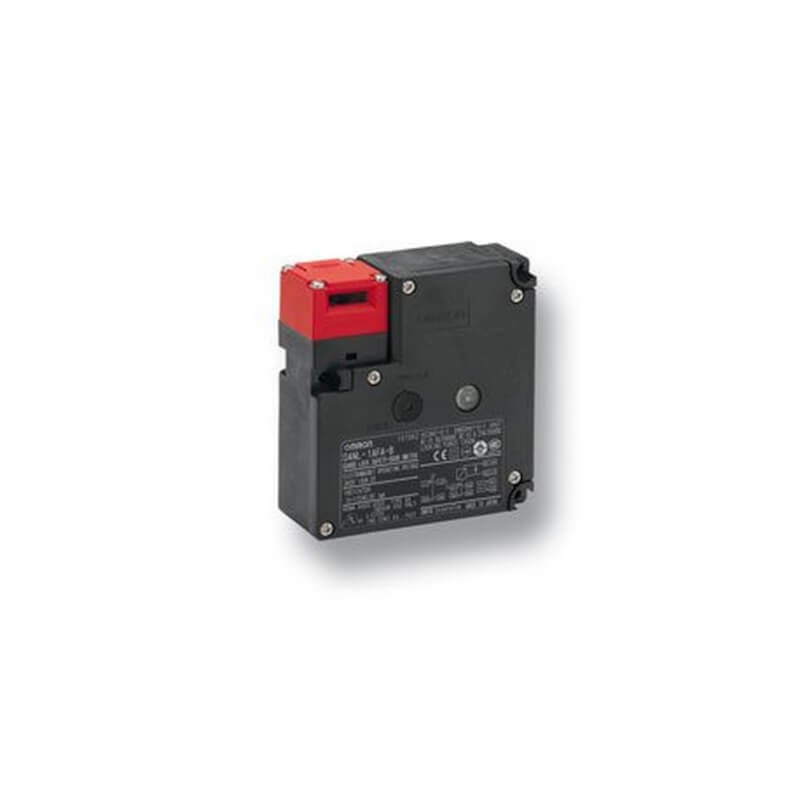

OMRON D4NL-4BFA-B D4NL0006C D4NL4BFAB - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

D4NL-4BFA-B D4NL0006C D4NL4BFAB OMRON Lock makan desert/Opening solen.24vdc 1NC/1NO+2NC M20

Reference: D4NL-4BFA-B

Code: D4NL0006C

Catalog Number: D4NL4BFAB

Manufacturer: OMRON

Description:

Lock makan desert/Opening solen.24vdc 1NC/1NO+2NC M20
Guard lock safety-door switch, D4NL, M20, 1NC/1NO + 2NC (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC LED i

Categories:

  • Sensors > Position switch with guard locking
  • OMRON > Safety > D4DL/DS/DH/DR/GL/NL/NH/NS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 138,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC1Door contacts NO1Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeM20Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)

ETIM for 133796 Sensors (EC002593)

Feature nameExplosion safety category for dust (EF003998)
Feature valueNone
Feature nameConstruction type housing (EF004008)
Feature valueSpecial construction
Feature nameType of switching contact (EF003591)
Feature valueSlow-action switch
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameCoating housing (EF001601)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP67
Feature nameType of interface for safety communication (EF003956)
Feature valueNone
Feature nameType of electric connection (EF003961)
Feature valueCable entry metrical
Feature nameType of interface (EF006977)
Feature valueNone
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameType of guard locking (EF012608)
Feature valueQuiescent current principle
Feature nameExplosion safety category for gas (EF003997)
Feature valueNone
Feature nameWith status indication (EF001602)
Feature valueYes
Feature nameSuitable for safety functions (EF001597)
Feature valueYes
Feature nameWith escape release (EF007172)
Feature valueYes
Feature nameNumber of contacts as change-over contact (EF008257)
Feature value0
Feature nameNumber of contacts as normally open contact (EF008256)
Feature value1
Feature nameGuard locking force (EF007552)
Feature value1300 N
Feature nameRated operation current Ie at AC-15, 230 V (EF001385)
Feature value0 A
Feature nameRated operation current Ie at DC-13, 125 V (EF007085)
Feature value0.27 A
Feature nameNumber of safety auxiliary contacts (EF006940)
Feature value0
Feature nameRated operation current Ie at DC-13, 24 V (EF007087)
Feature value0 A
Feature nameRated operation current Ie at DC-13, 230 V (EF001386)
Feature value0 A
Feature nameNumber of contacts as normally closed contact (EF008255)
Feature value3
Feature nameRated operation current Ie at AC-15, 125 V (EF007082)
Feature value3 A
Feature nameWidth sensor (EF007094)
Feature value88.5 mm
Feature nameRated operation current Ie at AC-15, 24 V (EF007084)
Feature value0 A
Feature nameHeight of sensor (EF007283)
Feature value35.5 mm
Feature nameLength of sensor (EF007334)
Feature value95 mm
Feature nameAmbient temperature during operating (EF007515)
Feature value-10 °C
Feature nameRated control supply voltage magnet drive DC (EF007070)
Feature value20.4 V

DATASHEET - PDF

Title
Size
Type
D4NL-4BFA-B D4NL4BFAB D4NL0006C EN_D4NL-4BFA-B.pdf
5 Mbytes
D4NL-4BFA-B D4NL4BFAB D4NL0006C c126_d4nl_guard_lock_safety_door_switch_datasheet_en.pdf
1 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
19 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
