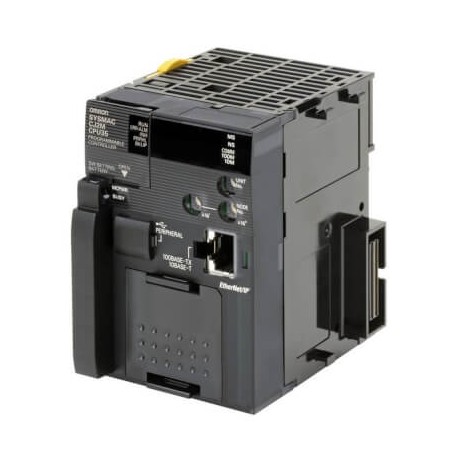

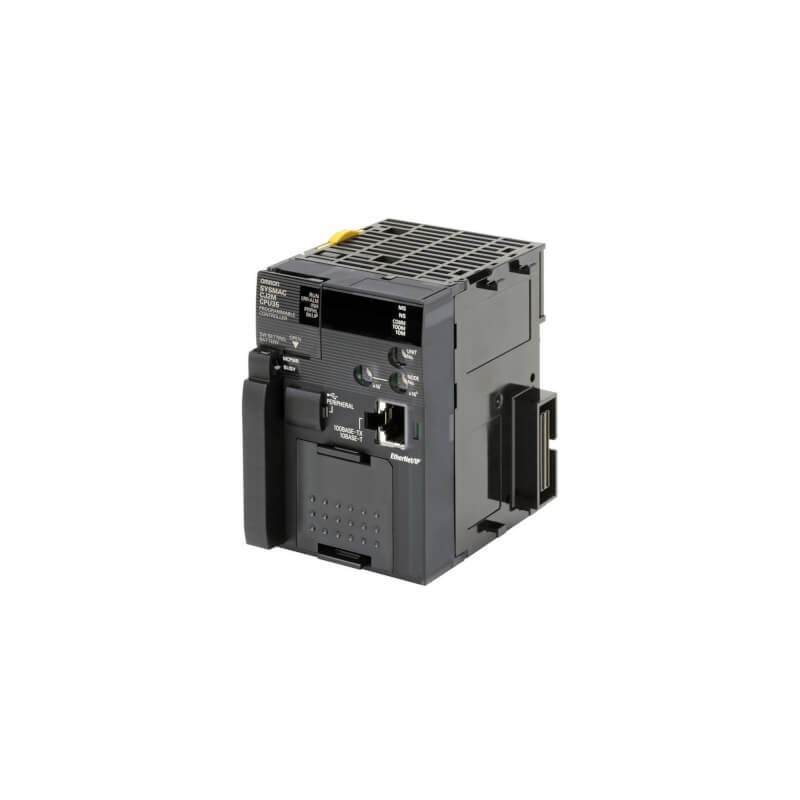

CJ2M-CPU32 CJ2W9021G 392397 OMRON 10K Ethernet CPU steps
CJ2M-CPU32
CJ2W9021G
CJ2MCPU32.1
OMRON
CPU Ethernet 10K steps
CPU with built-in EtherNet/IP port, 10K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB pr
CPU with built-in EtherNet/IP port, 10K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB programming port, 3 expansion racks max.
Control Systems > CJ1
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Program capacity | 30 K steps |
| Data memory capacity | 64 K words |
| Logic execution time | 0.04 µs |
| Max. number of expansion units | 40 |
| Max. number of local I/O points | 2560 |
| Number of built-in digital I/Os | 0 |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Height | 90 mm |
| Width | 62 mm |
| Depth | 84.5 mm |
| Weight | 190 g |
Accessories
| CJ1W-CIF11 | RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side | |
| CJ1W-IC101 | Expansion I/O control unit, connects to right hand side of CPU | |
| CJ1W-II101 | Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks | |
| CJ1W-PA202 | Power supply unit, 100-240 VAC, output capacity: 14 W | |
| CJ1W-PA205R | Power supply unit, 100-240 VAC, output capacity: 25 W, with RUN output | |
| CJ1W-PD022 | Power supply unit, 24 VDC, output capacity: 19.6 W | |
| CJ1W-PD025 | Power supply unit, 24 VDC, output capacity: 25 W | |
| CJ2M-MD211 | Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs) | |
| CJ2M-MD212 | Pulse I/O Module for CJ2M, PNP with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs) | |
| CP1W-CIF01 | CP1 RS-232C (15 m max.) serial communication option board | |
| CP1W-CIF11 | CP1 RS422/485 (50 m max.) serial communication option board | |
| CP1W-CIF12-V1 | CP1 RS422/485 (isolated 500 m max.) serial communication option board | |
| CP1W-CN221 | USB Programming cable, A-type male to B-type male, 1.8 m | |
| CS1W-CIF31 | Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required | |
| CS1W-CN223 | I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m | |
| CS1W-CN713 | I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm | |
| CXONE-AL01-EV4 | Single-user licence for CX-One V4.x software, for Windows 2000/XP/Vista/Windows 7/8/10 (32 and 64 bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4) | |
| HMC-EF183 | Flash memory card, 128MB | |
| HMC-EF283 | Flash memory card, 256MB | |
| HMC-EF583 | Flash memory card, 512MB | |
| W4S1-03B | 3-port basic Ethernet switch | |
| W4S1-05D | 5-port enhanced Ethernet switch | |
| XS6W-6LSZH8SS200CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m | |
| XS6W-6LSZH8SS300CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 3 m | |
| XW2D-40G6 | General-purpose I/O terminal block, MIL40 socket, M3 captive screws, 40 points | |
| XW2R-P40G-T | DIN-rail mounting terminal block, MIL40 socket, push-in clamp, 40 points, general-purpose | |
| XW2Z-100K | I/O connection cable, MIL40 to MIL40, 1 m | |
| XW2Z-200K | I/O connection cable, MIL40 to MIL40, 2 m | |
| XW2Z-200S-V | Cable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m | |
| XW2Z-200T | Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| CJ2M-CPU32 CJ2MCPU32.1 CJ2W9021G v301_cs_cj_spu_storage_and_processing_units_brochure_en.pdf | 2 Mbytes |
 |
