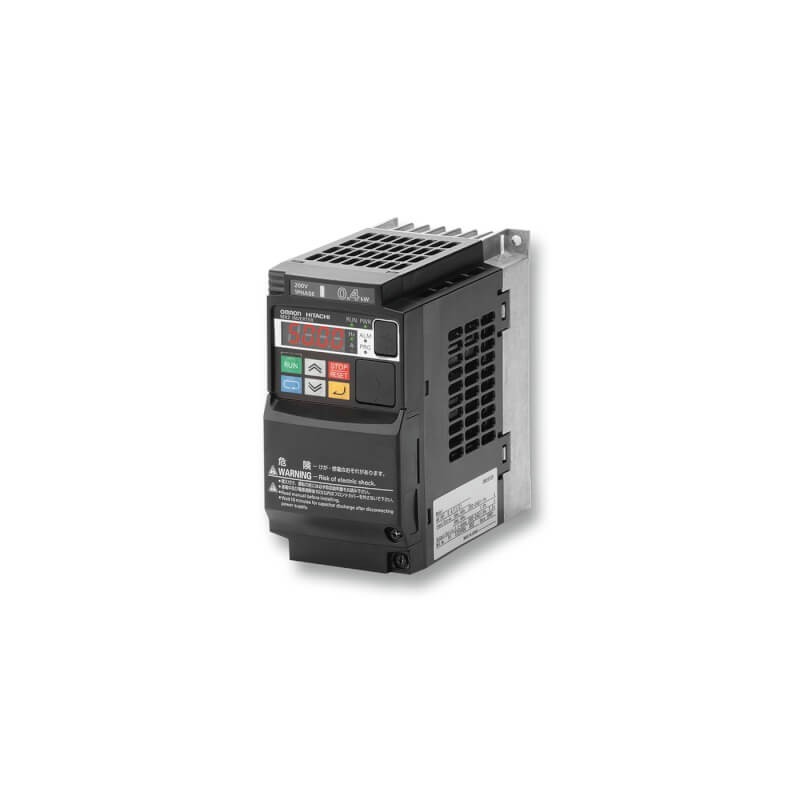

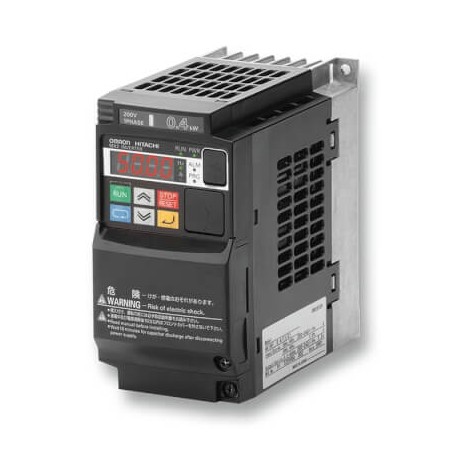

3G3MX2-AB007-E 379093 OMRON Frequency converters, MX2 Single Phase, 200-240VAC, 0.75 / 1.1KW, 5.0 / 6.0A (HD.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3G3MX2-AB007-E 379093 OMRON Frequency converters, MX2 Single Phase, 200-240VAC, 0.75 / 1.1KW, 5.0 / 6.0A (HD..

3G3MX2-AB007-E

379093

OMRON

Available

Ship on today

Frequency converters, MX2 Single Phase, 200-240VAC, 0.75 / 1.1KW, 5.0 / 6.0A (HD / ND) vector

More details


Variable Adjustable Frequency Speed Drives Inverters Vfd Vvvf Voltage

Frequency inverters

MX2

* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

QuantityPrice
1+227,93 €
2+222,41 €
3+219,67 €
4+218,39 €
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



MX2Frequency inverters
Born to drive machines
MX2 has been developed to harmonise advanced motor and machine control. Thanks to its advanced design algorithms the MX2 provides smooth control down to zero
speed, plus precise operationfor fast cyclic operations and torque control capability in openloop.The MX2 also gives you comprehensive functionality for machine control
such as positioning, speed synchronisation and logic programming.
• Current vector control
• Double rating VT 120%/1 min and CT 150%/1 min
•IM & PM motorcontrol
• Torque control in open loop vector
• Positioning functionality
• Built-in applicationfunctionality (i.e. Brake control)
• Fieldbus comms: Modbus, DeviceNet, Profibus, MECHATROLINK-II, EtherCAT, CompoNet and EtherNet/IP
Ordering information
Power supply
MCCB
B
USB cable
E
CX-Drive
CX-One
ABBB
Input AC reactor
A
Filter
Remote operator extension cable
C
Communication option
LCD 5 lines remote operator
Installation accessory
MX2
D
Braking resistor
A
Choke
Motor
Ground
A
DC reactor
A
Output AC reactor
3G3MX2
Specifications Order code
Voltage classConstant torqueVariable torque Standard (IP20)Finless IP54
Max motor kW Rated current AMax motor kW Rated current A
Single-phase
200 V
Three-phase
200 V
0.1 1.0 0.2 1.2 3G3MX2-AB001-E 3G3MX2-AB001-P-E3G3MX2-DB001-E/EC
0.2 1.6 0.4 1.9 3G3MX2-AB002-E 3G3MX2-AB002-P-E3G3MX2-DB002-E/EC
0.43.00.553.53G3MX2-AB004-E3G3MX2-AB004-P-E3G3MX2-DB004-E/EC
0.755.01.16.03G3MX2-AB007-E 3G3MX2-AB007-P-E 3G3MX2-DB007-EC
1.5 8.0 2.2 9.6 3G3MX2-AB015-E 3G3MX2-AB015-P-E3G3MX2-DB015-EC
2.211.03.012.03G3MX2-AB022-E 3G3MX2-AB022-P-E3G3MX2-DB022-EC
0.11.00.21.23G3MX2-A2001-E3G3MX2-A2001-P-E 3G3MX2-D2001-E/EC
0.21.60.41.93G3MX2-A2002-E3G3MX2-A2002-P-E 3G3MX2-D2002-E/EC
0.43.00.553.53G3MX2-A2004-E3G3MX2-A2004-P-E 3G3MX2-D2004-E/EC
0.755.01.16.03G3MX2-A2007-E3G3MX2-A2007-P-E 3G3MX2-D2007-E/EC
1.58.02.29.63G3MX2-A2015-E3G3MX2-A2015-P-E 3G3MX2-D2015-EC
2.211.03.012.03G3MX2-A2022-E3G3MX2-A2022-P-E 3G3MX2-D2022-EC
3.717.55.519.63G3MX2-A2037-E3G3MX2-A2037-P-E 3G3MX2-D2037-EC
5.525.07.530.03G3MX2-A2055-E–3G3MX2-D2055-EC
7.533.0 11 40.03G3MX2-A2075-E–3G3MX2-D2075-EC
11 47.015 56.03G3MX2-A2110-E–3G3MX2-D2110-EC
15 60.018.569.03G3MX2-A2150-E–3G3MX2-D2150-EC
160
MX2Frequency inverters
Specifications Order code
Voltage classConstant torqueVariable torque Standard (IP20)Finless IP54
Max motor kW Rated current AMax motor kW Rated current A
Three-phase
400 V
A Line filters
0.41.8 0.752.13G3MX2-A4004-E3G3MX2-A4004-P-E3G3MX2-D4004-EC
0.753.41.54.13G3MX2-A4007-E3G3MX2-A4007-P-E 3G3MX2-D4007-EC
1.5 4.8 2.2 5.4 3G3MX2-A4015-E 3G3MX2-A4015-P-E3G3MX2-D4015-EC
2.2 5.5 3.0 6.9 3G3MX2-A4022-E 3G3MX2-A4022-P-E3G3MX2-D4022-EC
3.0 7.2 4.0 8.8 3G3MX2-A4030-E 3G3MX2-A4030-P-E3G3MX2-D4030-EC
4.09.2 5.511.13G3MX2-A4040-E3G3MX2-A4040-P-E3G3MX2-D4040-EC
5.514.8 7.517.53G3MX2-A4055-E–3G3MX2-D4055-EC
7.518.0 11 23.03G3MX2-A4075-E–3G3MX2-D4075-EC
11 24.0 15 31.03G3MX2-A4110-E–3G3MX2-D4110-EC
15 31.0 18.538.03G3MX2-A4150-E–3G3MX2-D4150-EC
InverterStandard line filter Low leakage line filter
RasmiSchaffner RasmiSchaffner
VoltageModel 3G3MX2-_ Order code
AX-FIM
Current (A) Order code
AX-FIM
Current (A) Order code
AX-FIM
Current (A) Order code
AX-FIM
Current (A)
1Phase
200 VAC
AB001 / AB002 / AB004 1010-RE 101010-SE-V1 81010-RE-LL101010-SE-LL10
AB007 1014-RE 141014-SE-V1 141014-RE-LL141014-SE-LL14
AB015 / AB0221024-RE 241024-SE-V1 271024-RE-LL241024-SE-LL24
3Phase
200 VAC
A2001 / A2002 / A2004 / A2007
2010-RE102010-SE-V1 7.8 2010-RE-LL10––
3Phase
400 VAC
A2015 / A2022 2020-RE202020-SE-V1 162020-RE-LL202020-SE-LL20
A20372030-RE302030-SE-V1 252030-RE-LL302030-SE-LL30
A2055 / A2075 2060-RE602060-SE-V1 502060-RE-LL602060-SE-LL50
A21102080-RE802080-SE-V1 702080-RE-LL80–– A21502100-RE1002100-SE-V1 752100-RE-LL100–– A4004 / A4007 3005-RE53005-SE-V1 63005-RE-LL53005-SE-LL5
A4015 / A4022 / A4030 3010-RE103010-SE-V1 123010-RE-LL103010-SE-LL10
A40403014-RE143014-SE-V1 153014-RE-LL143014-SE-LL15
A4055 / A4075 3030-RE303030-SE-V1 293030-RE-LL303030-SE-LL30
A4110 / A4150 3050-RE503050-SE-V1 483050-RE-LL503050-SE-LL50
A Input AC reactors
Inverter AC Reactor
Voltage Model 3G3MX2-_Order code
1-Phase200 VAC AB002/AB004 AX-RAI02000070-DE AB007 AX-RAI01700140-DE AB015 AX-RAI01200200-DE AB022 AX-RAI00630240-DE
3-Phase 200 VAC A2002/A2004/A2007 AX-RAI02800080-DE A2015/A2022/A2037 AX-RAI00880200-DE A2055/A2075 AX-RAI00350335-DE
A2110/A2150 AX-RAI00180670-DE
Inverter AC Reactor
Voltage Model 3G3MX2-_Order code
3-Phase 400 VACA4004/A4007/A4015AX-RAI07700050-DE A4022/A4030/A4040 AX-RAI03500100-DE A4055/A4075AX-RAI01300170-DE A4110/A4150 AX-RAI00740335-DE
A DC reactors
200 V single-phase 200 V three-phase400 V three-phase
Inverter Order code InverterOrder codeInverter Order code
3G3MX2-AB001AX-RC10700032-DE 3G3MX2-A2001 AX-RC21400016-DE 3G3MX2-A4004 AX-RC43000020-DE
3G3MX2-AB002 3G3MX2-A20023G3MX2-A4007AX-RC27000030-DE
3G3MX2-AB004AX-RC06750061-DE 3G3MX2-A2004 AX-RC10700032-DE 3G3MX2-A4015 AX-RC14000047-DE
3G3MX2-AB007AX-RC03510093-DE 3G3MX2-A2007 AX-RC06750061-DE 3G3MX2-A4022 AX-RC10100069-DE
3G3MX2-AB015AX-RC02510138-DE 3G3MX2-A2015 AX-RC03510093-DE 3G3MX2-A4030 AX-RC08250093-DE
3G3MX2-AB022AX-RC01600223-DE 3G3MX2-A2022 AX-RC02510138-DE 3G3MX2-A4040 AX-RC06400116-DE
– 3G3MX2-A2037 AX-RC01600223-DE 3G3MX2-A4055 AX-RC04410167-DE
3G3MX2-A2055 AX-RC01110309-DE 3G3MX2-A4075 AX-RC03350219-DE
3G3MX2-A2075 AX-RC00840437-DE 3G3MX2-A4011 AX-RC02330307-DE
3G3MX2-A2011 AX-RC00590614-DE 3G3MX2-A4015 AX-RC01750430-DE
3G3MX2-A2015 AX-RC00440859-DE –
A Chokes
DiameterDescription Order code
21 For 2.2 KW motors or belowAX-FER2102-RE
25 For 15 KW motors or below AX-FER2515-RE
50 For 45 KW motors or below AX-FER5045-RE
161
MX2Frequency inverters
A Output AC reactor
Inverter AC Reactor
VoltageModel 3G3MX2-_ Order code
Inverter AC Reactor
VoltageModel 3G3MX2-_ Order code
200 VACAB001/AB002/AB004/A2001/A2002/ A2004
AX-RAO11500026-DE
400 VACA4004/A4007/A4015AX-RAO16300038-DE A4022 AX-RAO11800053-DE
B Accessories
AB007/A2007 AX-RAO07600042-DE
AB015/A2015 AX-RAO04100075-DE AB022/A2022 AX-RAO03000105-DE A2037 AX-RAO01830160-DE A2055 AX-RAO01150220-DE A2075 AX-RAO00950320-DE A2110 AX-RAO00630430-DE A2150 AX-RAO00490640-DE
A4030/A4040 AX-RAO07300080-DE A4055 AX-RAO04600110-DE A4075 AX-RAO03600160-DE A4110 AX-RAO02500220-DE A4150 AX-RAO02000320-DE
TypesDescription Functions Order code
Digital operatorLCD remote operator5 Line LCD remote operator with copy function, cable length max. 3m. AX-OP05-E
Remote operator cable 3 meters cable for connecting remote operator3G3AX-CAJOP300-EE LED remote operatorLED remote operator, cable length max. 3m 3G3AX-OP01
Mounting kit for LED operator Mounting kit for LED operator on panel4X-KITMINI Operator holder Holder to put the AX-OP05-E inside of the cabinet3G3AX-OP05-H-E
Accessories PC configuration cable Mini USB to USB connector cable AX-CUSBM002-E
C Communication option boards
Description FunctionsOrder code
Profibus option card Used for running or stopping the inverter, setting or referencing parameters, and monitoring output frequency, output current, 3G3AX-MX2-PRT
DeviceNet option card
or similar items through communications with the host controller.
3G3AX-MX2-DRT
EtherCAT option card3G3AX-MX2-ECT CompoNet option card 3G3AX-MX2-CRT MECHATROLINK-II option card3G3AX-MX2-MRT EtherNet/IP option card3G3AX-MX2-EIP
Extra input/output option board
1 analog voltage input, 1 analog current input, 1 analog voltage output, 8 discrete logic inputs,
4 discrete logic outputs
3G3AX-MX2-EIO15-E
D Braking unit, braking resistor unit
InverterBraking resistor unit
Voltage Max. motor
Inverter 3G3MX2_ Connectable min.
Inverter mounted type
Braking
Inverter mounted type
Braking
kWresistance 
(3 %ED, 10 sec max)
torque % (10%ED, 10 sec max)
torque %
200 V
(Single-/Three- phase)
400 V
(Three-phase)
1-phase 3-phaseOrder codeResist  Order code Resist 
0.12 B001 2001100AX-REM00K1400-IE 400200AX-REM00K1400-IE 400200
0.25 B002 2002 180180
0.55 B004 2004AX-REM00K1200-IE 200180AX-REM00K1200-IE 200180
1.1 B007 200750 100AX-REM00K2070-IE 70200
1.5 B015 2015AX-REM00K2070-IE 70140AX-REM00K4075-IE 75130
2.2 B022 202235 90AX-REM00K4035-IE 35180
4.0 –2040AX-REM00K4075-IE 7550AX-REM00K6035-IE 35100
5.5 –205520AX-REM00K4035-IE 3575AX-REM00K9020-IE 20150
7.5 –207517 55AX-REM01K9017-IE 17110
11–2110AX-REM00K6035-IE 3540AX-REM02K1017-IE 1775
15–215010AX-REM00K9017-IE 1755AX-REM03K5010-IE 1095
0.55 –4004180AX-REM00K1400-IE 400200AX-REM00K1400-IE 400200
1.1 –4007 200200
1.5 –4015AX-REM00K1200-IE 200190AX-REM00K2200-IE 200190
2.2 –4022100AX-REM00K2200-IE 200130AX-REM00K5120-IE 120200
3.0 –4030AX-REM00K2120-IE 120160160
4.0 –4040 120AX-REM00K6100-IE 100140
5.5 –405570AX-REM00K4075-IE 75140AX-REM00K9070-IE 70150
7.5 –4075 100AX-REM01K9070-IE 70110
11–4110AX-REM00K6100-IE 10050AX-REM02K1070-IE 7075
15–415035AX-REM00K9070-IE 7055AX-REM03K5035-IE 35110
E Computer software
Description InstallationOrder code Computer softwareConfiguration and monitoring software tool CX-Drive Computer softwareConfiguration and monitoring software tool CX-One Computer softwareSoftware tool for Energy Saving calculation €Saver
162
MX2Frequency inverters
Specifications
200 V class
Single-phase: 3G3MX2-_ B001B002B004B007*1
B015B022– – – – –
Three-phase: 3G3MX2-_2001 2002 2004 2007 2015 2022 2037 2055 2075 2110 2150
Motor kW*2
Power supply
For VT setting 0.20.40.551.12.23.05.57.5 11 15 18.5
For CT setting 0.10.20.40.751.52.23.75.57.511 15
Inverter capacity kVA 200 VT 0.4 0.61.2 2.03.34.16.710.3 13.819.323.9
200 CT0.20.51.01.72.73.86.08.611.416.220.7
240 VT 0.4 0.71.4 2.43.94.98.112.4 16.623.228.6
240 CT0.3 0.61.2 2.03.34.57.210.3 13.719.524.9
Rated output current (A) at VT 1.2 1.93.5 6.09.612.019.630.0 40.056.069.0
Rated output current (A) at CT 1.0 1.63.0 5.08.011.017.525.0 33.047.060.0
Max. output voltageProportional to input voltage: 0 … 240 V
Max. output frequency400 Hz
Rated input voltage and frequency Single-phase 200… 240 V 50/60 Hz
3-phase 200… 240 V 50/60 Hz
Allowable voltage fluctuation –15% … +10%
Allowable frequency fluctuation 5%
Braking torque
At short-time deceleration
At capacitor feedback
100%: <50Hz
50%: <60Hz
70%:
<50Hz
50%:
<60Hz
Approx 20%–
Cooling method Self cooling*3
*1Three phase model use forced-air-cooling but single phase model is self cooling.
*2Based on a standard 3-Phase standard motor.
*3Forced air cooling for IP54 models
Forced-air-cooling
400 V class
Three-phase: 3G3MX2-_4004 4007 4015 4022 4030 4040 4055 4075 4110 4150
Motor kW*1
Power supply
For VT setting 0.75 1.52.23.04.05.57.511 15 18.5
For CT setting 0.40.751.52.23.04.05.57.511 15
Inverter capacity kVA 380 VT1.32.63.54.55.77.311.515.120.425.0
380 CT1.12.23.13.64.76.09.711.815.720.4
480 VT1.73.44.45.77.39.214.519.125.731.5
480 CT1.42.83.94.55.97.612.314.919.925.7
Rated output current (A) at VT 2.14.15.46.98.811.117.523.0 31.0 38.0
Rated output current (A) at CT 1.83.44.85.57.29.214.818.024.031.0
Max. output voltageProportional to input voltage: 0 … 480 V
Max. output frequency400 Hz
Rated input voltage and frequency 3-phase 380 … 480V 50/60 Hz
Allowable voltage fluctuation –15% … +10%
Allowable frequency fluctuation 5%
Braking torque
At short-time deceleration*2
At capacitor feedback
100%: <50Hz
50%: <60Hz
70%: <50Hz –
50%: <60Hz
Cooling method Self cooling*2
*1Based on a standard 3-Phase standard motor.
*2Forced air cooling for IP54 models
Forced-air-cooling
163
MX2Frequency inverters
Dimensions
Standard models (IP20)
Voltage class Inverter modelDimensions in mm Weight (kg) H WD
Single-phase 200 V 3G3MX2-AB001-E 128681091.0
3G3MX2-AB002-E 1.0
3G3MX2-AB004-E122.5 1.1
3G3MX2-AB007-E 128108170.5 1.4
3G3MX2-AB015-E 1.8
3G3MX2-AB022-E 1.8
Three-phase 200 V3G3MX2-A2001-E 128681091.0
3G3MX2-A2002-E1.0
3G3MX2-A2004-E 122.5 1.1
3G3MX2-A2007-E 145.5 1.2
3G3MX2-A2015-E 128108170.5 1.6
3G3MX2-A2022-E1.8
3G3MX2-A2037-E 128140170.5 2.0
3G3MX2-A2055-E 2601401553.0
3G3MX2-A2075-E3.4
3G3MX2-A2110-E 2961801755.1
3G3MX2-A2150-E 3502201757.4
Three-phase 400 V3G3MX2-A4004-E 128108143.5 1.5
3G3MX2-A4007-E 170.5 1.6
3G3MX2-A4015-E1.8
3G3MX2-A4022-E1.9
3G3MX2-A4030-E1.9
3G3MX2-A4040-E 128140170.5 2.1
3G3MX2-A4055-E 2601553.5
3G3MX2-A4075-E3.5
3G3MX2-A4110-E 2961801754.7
3G3MX2-A4150-E5.2
H
D
W
Finless models
Voltage class Inverter modelDimensions in mm Weight (kg) H WD
Single-phase 200 V 3G3MX2-AB001-P-E 128681031.1
3G3MX2-AB002-P-E
3G3MX2-AB004-P-E
3G3MX2-AB007-P-E 1281081231.8
3G3MX2-AB015-P-E
3G3MX2-AB022-P-E
Three-phase 200 V 3G3MX2-A2001-P-E 128681031.1
3G3MX2-A2002-P-E
3G3MX2-A2004-P-E
3G3MX2-A2007-P-E
3G3MX2-A2015-P-E 1281081231.8
3G3MX2-A2022-P-E
3G3MX2-A2037-P-E 1281401232.1
Three-phase 400 V 3G3MX2-A4004-P-E 1281081231.8
3G3MX2-A4007-P-E
3G3MX2-A4015-P-E
3G3MX2-A4022-P-E
3G3MX2-A4030-P-E
3G3MX2-A4040-P-E 1281401232.1
H
D
W
164
MX2Frequency inverters
IP54 models
Voltage class Inverter model Dimensions in mm Weight (kg) H WD
Single-phase 200 V 3G3MX2-DB001-E 464.74 179.5 292.7 8.0
3G3MX2-DB001-EC 482.8 309.5 317.7 11.8
3G3MX2-DB002-E 464.74 179.5 292.7 8.0
3G3MX2-DB002-EC 482.8 309.5 317.7 11.8
3G3MX2-DB004-E 464.74 179.5 292.7 8.4
3G3MX2-DB004-EC 482.8 309.5 317.7 12.1
3G3MX2-DB007-EC 12.4
3G3MX2-DB015-EC 16.0
3G3MX2-DB022-EC 16.0
Three-phase 200 V 3G3MX2-D2001-E464.74 179.5 292.7 8.0
3G3MX2-D2001-EC482.8 309.5 317.7 11.8
3G3MX2-D2002-E464.74 179.5 292.7 8.0
3G3MX2-D2002-EC482.8 309.5 317.7 11.8
3G3MX2-D2004-E464.74 179.5 292.7 8.1
3G3MX2-D2004-EC482.8 309.5 317.7 11.9
3G3MX2-D2007-E464.74 179.5 292.7 8.2
3G3MX2-D2007-EC482.8 309.5 317.7 12.0
3G3MX2-D2015-EC 15.4
3G3MX2-D2022-EC 15.6
3G3MX2-D2037-EC 16.2
3G3MX2-D2055-EC627.04 325299.5 18.8
3G3MX2-D2075-EC 19.2
3G3MX2-D2110-EC710.35 379329.7 25.3
3G3MX2-D2150-EC 28.0
Three-phase 400 V3G3MX2-D4004-EC 482.8 309.5 317.7 12.0
3G3MX2-D4007-EC 12.5
3G3MX2-D4015-EC 12.4
3G3MX2-D4022-EC 12.5
3G3MX2-D4030-EC 12.5
3G3MX2-D4040-EC 13.1
3G3MX2-D4055-EC627.04 325299.5 18.7
3G3MX2-D4075-EC 18.7
3G3MX2-D4110-EC710.35 379329.7 23.8
3G3MX2-D4150-EC 24.3
H
D
W
165

Datasheet - PDF

Title:Language:Size:Type:
pdf1-mostradoOMRON - 3G3MX2-AB007-E - 379093English537 Kbytespdf1-mostradoOMRON - 3G3MX2-AB007-E - 379093
pdf1-OMRON - 3G3MX2-AB007-E - 379093English4 Mbytespdf1-mostradoOMRON - 3G3MX2-AB007-E - 379093
pdf2-mostradoOMRON - 3G3MX2-AB007-E - 379093English2 Mbytespdf1-mostradoOMRON - 3G3MX2-AB007-E - 379093
pdf2-OMRON - 3G3MX2-AB007-E - 379093English5 Mbytespdf1-mostradoOMRON - 3G3MX2-AB007-E - 379093

Reviews (0)

No customer reviews for the moment.

Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
  Captcha
  Add review
