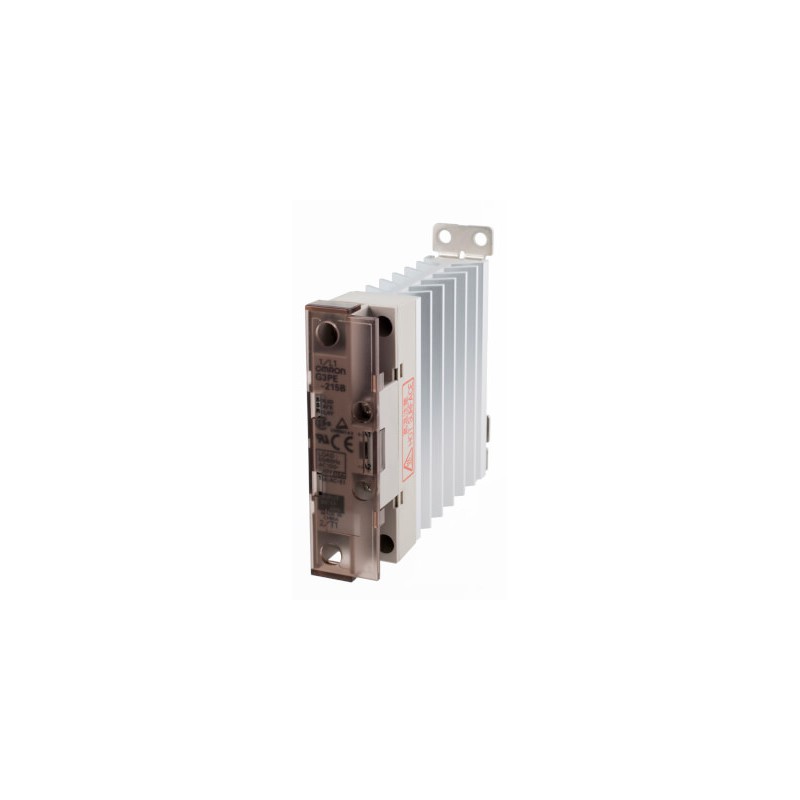

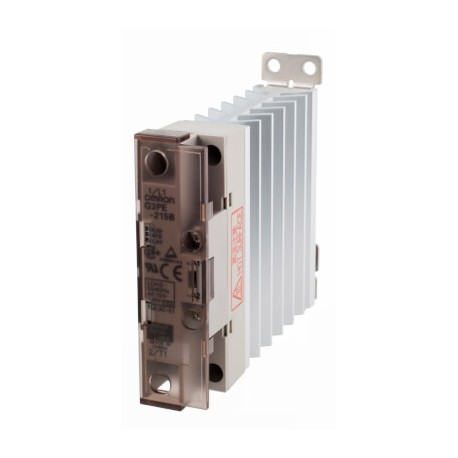

G3PE-225B-3 12-24VDC G3PE2022F 375407 OMRON Solid State Relay 25A 100-240Vac 3 Pole Screws With Dissip. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

G3PE-225B-3 12-24VDC G3PE2022F 375407 OMRON Solid State Relay 25A 100-240Vac 3 Pole Screws With Dissip.

G3PE-225B-3 12-24VDC

G3PE2022F

G3PE225B3DC1224.1

OMRON

Available Ship on today

Solid State relay 25A 100-240vac 3-pole Screws With disip.

More details


Solid State Relays > G3PB

* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total price: $225.14
Unit price: $225.14

Quantity Price
1+$225.14
2+$201.26
3+$191.54
4+$186.04
5+$183.18
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Features

Omron’s G3PE Compact Industrial SSR with outstanding surge endurance

The G3PE features an original surge-pass circuit that gives outstanding surge endurance and protects the semiconductor device against voltages in excess of 30kV.

  • Single and three phase, 15-45 A output current
  • 100-240VAC and 200-480 VAC output voltages
  • Models available without zero cross
  • Improved surge dielectric strength for output circuits
  • Terminal cover with finger protection
  • Mount to DIN track or with screws

Ordering information

Phases

Rated voltage
(operating voltage)

Rated output load

Permissible I2t
(half 60 Hz wave)

Applicable heater capacity
AC1: resistive load)

Size in mm (H×W×D)

Number of poles

Order code

1

100 to 240 VAC
(75 to 264 VAC)

15 A (at 40°C)

121 A2s

3 kW (at 200 VAC)

100×22.5×100

1

G3PE-215B DC12-24

25 A (at 40°C)

260 A2s

5 kW (at 200 VAC)

1

G3PE-225B DC12-24

35 A

1,260 A2s

7 kW (at 200 VAC)

100×44.5×100

1

G3PE-235B DC12-24

45 A

9 kW (at 200 VAC)

1

G3PE-245B DC12-24

200 to 480 VAC
(180 to 528 VAC)

15 A (at 40°C)

128 A2s

6 kW (at 400 VAC)

100×22.5×100

1

G3PE-515B DC12-24

25 A (at 40°C)

1,350 A2s

10 kW (at 400 VAC)

1

G3PE-525B DC12-24

35 A

14 kW (at 400 VAC)

100×44.5×100

1

G3PE-535B DC12-24

45 A

6,600 A2s

18 kW (at 400 VAC)

1

G3PE-545B DC12-24

3

200 to 480 VAC
(180 to 528 VAC)

15 A (at 40°C)

260 A2s

12.5 kW (at 480 VAC)

100×80×155

3

G3PE-515B-3N DC12-24

2

G3PE-515B-2N DC12-24

25 A (at 40°C)

20.7 kW (at 480 VAC)

120×80×155

3

G3PE-525B-3N DC12-24

100×80×155

2

G3PE-525B-2N DC12-24

35 A

1,260 A2s

29 kW (at 480 VAC)

140×80×155

3

G3PE-535B-3N DC12-24

120×80×155

2

G3PE-535B-2N DC12-24

45 A

37.4 kW (at 480 VAC)

140×110×155

3

G3PE-545B-3N DC12-24

140×80×155

2

G3PE-545B-2N DC12-24

Specifications

Rated input voltage

12 to 24 VDC

Operating voltage range

9.6 to 30 VDC

Rated input current (impedance)

7 mA max. (zero cross models); 15 mA max. (models without zero cross)

Zero cross function

Yes

Must operate voltage

9.6 VDC max.

Must release voltage

1 VDC min.

Isolation method

Phototriac coupler

Operation indicator

Yes (yellow)

Load voltage range

200 to 480 VAC models: 180 to 528 VAC

100 to 240 VAC models: 75 to 264 VAC

Operate time

1/2 of load power source cycle +1 ms max.

Release time

1/2 of load power source cycle +1 ms max.

Leakage current

10 mA (at 200 VAC)

Ambient temperature

Operating: -30 to 80°C

Datasheet - PDF

▲
Title: Size: Type:
G3PE-225B-3 12-24VDC 375407 G3PE2022F g3pe_single_phase_solid_state_relays_for_heaters_datasheet_en.pdf 2 Mbytes G3PE-225B-3 12-24VDC 375407 G3PE2022F g3pe_single_phase_solid_state_relays_for_heaters_datasheet_en.pdf
