NYE2A-20511-15WR1300 NYE10014E NYE2A2051115WR1300 OMRON Basic Panel Industrial PC with Intel® Atom-E3940™, 4..
NYE2A-20511-15WR1300
NYE10014E
NYE2A2051115WR1300
OMRON

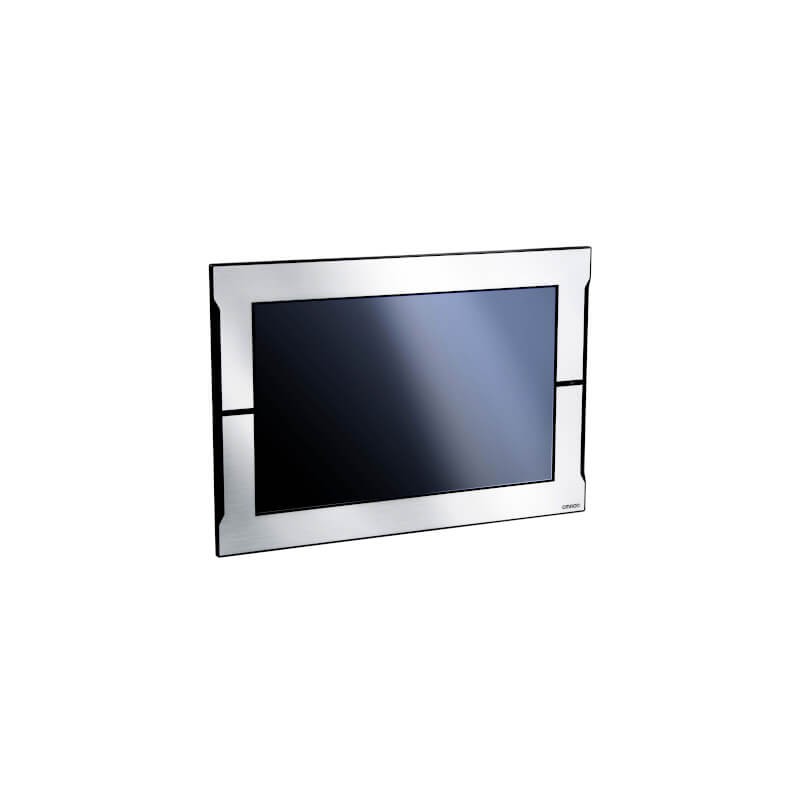

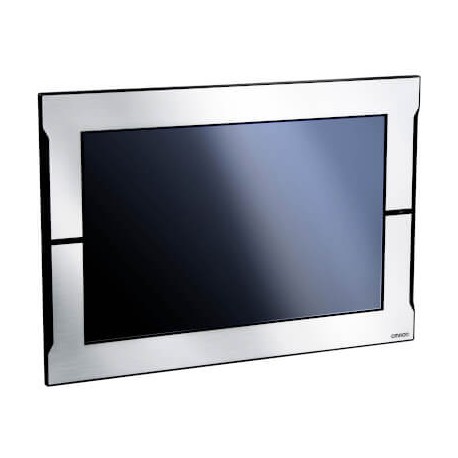

Basic Panel Industrial PC with Intel® Atom-E3940™, 4 GB RAM (non-ECC), no exp slots, WIN 10 IoT 2021 (64-bit), 128 GB CFast 3DTLC, RS-232C, 15.4" (1280x800) resistive touch screen, integrated type, Silver
Basic Industrial Panel PC with Intel® Atom™-E3940, 4 GB RAM (non ECC), No exp. slots, WIN 10 IoT 2021 (64-bit), 128 GB CFast 3DTLC, RS-232C, 15.4" (12
PLC's > Panel PC
PC Industrial > PC Industrial NY
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Type of display (EF008244) | TFT |
| Degree of protection (NEMA) (EF011959) | Other |
| Voltage type (supply voltage) (EF002991) | DC |
| Preinstalled operating system (EF007535) | Windows 10 |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Radio standard UMTS (EF008525) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Supporting protocol for SERCOS (EF006657) | No |
| IO link master (EF007298) | No |
| Rack-assembly possible (EF007018) | No |
| With floppy disc drive (EF003128) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for LON (EF003017) | No |
| Mouse-cursor control integrated (EF003143) | Yes |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Radio standard GSM (EF008524) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Suitable for rail mounting (EF003972) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| With optical drive (EF012515) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Radio standard GPRS (EF008523) | No |
| Mounting type, table foot (EF007019) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| With hard disc (EF002000) | No |
| Certified for UL hazardous location class I (EF017622) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Customer individual configuration (EF003132) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Radio standard Bluetooth (EF007178) | No |
| Suitable for safety functions (EF001597) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Mounting type, gallows mounting (EF007017) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Integrated keyboard (EF003141) | Yes |
| With touch screen (EF003102) | Yes |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| With other storage media (EF003129) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Number of function buttons (EF003142) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces PS2 (EF003139) | 0 |
| Height of the front (EF003652) | 291 mm |
| Width of the front (EF003651) | 420 mm |
| Number of free AGP-slots (EF003133) | 0 |
| Number of HW-interfaces USB (EF003025) | 3 |
| Number of pixels, vertical (EF003100) | 800 |
| Number of buttons with LED (EF009259) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Built-in depth (EF000218) | 63 mm |
| Number of free ISA-slots (EF003135) | 0 |
| Number of system buttons (EF009260) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces SCSI (EF003138) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of pixels, horizontal (EF003099) | 1280 |
| Max. main memory (EF003123) | 4096 MB |
| Screen diagonal (EF002032) | 15.4 inch |
| Operating temperature (EF002393) | 0 °C |
| Supply voltage DC (EF007534) | 20.4 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOGUE OMRON INDUSTRIAL PC EN.pdf | 12 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| NYE2A-20511-15WR1300 NYE2A2051115WR1300 NYE10014E EN_NYE2A-20511-15WR1300.pdf | 1 Mbytes |
|
