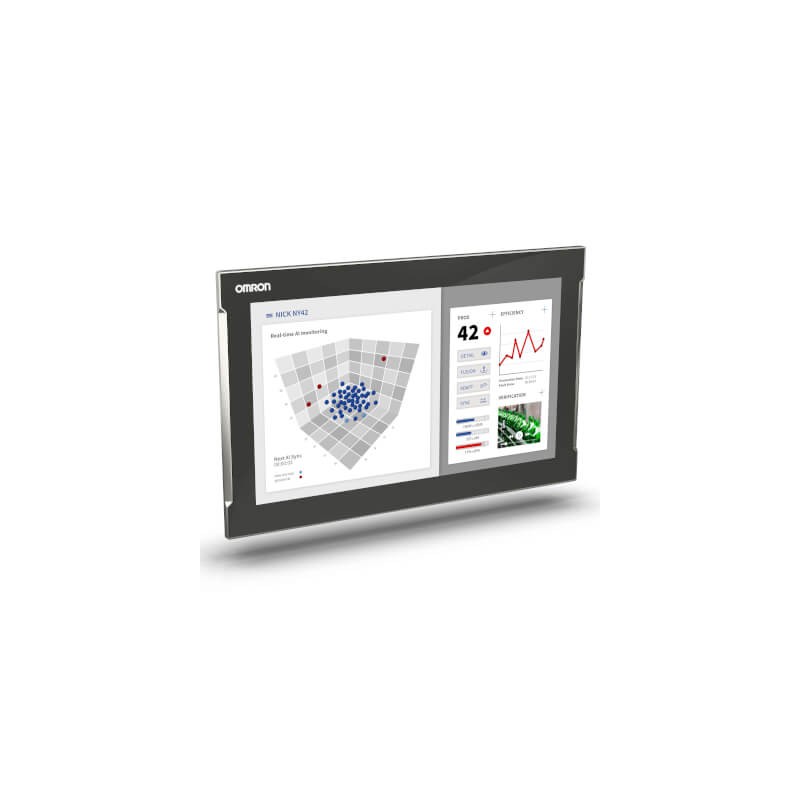

OMRON NY532-1400-023445600 NY510361F NY5321400023445600 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

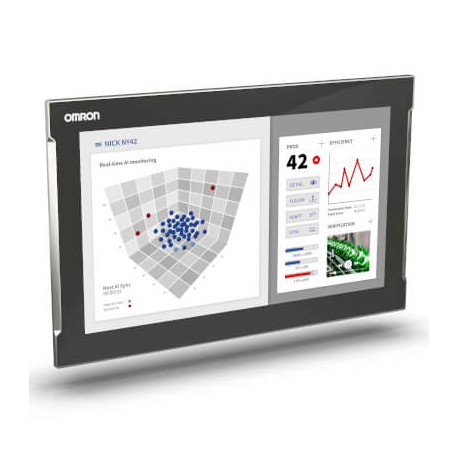

NY532-1400-023445600 NY510361F NY5321400023445600 OMRON Machine Controller for 32 axes, Industrial Panel PC ..

Reference: NY532-1400-023445600

Code: NY510361F

Catalog Number: NY5321400023445600

Manufacturer: OMRON

Description:

Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019 LTSC - 64 bit, 18.5" (1920x1080) display with capacitive touchscreen, Ni plating
Machine Controller for 32 axes, Industrial Panel PC with Intel® Core™ i5-7440EQ, 32 GB RAM (Non-ECC), 128 GB CFast MLC, Windows 10 IoT Enterprise 2019

Categories:

  • PLC's > Panel PC
  • OMRON > PC Industrial > PC Industrial NY

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 14.656,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

IPC typePanel PCController typeMachine ControlMax. number of motion axes32Screen diagonal18.5 inProcessor familyIntel® Core™ i5Processor specification7440EQ (2.9 GHz)Cooling methodActive cooling (fan)Memory32 GB RAM (non ECC)Storage128 GB CFast MLCOperating systemWindows 10 IoT Enterprise 2019 LTSC - 64 bitExpansion slotNo ExpansionModular portNo PortCommunication port(s)EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USBVideo outputDVI-IDisplay ratio16:9Number of pixels, horizontal1920Number of pixels, vertical1080Type of displayTFTTouchscreen technologyProjected capacitiveMounting methodBuild-inMaterial housingAluminium, nickel platingDegree of protection (IP), front sideIP65Operating temperature0-55 °CSupply voltage DC20.4-28.8 VHeight of the front303 mmWidth of the front481 mmHeight of panel cutout285 mmWidth of panel cutout463 mmBuilt-in depth63 mmProduct Weight (unpacked)7000 g

ETIM for 701480 PLC's (EC001414)

Feature nameType of display (EF008244)
Feature valueTFT
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueDC
Feature namePreinstalled operating system (EF007535)
Feature valueWindows 10
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameRadio standard UMTS (EF008525)
Feature valueNo
Feature nameSupporting protocol for EtherCAT (EF017564)
Feature valueYes
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueYes
Feature nameSupporting protocol for SERCOS (EF006657)
Feature valueNo
Feature nameIO link master (EF007298)
Feature valueNo
Feature nameRack-assembly possible (EF007018)
Feature valueNo
Feature nameWith floppy disc drive (EF003128)
Feature valueNo
Feature nameSupporting protocol for KNX (EF003055)
Feature valueNo
Feature nameSupporting protocol for LON (EF003017)
Feature valueNo
Feature nameMouse-cursor control integrated (EF003143)
Feature valueYes
Feature nameSupporting protocol for SUCONET (EF003060)
Feature valueNo
Feature nameSupporting protocol for EtherNet/IP (EF007521)
Feature valueYes
Feature nameRadio standard GSM (EF008524)
Feature valueNo
Feature nameSupporting protocol for INTERBUS (EF003054)
Feature valueNo
Feature nameSupporting protocol for Data-Highway (EF003058)
Feature valueNo
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature nameSupporting protocol for DeviceNet (EF003059)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueNo
Feature nameSupporting protocol for INTERBUS-Safety (EF006662)
Feature valueNo
Feature nameWith optical drive (EF012515)
Feature valueNo
Feature nameSupporting protocol for PROFIsafe (EF007526)
Feature valueNo
Feature nameCertified for UL hazardous location class III (EF017627)
Feature valueNo
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameRadio standard GPRS (EF008523)
Feature valueNo
Feature nameMounting type, table foot (EF007019)
Feature valueNo
Feature nameCertified for UL hazardous location class II (EF017625)
Feature valueNo
Feature nameWith hard disc (EF002000)
Feature valueNo
Feature nameCertified for UL hazardous location class I (EF017622)
Feature valueNo
Feature nameSupporting protocol for DeviceNet Safety (EF007520)
Feature valueNo
Feature nameWall mounting/direct mounting (EF007020)
Feature valueNo
Feature nameFront built-in possible (EF007016)
Feature valueYes
Feature nameSupporting protocol for Foundation Fieldbus (EF007522)
Feature valueNo
Feature nameCustomer individual configuration (EF003132)
Feature valueNo
Feature nameSupporting protocol for SafetyBUS p (EF007527)
Feature valueNo
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueNo
Feature nameCertified for UL hazardous location group G (non-conductive dusts) (EF017639)
Feature valueNo
Feature nameSupporting protocol for PROFINET CBA (EF007524)
Feature valueNo
Feature nameCertified for UL hazardous location group F (carbonaceous dusts) (EF017638)
Feature valueNo
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameCertified for UL hazardous location group E (metal dusts) (EF017637)
Feature valueNo
Feature nameMounting type, gallows mounting (EF007017)
Feature valueNo
Feature nameSupporting protocol for CAN (EF003053)
Feature valueNo
Feature nameSupporting protocol for AS-Interface Safety at Work (EF007519)
Feature valueNo
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameCertified for UL hazardous location group A (acetylene) (EF017632)
Feature valueNo
Feature nameCertified for UL hazardous location division 2 (EF017629)
Feature valueNo
Feature nameCertified for UL hazardous location division 1 (EF017628)
Feature valueNo
Feature nameIntegrated keyboard (EF003141)
Feature valueYes
Feature nameWith touch screen (EF003102)
Feature valueYes
Feature nameCertified for UL hazardous location group D (propane) (EF017636)
Feature valueNo
Feature nameWith other storage media (EF003129)
Feature valueYes
Feature nameSupporting protocol for ASI (EF003051)
Feature valueNo
Feature nameCertified for UL hazardous location group C (ethylene) (EF017635)
Feature valueNo
Feature nameCertified for UL hazardous location group B (hydrogen) (EF017633)
Feature valueNo
Feature nameNumber of function buttons (EF003142)
Feature value0
Feature nameNumber of HW-interfaces other (EF003027)
Feature value1
Feature nameNumber of interfaces PROFINET (EF006932)
Feature value0
Feature nameNumber of HW-interfaces PS2 (EF003139)
Feature value0
Feature nameHeight of the front (EF003652)
Feature value303 mm
Feature nameWidth of the front (EF003651)
Feature value481 mm
Feature nameNumber of free AGP-slots (EF003133)
Feature value0
Feature nameNumber of HW-interfaces USB (EF003025)
Feature value4
Feature nameNumber of pixels, vertical (EF003100)
Feature value1080
Feature nameNumber of buttons with LED (EF009259)
Feature value0
Feature nameNumber of free PCMCIA-slots (EF003136)
Feature value0
Feature nameNumber of free ISA-slots (EF003135)
Feature value0
Feature nameNumber of system buttons (EF009260)
Feature value0
Feature nameNumber of HW-interfaces serial TTY (EF003024)
Feature value0
Feature nameNumber of HW-interfaces wireless (EF006933)
Feature value0
Feature nameNumber of HW-interfaces parallel (EF003026)
Feature value0
Feature nameNumber of HW-interfaces industrial Ethernet (EF003020)
Feature value3
Feature nameNumber of HW-interfaces RS-232 (EF003021)
Feature value0
Feature nameNumber of HW-interfaces RS-422 (EF003022)
Feature value0
Feature nameNumber of HW-interfaces SCSI (EF003138)
Feature value0
Feature nameNumber of free PCI-slots (EF003134)
Feature value0
Feature nameNumber of HW-interfaces RS-485 (EF003023)
Feature value0
Feature nameNumber of pixels, horizontal (EF003099)
Feature value1920
Feature nameMax. main memory (EF003123)
Feature value8192 MB
Feature nameScreen diagonal (EF002032)
Feature value18.5 inch
Feature nameOperating temperature (EF002393)
Feature value0 °C
Feature nameSupply voltage DC (EF007534)
Feature value20.4 V
