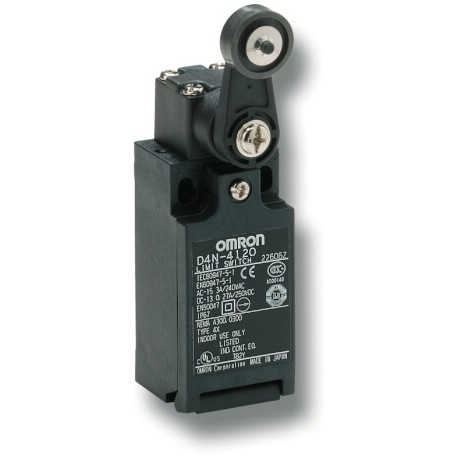

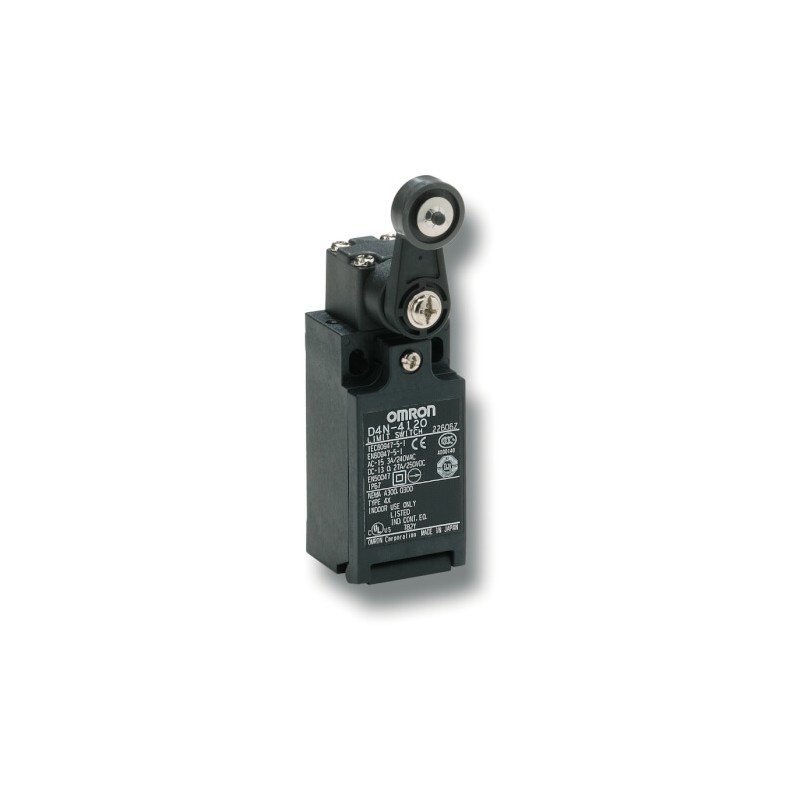

D4N-8A62 170258 OMRON Security Product, Plastic 1NC / 1NO Slow Horizontal Jointed 2-M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

D4N-8A62 170258 OMRON Security Product, Plastic 1NC / 1NO Slow Horizontal Jointed 2-M20

D4N-8A62

170258

OMRON

Available

Ship on today

Security Product, Plastic 1NC / 1NO Slow Horizontal Jointed 2-M20

More details


Limit Switches

Safety

D4N

* Brand new produt in its original packing covered by the warranties and certifications provided by OMRON

QuantityPrice
1+19,62 €
12+17,16 €
23+16,77 €
34+16,57 €
45+16,44 €
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Miniature Safety Limit Switch
D4N
Safety Limit Switches compatible to the Popular D4D, Providing a Full Lineup Conforming to In- ternational Standards
• Lineup includes three contact models with 2NC/1NO and 3NC in addition to the 1NC/1NO, and 2NC contact mod- els. Models with MBB contacts are available too.
• M12-connector models are available, saving on labor and simplifying mainte- nance.
• Standardized gold-clad contacts pro- vide high contact reliability.
Can be used with both standard loads and microloads.
• Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment.
• Conforms to EN115 and EN81-1.
• Lineup includes both slow-action and snap-action models with Zb contacts.
Be sure to read the Safety Precautions on page G-237.
Note: Contact your sales representative for details on models with safety standard certification.
Model Number Structure
Model Number Legend
D4N-@@@@
1 2 3
1. Conduit/Connector size
1: Pg13.5 (1-conduit)
2: G1/2 (1-conduit)
3: 1/2-14NPT (1-conduit)
4: M20 (1-conduit)
5: Pg13.5 (2-conduit)
6: G1/2 (2-conduit)
7: 1/2-14NPT (2-conduit)
8: M20 (2-conduit)
9: M12 connector (1-conduit)
2. Built-in Switch
1: 1NC/1NO (snap-action)
2: 2NC (snap-action)
A: 1NC/1NO (slow-action) B: 2NC (slow-action)
C: 2NC/1NO (slow-action) D: 3NC (slow-action)
E: 1NC/1NO (MBB contact-/-slow-action)
F: 2NC/1NO (MBB contact-/-slow-action)
3. Head and Actuator
20: Roller lever (resin lever, resin roller)
22: Roller lever (metal lever, resin roller)
25: Roller lever (metal lever, metal roller)
26: Roller lever (metal lever, bearing roller)
2G: Adjustable roller lever, form lock (metal lever, resin roller)
2H: Adjustable roller lever, form lock (metal lever, rubber roller)
31: Top plunger
32: Top roller plunger
62: One-way roller arm lever (horizontal)
72: One-way roller arm lever (vertical)
80: Cat whisker
87: Plastic rod
RE: Fork lever lock (right operation) LE: Fork lever lock (left operation)
D4N
G-219

Datasheet - PDF

Title:Language:Size:Type:
pdf1-mostradoLimit switch, One-way roller arm lever horizontal, 1NC/1NO slow-action, 1NC/1NO - OMRON - D4N-8AEnglish2 Mbytespdf1-mostradoLimit switch, One-way roller arm lever horizontal, 1NC/1NO slow-action, 1NC/1NO - OMRON - D4N-8A
pdf2-mostradoLimit switch, One-way roller arm lever horizontal, 1NC/1NO slow-action, 1NC/1NO - OMRON - D4N-8AEnglish2 Mbytespdf1-mostradoLimit switch, One-way roller arm lever horizontal, 1NC/1NO slow-action, 1NC/1NO - OMRON - D4N-8A
