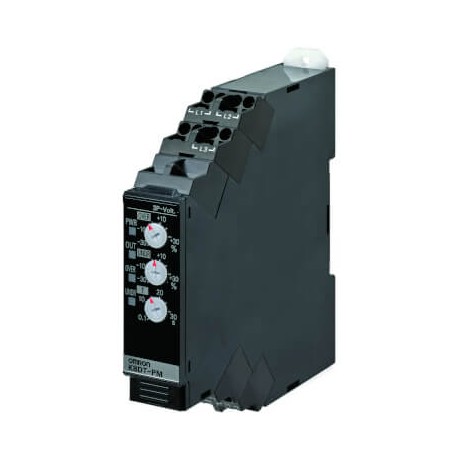

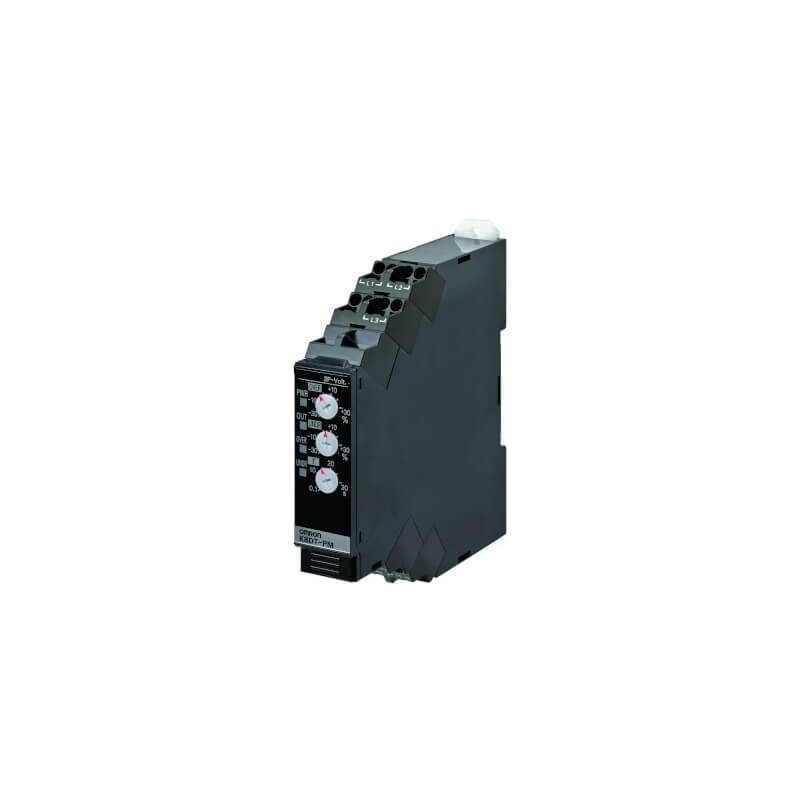

K8DT-PM2CN K8DT0044M K8DTPM2CN OMRON Three-phase Voltage Max / Min+Sequence+Per phase, 380-480AC SPDT 17.5 m..
K8DT-PM2CN
K8DT0044M
K8DTPM2CN
OMRON
Three-phase Voltage Max / Min+Sequence+Per phase, 380-480AC SPDT 17.5 mm Push-in+
Monitoring relay 17.5mm wide, over/under voltage, phase sequence and loss, 3-phase 3-wire, 380 to 480 VAC, 1 x SPDT
Relays > Phase monitoring relay
Monitoring Relays > K8DT
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Spring clamp connection |
| Voltage type (supply voltage) (EF002991) | AC |
| With detachable clamps (EF003340) | No |
| Phase imbalance monitoring (EF003416) | No |
| Phase sequence monitoring (EF003412) | No |
| Function under voltage detection (EF003414) | Yes |
| Function over voltage detection (EF003415) | Yes |
| Phase failure detection (EF003413) | Yes |
| Number of contacts as change-over contact (EF008257) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| Width (EF000008) | 17.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 90 mm |
| Max. permitted off-delay time (EF008191) | 0.25 s |
| Depth (EF000049) | 90 mm |
| Supply voltage AC 50 Hz (EF007532) | 380 V |
| Supply voltage AC 60 Hz (EF007533) | 380 V |
| Voltage measuring range (EF002486) | 380 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| K8DT-PM2CN K8DTPM2CN K8DT0044M EN_K8DT-PM2CN.pdf | 4 Mbytes |
|
| K8DT-PM2CN K8DTPM2CN K8DT0044M k8dt_brochure_en.pdf | 2 Mbytes |
|
