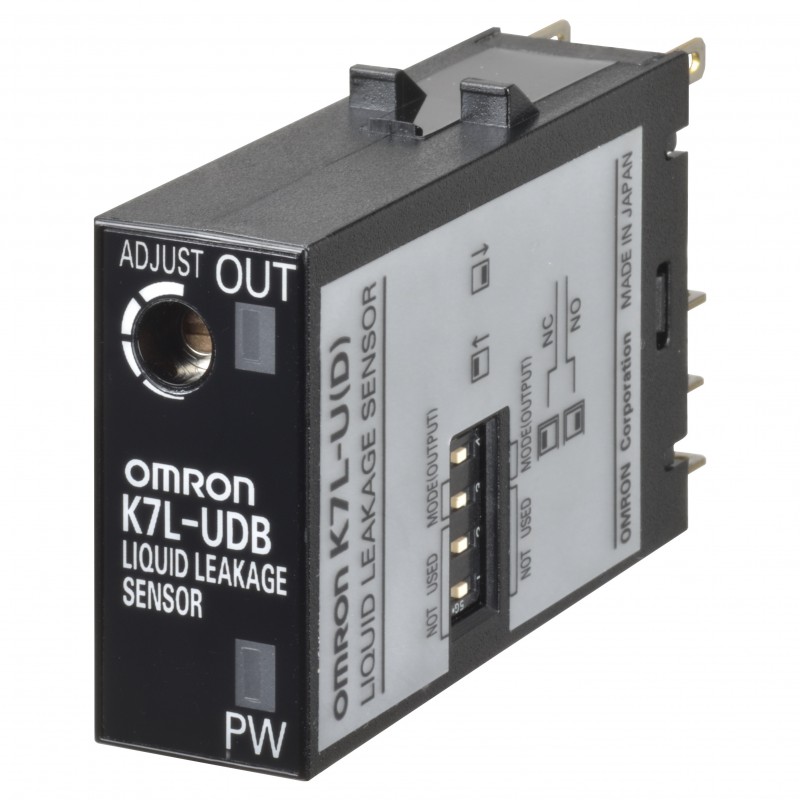

K7L-UB K7L 3002F K7LUB OMRON Leak Detector liquids, 1Mohm Long dist
K7L-UB
K7L 3002F
K7LUB
OMRON
Leak Detector liquids, 1Mohm Long dist
Liquid Leak Detector, 1Mohm Long Dist
Liquid leakage sensor, conductive, minature plug-in, adjustable sensitivity settings - 1M ohm, Long distance wiring, Black color
Relays > (Fill) level monitoring relay
Monitoring Relays > K7L
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲- Operation range: Up to 50 MΩ
- Four sensing ranges available
- Detection method: Conductive
- Two LEDs: Green for power supplied, red for output indication
- Conforms to EMC and LVD Directives, UL/CSA approved
| Feature Name | Feature Value |
|---|---|
| Physical measurement principle (EF008238) | Conductive |
| Type of electric connection (EF003961) | Plug-in connection |
| Voltage type (supply voltage) (EF002991) | DC |
| With detachable clamps (EF003340) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Width (EF000008) | 15.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Max. permitted operate delay time (EF008194) | 0.8 s |
| Height (EF000040) | 90 mm |
| Max. permitted off-delay time (EF008191) | 0.8 s |
| Depth (EF000049) | 83 mm |
| Number of inputs for electrodes (EF003427) | 2 |
| Supply voltage DC (EF007534) | 12 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| K7L-UB K7LUB K7L 3002F ES_K7L-AT50.pdf | 7 Mbytes |
|
| K7L-UB K7LUB K7L 3002F f049_k7l_at50d_liquid_leakage_sensor_amplifiers_datasheet_en.pdf | 2 Mbytes |
|
