J73MC-W-10
J73M5001M
J73MCW10
OMRON
1
Available Ship on today

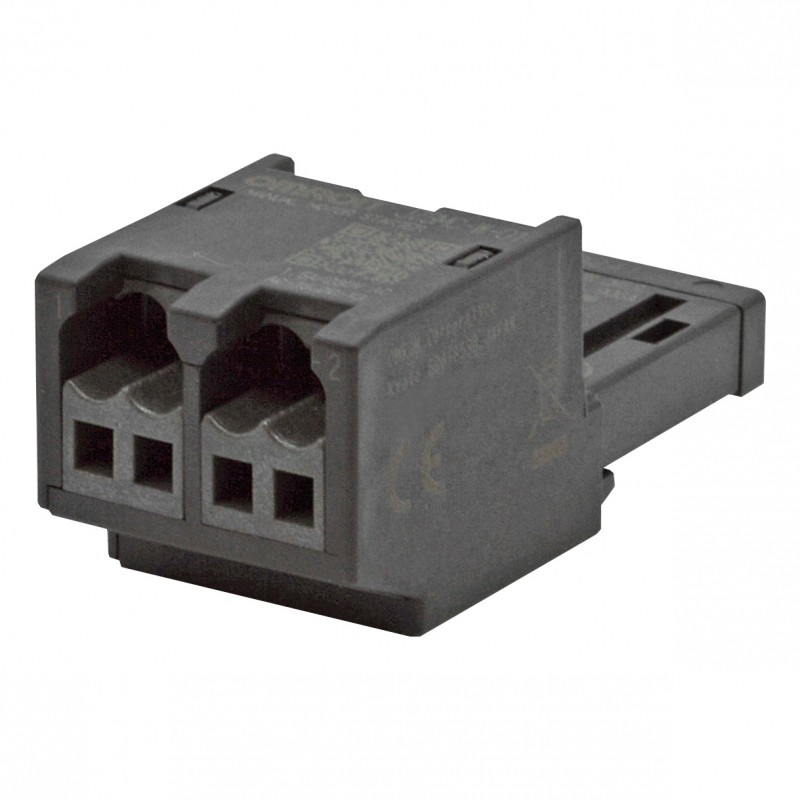

Auxiliary Contact Module for MMS (MPCB), Push-In and Plus Terminals
Low Voltage Switchgear > J7MN Motor Protector
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Rated current (A)(Values in () are the currentsetting range) | Order code |
---|---|
0.16 (0.1-0.16) | J7MC-3P-E16 |
0.25 (0.16-0.25) | J7MC-3P-E25 |
0.40 (0.25-0.4) | J7MC-3P-E4 |
0.63 (0.4-0.63) | J7MC-3P-E63 |
1 (0.63-1) | J7MC-3P-1 |
1.6 (1-1.6) | J7MC-3P-1E6 |
2.5 (1.6-2.5) | J7MC-3P-2E5 |
4 (2.5-4) | J7MC-3P-4 |
6.3 (4-6.3) | J7MC-3P-6 |
10 (6.3-10) | J7MC-3P-10 |
13 (9-13) | J7MC-3P-13 |
16 (11-16) | J7MC-3P-16 |
20 (14-20) | J7MC-3P-20 |
Rated current (A) (Values in () are the currentsetting range) | Order code |
---|---|
0.16 (0.1-0.16) | J7MC-3R-E16 |
0.25 (0.16-0.25) | J7MC-3R-E25 |
0.40 (0.25-0.4) | J7MC-3R-E4 |
0.63 (0.4-0.63) | J7MC-3R-E63 |
1 (0.63-1) | J7MC-3R-1 |
1.6 (1-1.6) | J7MC-3R-1E6 |
2.5 (1.6-2.5) | J7MC-3R-2E5 |
4 (2.5-4) | J7MC-3R-4 |
6.3 (4-6.3) | J7MC-3R-6 |
10 (6.3-10) | J7MC-3R-10 |
13 (9-13) | J7MC-3R-13 |
16 (11-16) | J7MC-3R-16 |
20 (14-20) | J7MC-3R-20 |
Auxiliary contact | Order code |
---|---|
SPST-1NO | J73MC-W-10 |
SPST-1NC | J73MC-W-01 |
Auxiliary contact | Order code |
---|---|
SPST-1NO | J73MC-K-10 |
SPST-1NC | J73MC-K-01 |
Minimum order (bag) | Order code | |
---|---|---|
1 (10 pcs./bag) | For main unit | J77MC-A |
For optional unit (For auxiliary contact unit and alarm contact unit) | J77MC-B |
Rated current 2 Maximum thermal current setting value. In [A] | Current setting range Rated operating current [A] | Instantaneous trip current [A] | 3-phase standard motor capacityand full load current 2 Full load currents are values for 200 VAC/ 50 Hz, 400 VAC / 50 Hz, 4P reference motors. Before applying them, check the full load current of the motor used. | Rated breakingcurrent Icu [kA] | |||||
---|---|---|---|---|---|---|---|---|---|
200-240 VAC | 380-440 VAC | ||||||||
Capacity [kW] | Current [A] | Capacity [kW] | Current [A] | 240 VAC | 415 VAC | 440 VAC | |||
0.16 | 0.1 to 0.16 | 2.1 | – | – | 0.02 | 0.1 | 100 | 100 | 100 |
0.25 | 0.16 to 0.25 | 3.3 | 0.03 | 0.24 | 0.06 | 0.21 | |||
0.4 | 0.25 to 0.4 | 5.2 | 0.06 | 0.37 | 0.1 | 0.34 | |||
0.63 | 0.4 to 0.63 | 8.2 | --- | --- | 0.12 | 0.41 | |||
1 | 0.63 to 1 | 13 | 0.1 | 0.68 | 0.2 | 0.65 | |||
1.6 | 1 to 1.6 | 20.8 | 0.2 | 1.3 | 0.4 | 1.15 | |||
2.5 | 1.6 to 2.5 | 32.5 | 0.4 | 2.3 | 0.75 | 1.8 | |||
4 | 2.5 to 4 | 52 | 0.75 | 3.5 | 1.5 | 3.5 | |||
6.3 | 4 to 6.3 | 81.9 | – | – | 2.2 | 4.8 | 50 | ||
10 | 6.3 to 10 | 130 | 1.5 | 6.9 | 3.7 | 7.8 | 15 | ||
2.2 | 9.5 | ||||||||
13 | 9 to 13 | 169 | 2.2 | 9.5 | 5.5 | 10.5 | 50 | 10 | |
16 | 11 to 16 | 208 | 3.7 | 15.5 | 7.5 | 13.5 | 25 | ||
20 | 14 to 20 | 260 | 3.7 | 15.5 | 11 | 20 | 50 |
Rated current 2 Maximum thermal current setting value. In [A] | Current setting range Rated operating current [A] | Instantaneous trip current [A] | 3-phase standard motor capacityand full load current 2 Full load currents are values for 200 VAC/ 50 Hz, 400 VAC / 50 Hz, 4P reference motors. Before applying them, check the full load current of the motor used. | Rated breakingcurrent Icu [kA] | |||||
---|---|---|---|---|---|---|---|---|---|
200-240 VAC | 380-440 VAC | ||||||||
Capacity [kW] | Current [A] | Capacity [kW] | Current [A] | 240 VAC | 415 VAC | 440 VAC | |||
0.16 | 0.1 to 0.16 | 2.1 | – | – | 0.02 | 0.1 | 100 | 100 | 100 |
0.25 | 0.16 to 0.25 | 3.3 | 0.03 | 0.24 | 0.06 | 0.21 | |||
0.4 | 0.25 to 0.4 | 5.2 | 0.06 | 0.37 | 0.1 | 0.34 | |||
0.63 | 0.4 to 0.63 | 8.2 | --- | --- | 0.12 | 0.41 | |||
1 | 0.63 to 1 | 13 | 0.1 | 0.68 | 0.2 | 0.65 | |||
1.6 | 1 to 1.6 | 20.8 | 0.2 | 1.3 | 0.4 | 1.15 | |||
2.5 | 1.6 to 2.5 | 32.5 | 0.4 | 2.3 | 0.75 | 1.8 | |||
4 | 2.5 to 4 | 52 | 0.75 | 3.5 | 1.5 | 3.5 | |||
6.3 | 4 to 6.3 | 81.9 | – | – | 2.2 | 4.8 | |||
10 | 6.3 to 10 | 130 | 1.5 | 6.9 | 3.7 | 7.8 | 50 | ||
2.2 | 9.5 | ||||||||
13 | 9 to 13 | 169 | 2.2 | 9.5 | 5.5 | 10.5 | |||
16 | 11 to 16 | 208 | 3.7 | 15.5 | 7.5 | 13.5 | 50 | 35 2 JEM1195 breaking duty"O", single time breaking capacity is 50 kA. | |
20 | 14 to 20 | 260 | 3.7 | 15.5 | 11 | 20 |
Model | J7MC-3P-⬜ (standardtype) | J7MC-3R-⬜ (high-performancetype) | ||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Item | ||||||||||||||||||||||||||
Switch type | Rocker switch | Rotary switch | ||||||||||||||||||||||||
Number ofpoles | 3 | |||||||||||||||||||||||||
Rated currentIn | 0.16 to 20 A | |||||||||||||||||||||||||
Rated operationalvoltage Ue | 200 to 690 V | |||||||||||||||||||||||||
Rated frequency | 50/60 Hz | |||||||||||||||||||||||||
Rated insulationvoltage | 690VAC | |||||||||||||||||||||||||
Rated impulsedielectric strength | 6 kV | |||||||||||||||||||||||||
Use category | IEC 60947-2 (circuit breaker), JIS C 8201-2 | Cat.A | ||||||||||||||||||||||||
IEC 60947-4-1 (motor starter), JIS C 8201-4-1 | AC-3 | |||||||||||||||||||||||||
Trip class(IEC 60947-4-1/JIS C 8201-4-1) | 10 Trips within 4 minutes at150% Ie on hot start, trips in 4 to 10 seconds at 720% Ie on coldstart | |||||||||||||||||||||||||
Instantaneoustrip characteristics | 13 x Ie max. | |||||||||||||||||||||||||
Power loss(3-phase reference value) | Rated current 0.16 to 2.5 A: 6 W Rated current 4 to 6.3 A: 6.5 W Rated current 10 to 20 A: 7 W | Rated current 0.16 to 1.6 A: 6 W Rated current 2.5 to 4 A: 6.5 W Rated current 6.3 to 20 A: 7 W | ||||||||||||||||||||||||
Endurance | Mechanical | 100,000 cycles In=0.16 to 20A | ||||||||||||||||||||||||
Electrical | 100,000 cycles In=0.16 to 20A | |||||||||||||||||||||||||
Number ofterminal insertions and removals [cycles] | 20 | |||||||||||||||||||||||||
Maximum operatefrequency (motor starts) [cycles/hour] | 25 | |||||||||||||||||||||||||
Phase failureprotection | Yes | |||||||||||||||||||||||||
Trip indicator | Yes | |||||||||||||||||||||||||
Test tripfunction | Yes | |||||||||||||||||||||||||
Rated limit breaking capacity Icu: Rated limit breaking capacity [kA] (Breaking duty O-CO) Ics: Rated operating breaking capacity [kA] (Breaking duty O-CO-CO) Ics=100%Icu (Icu=100 kA) | Rated operational current Ie Current setting [A] | IEC 60947-2/JIS C 8201-2 | UL | IEC 60947-2/JIS C 8201-2 | UL | |||||||||||||||||||||
240 V 200 V | 415 V 400 V | 460 V 440 V | 500 V | 690 V 600 V | 480 V | 240 V 200 V | 415 V 400 V | 460 V 440 V | 500 V | 690 V 600 V | 480 V | |||||||||||||||
Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics | |||
0.1-0.16 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.16-0.25 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.25-0.4 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.4-0.63 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
0.63-1 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
1-1.6 | 100 | 100 | 100 | 100 | 100 | 50 | 100 | 100 | 100 | 100 | 100 | 50 | ||||||||||||||
1.6-2.5 | 100 | 100 | 100 | 100 | 3 | 2 | 50 | 100 | 100 | 100 | 100 | 8 | 6 | 50 | ||||||||||||
2.5-4 | 100 | 100 | 100 | 100 | 3 | 2 | 50 | 100 | 100 | 100 | 100 | 8 | 6 | 50 | ||||||||||||
4-6.3 | 100 | 100 | 50 | 38 | 50 | 38 | 3 | 2 | 22 | 100 | 100 | 100 | 100 | 6 | 5 | 50 | ||||||||||
6.3-10 | 100 | 100 | 15 | 11 | 10 | 8 | 3 | 2 | 22 | 100 | 100 | 50 | 38 | 50 | 38 | 6 | 5 | 50 | ||||||||
9-13 | 100 | 50 | 38 | 10 | 8 | 6 | 5 | 3 | 2 | 22 | 100 | 100 | 50 | 38 | 42 | 32 | 6 | 5 | 50 | |||||||
11-16 | 100 | 25 | 19 | 10 | 8 | 6 | 5 | 3 | 2 | 22 | 100 | 50 | 38 | 35 2 JEM1195 breakingduty "O", single time breaking capacity is 50 kA | 27 | 10 | 8 | 4 | 3 | 50 | ||||||
14-20 | 50 | 38 | 25 | 19 | 10 | 8 | 6 | 5 | 3 | 2 | 22 | 100 | 50 | 38 | 35 2 JEM1195 breakingduty "O", single time breaking capacity is 50 kA | 27 | 10 | 8 | 4 | 3 | 50 | |||||
Vibrationresistance | Vibration: 10 to 55 Hz, acceleration:15 m/s2 | |||||||||||||||||||||||||
Shock resistance | Shock value 50 m/s2 | |||||||||||||||||||||||||
Degree ofprotection | IP20 (IEC60529) | |||||||||||||||||||||||||
Operatingtemperature | –20°C to +60°C | |||||||||||||||||||||||||
Ambient storagetemperature | –40°C to +80°C (no condensationor icing) | |||||||||||||||||||||||||
Relativehumidity | 95% RH max. (no condensationor icing) | |||||||||||||||||||||||||
Altitude | 2000m max. | |||||||||||||||||||||||||
Weight | Approx. 430 g | 460 g | ||||||||||||||||||||||||
ApplicableStandards | Safety Standard | EN 60947-2 (IEC 60947-2), UL60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T 14048.2, Electrical Appliances and Material Safety Act (Non-Specified Electrical Appliances and Materials) |
