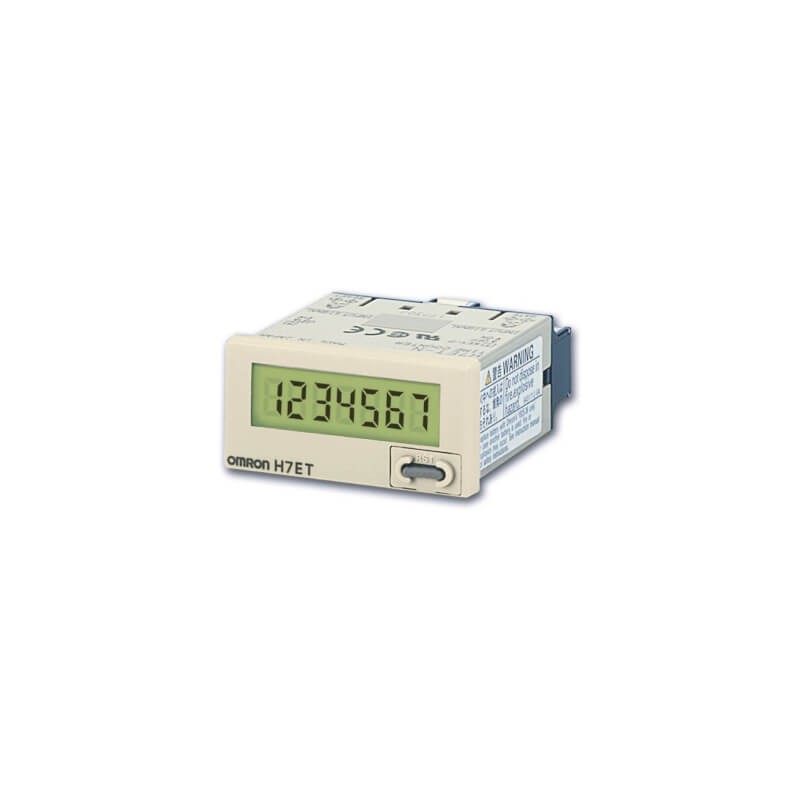

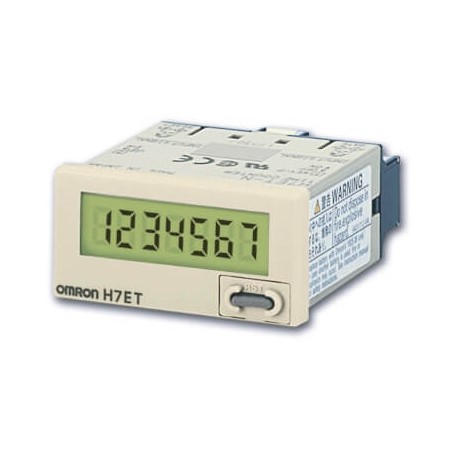

H7ET-NV-H H7E 8026A H7ETNVHOMI OMRON Time LCD ilum gray background input PNP/NPN
H7ET-NV-H
H7E 8026A
H7ETNVHOMI
OMRON
10
Time LCD ilum gray background input PNP/NPN
Time counter, 1/32DIN (48 x 24 mm), self-powered, LCD with backlight, 7-digit, 999999.9h / 3999d23.9h, VDC input, grey case
Meters > Hour meter
Counters > H7EC/R/T
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type | Totalising |
| Size | 1/32 DIN (48 x 24 mm) |
| Counting functions | Time count |
| Counting range | 0 - 999999.9 h |
| LCD backlight | With backlight |
| Number of digits | 7 |
| Body color | Light grey |
| Installation type | On-panel |
| Terminal type | Screw |
| Inputs | DC voltage |
| Product Width (unpacked) | 48 mm |
| Product Height (unpacked) | 24 mm |
| Product Depth (unpacked) | 48.5 mm |
| Feature Name | Feature Value |
|---|---|
| Voltage type (EF000187) | DC |
| Mounting method (EF000003) | Front mounting |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Model (EF000010) | Digital |
| Reset function (EF005207) | Reset-input |
| Operation indication (EF004881) | Yes |
| Mounting to max. wall thickness (EF004507) | 48.5 mm |
| Front plate width (EF004689) | 48 mm |
| Accuracy per day (EF006325) | 10 s |
| Number of digits (EF005555) | 7 |
| Front plate height (EF004690) | 24 mm |
| Width in number of modular spacings (EF002950) | 2.7 |
| Width (EF000008) | 48 mm |
| Built-in depth (EF000218) | 48.50 mm |
| Count area (EF005440) | 999999.9 h |
| Height (EF000040) | 24 mm |
| Input voltage (EF003840) | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H7ET-NV-H H7ETNVHOMI H7E 8026A EN_H7ET-N.pdf | 3 Mbytes |
|
