View larger Images are for illustrative purposes only. Please refer to data sheet for details.

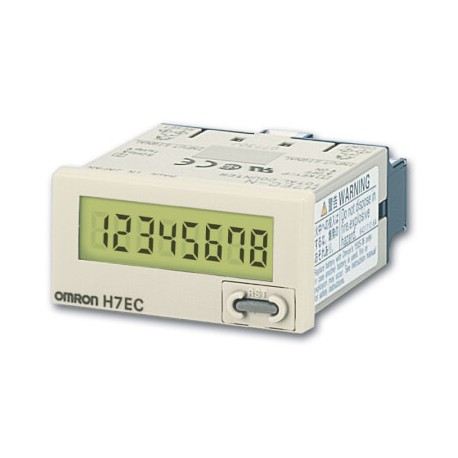

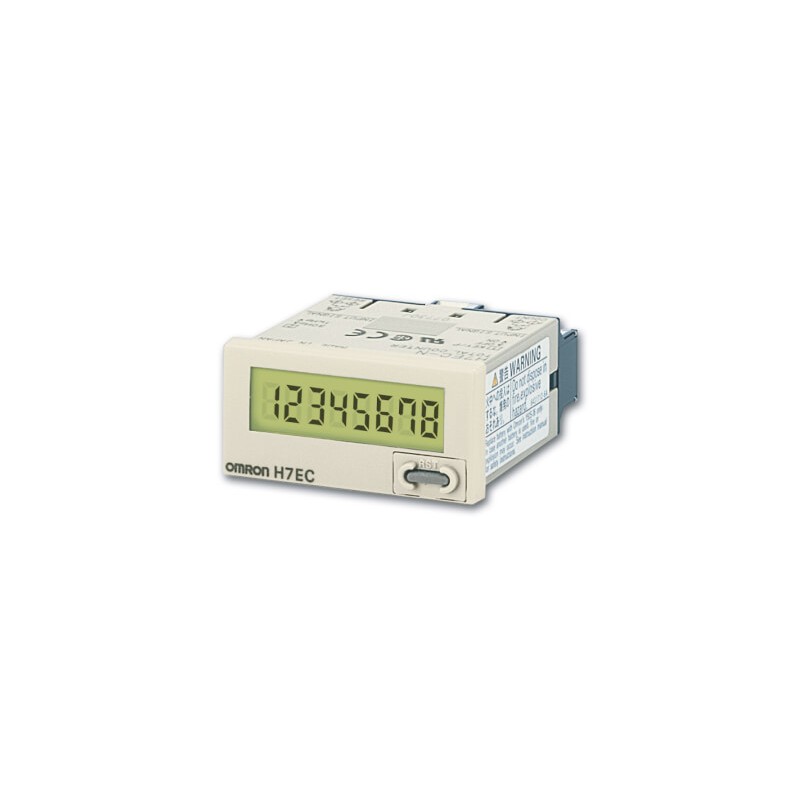

H7EC-NLP H7E 8008C H7ECNLPOMI OMRON Totalizer LCD to PCB 30Hz Ent. without tension

Name: H7EC-NLP H7E 8008C H7ECNLPOMI OMRON Totalizer LCD to PCB 30Hz Ent. without tension
Brand: OMRON
SKU: OMRH7E8008C
Price: 78.11 USD
Availability: OutOfStock

0/5 - 0 Opiniones

Reference: H7EC-NLP

Code: H7E 8008C

Catalog Number: H7ECNLPOMI

Manufacturer: OMRON

Description:

Totalizer LCD to PCB 30Hz Ent. without tension

LCD Totalizer for PCB 30Hz Ent. No Tension

PC board-use counter, Total counter, 1/32DIN (48 x 24 mm), External power supply, LCD, 8-digits, no-voltage input, 30 Hz max.counting speed, transpare

More details

Categories:
Devices for distribution board-/surface mounting > Impulse meter for installation

Counters > H7EC/R/T

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Guarantee, repair and return.

Total: $78.11

Unit price: $78.11

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers. Login or register and prices will be updated.

Calculate price by quantity

If our price is not the best, please ask us for a quote. Ask for a quotation

Viewed products

Best sellers

▲

More info

▲

Features

Self-powered LCD totaliser

The H7E series is available with large display with 8.6mm character height. It includes models with backlight for improved visibility in dimly lit places. The H7E family includes total counters, time counters, tachometers and PCB-mounted counters.

H 24 x W 48 x D 55.5mm
8 digits, 8.6mm character height
Black or light-grey housing
Dual input speed: 30Hz <-> 1kHz
Short body: all models have a depth of 48.5mm

Ordering information

Count input	Max. counting speed	Display	Order code
Count input	Max. counting speed	Display	Light grey body	Black body
No-voltage	30 Hz <-> 1 kHz (switchable)	7-segment LCD	H7EC-N	H7EC-N-B
PNP/NPN universal DC voltage input	30 Hz <-> 1 kHz (switchable)	7-segment LCD	H7EC-NV	H7EC-NV-B
PNP/NPN universal DC voltage input	30 Hz <-> 1 kHz (switchable)	7-segment LCD with backlight	H7EC-NV-H	H7EC-NV-BH
AC/DC multi-voltage input	20 Hz	7-segment LCD	H7EC-NFV	H7EC-NFV-B

Specifications

Item	H7EC-NV-_/H7EC-NV-_H	H7EC-NFV-_	H7EC-N-_
Operating mode	Up type
Mounting method	Flush mounting
External connections	Screw terminals, optional wire-wrap terminals
Number of digits	8
Display	7-segment LCD with or without backlight, zero suppression (character height: 8.6 mm)
Max. counting speed	30 Hz/1 kHz	20 Hz	30 Hz/1 kHz
Case color	Light grey or black (-B models)
Attachment	Waterproof packing, flush mounting bracket
Supply voltage	Backlight model: 24 VDC (0.3 W max.) (only for backlight) No-backlight model: Not required (powered by built-in battery)	Not required (powered by built-in battery)
Count input	High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (input impedance: Approx. 4.7 kΩ)	High (logic) level: 24 to 240 VAC/VDC, 50/60 Hz Low (logic) level: 0 to 2.4 VAC/VDC, 50/60 Hz	No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Reset input		No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Minimum signal width	20 Hz: 25 ms, 30 Hz: 16.7 ms, 1 KHz: 0.5 ms
Reset system	External reset and manual reset: Minimum signal width of 20 ms
Ambient temperature	Operating: -10 to 55°C (with no condensation or icing), storage: -25 to 65°C (with no condensation or icing)
Degree of protection	Front-panel: IP66, NEMA4, terminal block: IP20
Battery life (reference)	7 years min. with continuous input at 25°C (lithium battery)
Size in mm (H×W×D)	24×48×55.5

ETIM for 672689 Modular devices for distribution board/surface mounting (EC002300)
Feature Name	Feature Value
Voltage type (EF000187)	DC
Model (EF000010)	Built-in
Measuring mechanism (EF005015)	Digital
With reset function (EF006704)	Yes
Modular version (EF001126)	No
Number of semiconductor outputs with signalling function (EF003945)	0
Number of digits (EF005555)	8
Width in number of modular spacings (EF002950)	2.7
Width (EF000008)	44.8 mm
Accuracy class (EF001532)	99999999
Height (EF000040)	22.4 mm
Frequency input voltage (EF005735)	1000 Hz
Number of contact energized outputs with signalling function (EF003946)	0

Datasheet - PDF

▲

Title:	Size:	Type:
PDF CATALOGO OMRON AUTOMATION EN.pdf	19 Mbytes
PDF CATALOG OMRON 2024 EN.pdf	25 Mbytes
H7EC-NLP H7ECNLPOMI H7E 8008C m064_h7e_self_powered_totalizer_datasheet_en.pdf	3 Mbytes
