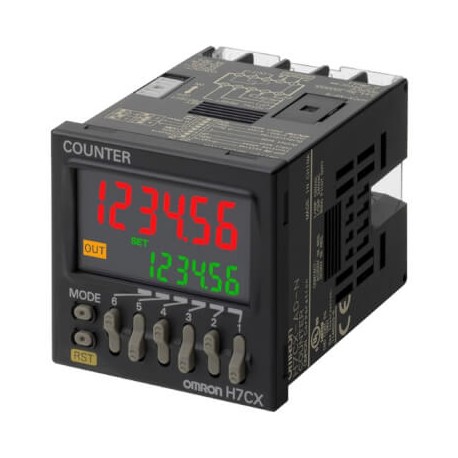

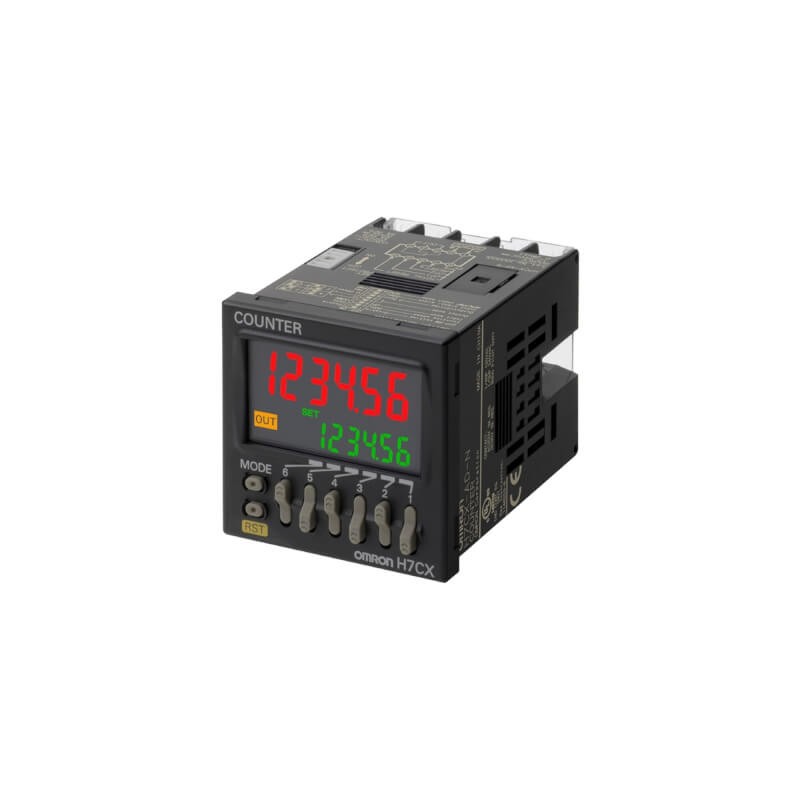

H7CX-AWSD-N 668608 OMRON SPDT Basic 12-24Vdc 6 dig. Output Trt. Conf. 2 et
668608
H7CXAWSDNOMI
OMRON
SPDT Basic 12-24Vdc 6 dig. Output Trt. Conf. 2 et
Counter, 1/16DIN (48 x 48mm), IP66, 6 preset & 6 actual count digits, multifunction: 1-stage/2-stage/total/batch/ dual/tachometer, two transistor outputs, 12-24VDC/24 VAC supply, includes colour change display function
Counters > H7CX
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Type | Pre-set counter |
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter |
| Counting range | -99999 - 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal | Screw |
| Output type | Transistor |
| Relay output | 0 |
| Transistor output | 2 |
| Inputs | DC voltage, No-voltage |
| Supply voltage DC | 12-24 V |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Depth | 59 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| H7CX-AWSD-N H7CXAWSDNOMI 668608 | 240 Kbytes |
 |
| H7CX-AWSD-N H7CXAWSDNOMI 668608 h5cx_h7cx_brochure_en.pdf | 395 Kbytes |
|
