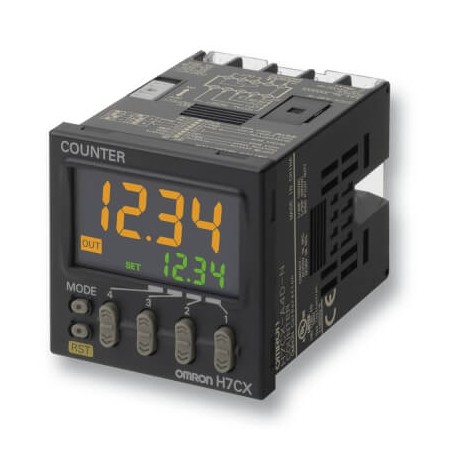

H7CX-A4D-N H7CX6015M H7CXA4DNOMI OMRON SPDT Basic 12-24Vdc 4 dig
H7CX-A4D-N
H7CX6015M
H7CXA4DNOMI
OMRON
SPDT Basic 12-24Vdc 4 dig
Counter, 1/16DIN (48 x 48mm), IP66, 4 preset & 4 actual count digits, multifunction:1-stage & total, SPST-NO 3 A relay output, 12-24 VDC/24 VAC supply, includes colour change display function
Counters > H7CX
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Specifications
| Type | Pre-set counter |
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
| Counting range | -999 - 9999 |
| LCD backlight | With backlight |
| Number of digits | 4 |
| Body color | Black |
| Installation type | On-panel |
| Terminal | Screw |
| Output type | Relay |
| Relay output | 1 |
| Transistor output | 0 |
| Inputs | DC voltage, No-voltage |
| Supply voltage DC | 12-24 V |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Depth | 59 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 19 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H7CX-A4D-N H7CXA4DNOMI H7CX6015M h5cx_h7cx_brochure_en.pdf | 395 Kbytes |
|
