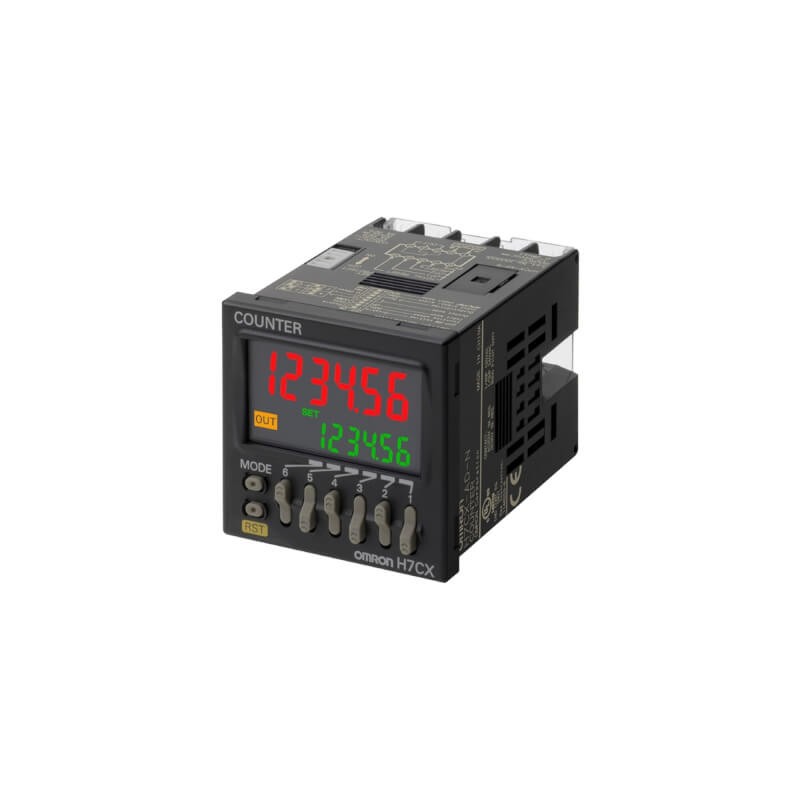

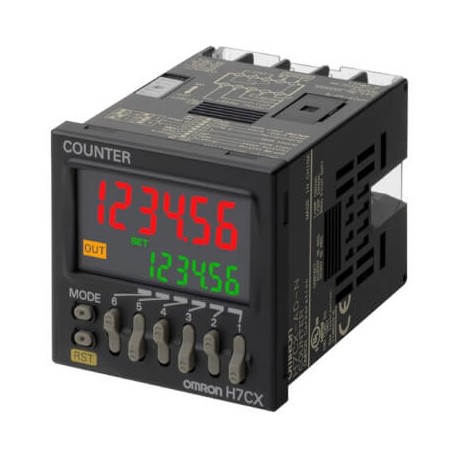

H7CX-A11D1-N 668595 OMRON SPDT Basic 6 dig. Salt. relay 12-24vdc/24vac 11pin
668595
H7CXA11D1NOMI
OMRON
SPDT Basic 6 dig. Salt. relay 12-24vdc/24vac 11pin
Counter, plug-in, 11-pin, DIN 48x48 mm, IP66, 6 preset & 6 actual count digits, multifunction: 1-stage & total, SPST-NO 3 A relay output, 12-24 VDC/24 VAC supply, 12 VDC aux. supply
Counters > H7CX
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Type | Pre-set counter |
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
| Counting range | -99999 - 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | Socket |
| Terminal | Plug-in |
| Output type | Relay |
| Relay output | 1 |
| Transistor output | 0 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 12-24 V |
| Speed | 10000 Hz |
| Width | 48 mm |
| Height | 48 mm |
| Depth | 63.7 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| H7CX-A11D1-N H7CXA11D1NOMI 668595 | 240 Kbytes |
 |
| H7CX-A11D1-N H7CXA11D1NOMI 668595 h5cx_h7cx_brochure_en.pdf | 395 Kbytes |
|
