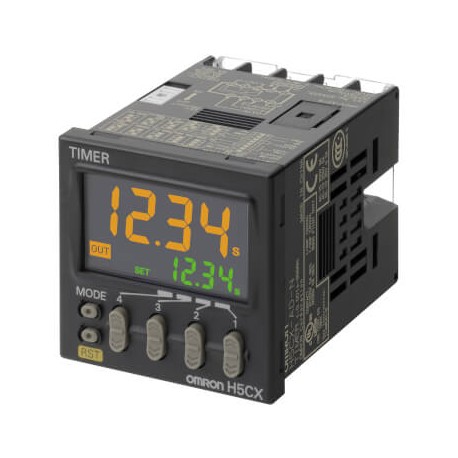

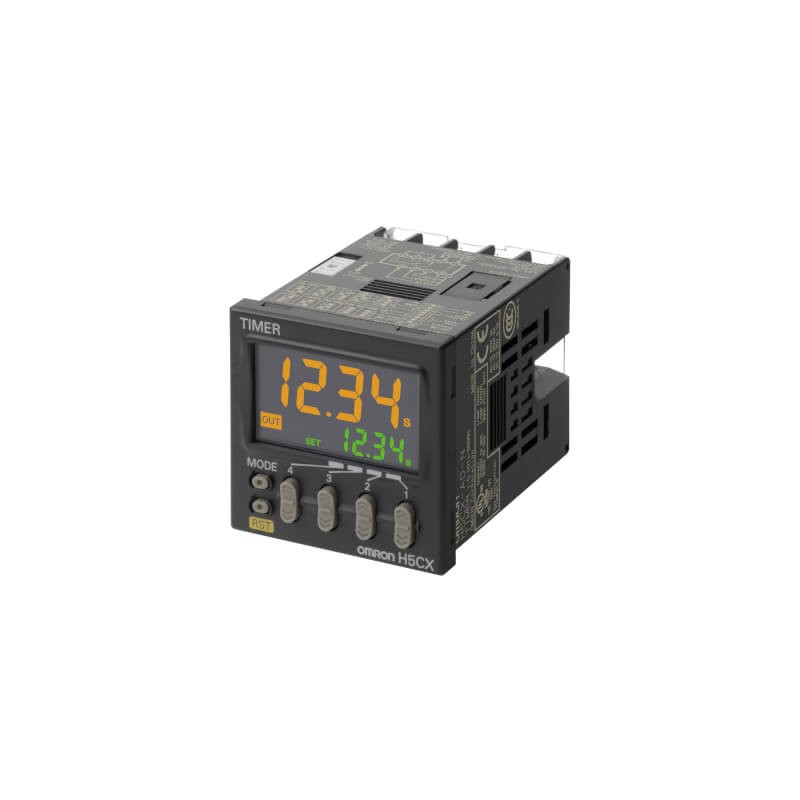

OMRON H5CX-L8SD-N H5CX6011M H5CXL8SDNOMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

H5CX-L8SD-N H5CX6011M H5CXL8SDNOMI OMRON SPDT Basic 12-24Vdc/24Vac Octal Transistor

Reference: H5CX-L8SD-N

Code: H5CX6011M

Catalog Number: H5CXL8SDNOMI

Manufacturer: OMRON

Description:

SPDT Basic 12-24Vdc/24Vac Octal Transistor
Timer, plug-in, 8-pin, DIN48x48mm, IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), economy model, NPN/PNP/No voltage input selectable, 100mA 30VDC NPN transistor output, 12-24VDC/24VAC supply
Timer, plug-in, 8-pin, DIN48x48mm, IP66, 4 preset & 4 actual time digits, multi range 0.01s to 9999h (10 ranges), economy model, NPN/PNP/No voltage in

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H5CX

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Specifications

TypeDigital
Installation typeDIN Rail, On-panel, Socket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
TerminalPlug-in
Output typeTransistor
Time range0.001 s - 9999 h
Supply voltage AC24-24 V
Supply voltage DC12-24 V
Number of pin contact8
InputsReset (NPN), Signal (NPN)

ETIM for 668614 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueDC
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameFunction delay on de-energization (EF003401)
Feature valueYes
Feature nameSuitable as remote control (EF003362)
Feature valueNo
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueNo
Feature nameFunction pulse shaping (EF003403)
Feature valueYes
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueYes
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueNo
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueYes
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueYes
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueYes
Feature nameSuitable for front mounting (EF020288)
Feature valueYes
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueYes
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value1
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value48 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value58 mm
Feature nameDepth (EF000049)
Feature value84.8 mm
Feature nameNominal current (EF000001)
Feature value0.1 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value12 V
Feature nameOperating voltage DC (EF008208)
Feature value1.5 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value12 V
Feature nameTime range (EF003384)
Feature value0.1 s
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
