View larger

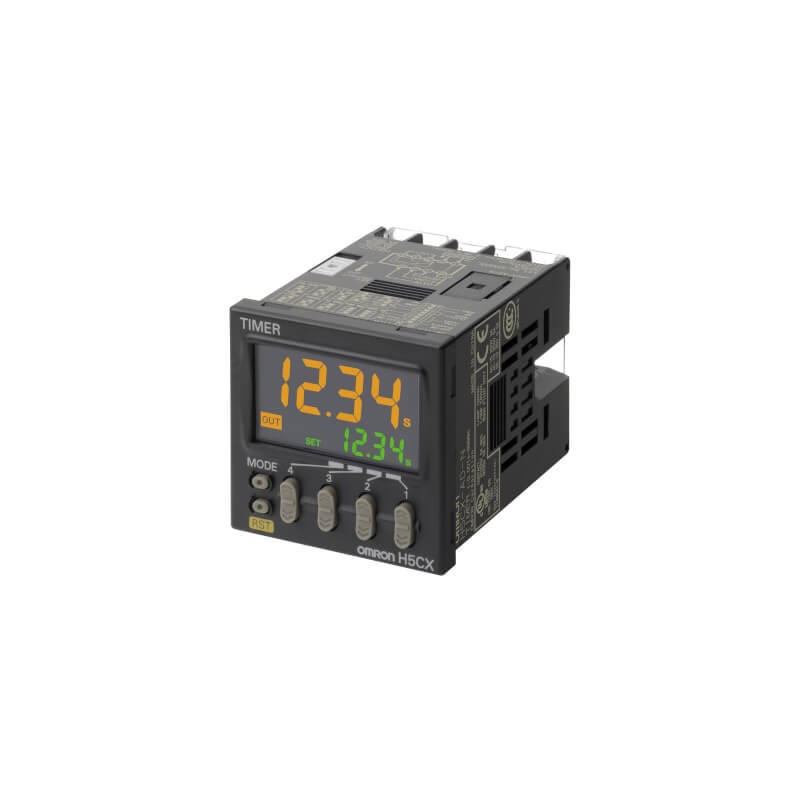

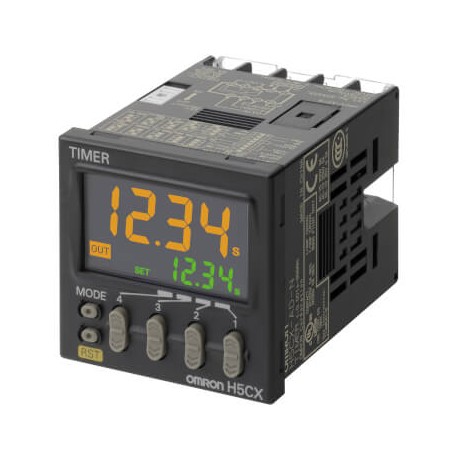

H5CX-L8D-N H5CX6010B H5CXL8DNOMI OMRON SPDT Basic 12-24Vdc/24Vac Octal
H5CX-L8D-N
H5CX6010B
H5CXL8DNOMI
OMRON
SPDT Basic 12-24Vdc/24Vac Octal
Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltag
Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltage input selectable, SPDT 5 A relay output, 12-24 VDC/24 VAC supply
Relays > Timer relay
Timers > H5CX
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲Specifications
| Type | Digital |
| Installation type | DIN Rail, On-panel, Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal | Plug-in |
| Output type | Relay |
| Contact description | SPDT |
| Time range | 0.001 s - 9999 h |
| Supply voltage AC | 24-24 V |
| Supply voltage DC | 12-24 V |
| Number of pin contact | 8 |
| Inputs | Reset (NPN), Signal (NPN) |
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Material of contact insert (EF008521) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Untreated |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Material contact (EF007544) | Other not-copper alloys |
| Function delay on de-energization (EF003401) | Yes |
| Suitable as remote control (EF003362) | No |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | Yes |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | Yes |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | Yes |
| Function delay-on energization (EF003374) | Yes |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | Yes |
| Suitable for front mounting (EF020288) | Yes |
| Clock function, starting with pulse, variable (EF003366) | Yes |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 48 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 58 mm |
| Depth (EF000049) | 84.8 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
| Operating voltage DC (EF008208) | 5 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| Time range (EF003384) | 0.1 s |
| Rated control supply voltage DC (EF003980) | 12 V |
| Operating voltage AC 50 Hz (EF008206) | 5 V |
| Operating voltage AC 60 Hz (EF008207) | 5 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H5CX-L8D-N H5CXL8DNOMI H5CX6010B DE_H5CX-AD-N.pdf | 7 Mbytes |
|
| H5CX-L8D-N H5CXL8DNOMI H5CX6010B h5cx_h7cx_brochure_en.pdf | 395 Kbytes |
|
