OMRONTimersH5CXH5CX-L8-N H5CX6008M H5CXL8NOMI OMRON SPDT Basic 100-240Vac Octal

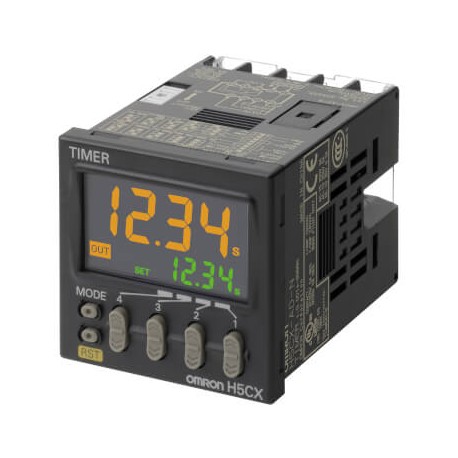

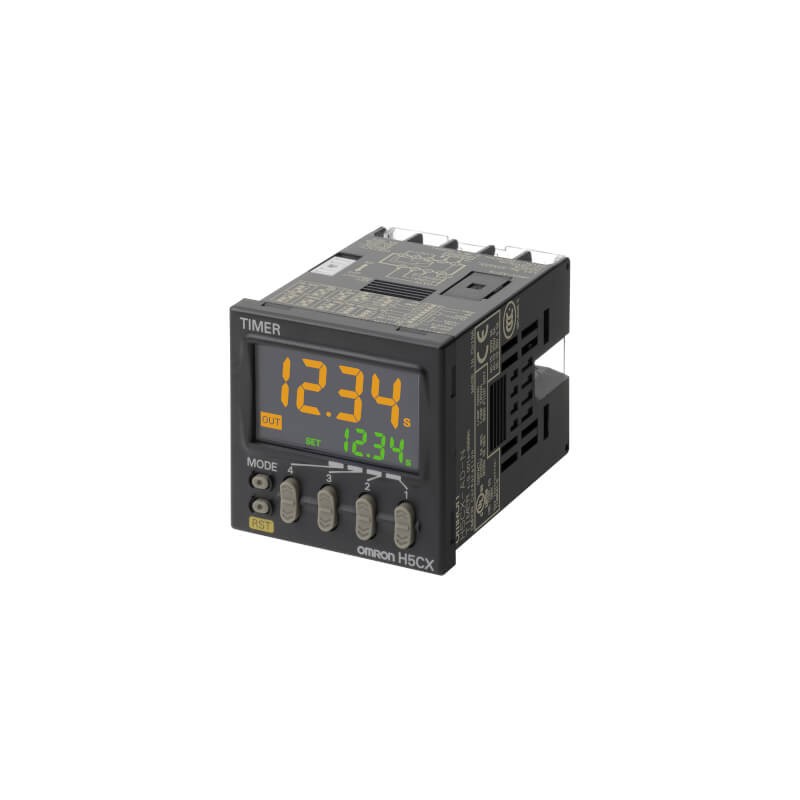

OMRON H5CX-L8-N H5CX6008M H5CXL8NOMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

H5CX-L8-N H5CX6008M H5CXL8NOMI OMRON SPDT Basic 100-240Vac Octal

Reference: H5CX-L8-N

Code: H5CX6008M

Catalog Number: H5CXL8NOMI

Manufacturer: OMRON

Description:

SPDT Basic 100-240Vac Octal
Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltag
Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltage input selectable, SPDT 5 A relay output, 100-240 VAC supply
Timer, plug-in, 8-pin, DIN 48x48 mm, IP66, 4 preset & 4 actual time digits, multi range 0.01 s to 9999 h (10 ranges), economy model, NPN/PNP/No voltag

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H5CX

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Specifications

TypeDigital
Installation typeDIN rail, On-panel, Socket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Output typeRelay
Contact descriptionSPDT
Time range0.001 s - 9999 h
Supply voltage AC100-240 V
Number of pin contact8
InputsReset (NPN), Signal (NPN)

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48Protective cover for DIN48x48mm device, hard plastic (shallow)
Y92A-48F1Protective cover for DIN 48 x 48 mm timer and counter, soft plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-45Panel adaptor, 48 x 48 device into 67 x 67 hole
Y92S-29Waterproof packing for use with 48x48mm devices and Y92F30 flush mounting adapter

ETIM for 668607 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameMaterial of contact surface (EF004020)
Feature valueUntreated
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameMaterial contact (EF007544)
Feature valueOther not-copper alloys
Feature nameFunction delay on de-energization (EF003401)
Feature valueYes
Feature nameSuitable as remote control (EF003362)
Feature valueNo
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueNo
Feature nameFunction pulse shaping (EF003403)
Feature valueYes
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueYes
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueNo
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueYes
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueYes
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueYes
Feature nameSuitable for front mounting (EF020288)
Feature valueYes
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueYes
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value1
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value48 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value58 mm
Feature nameDepth (EF000049)
Feature value84.8 mm
Feature nameNominal current (EF000001)
Feature value5 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value100 V
Feature nameOperating voltage DC (EF008208)
Feature value5 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value100 V
Feature nameTime range (EF003384)
Feature value0.1 s
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value5 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value5 V
