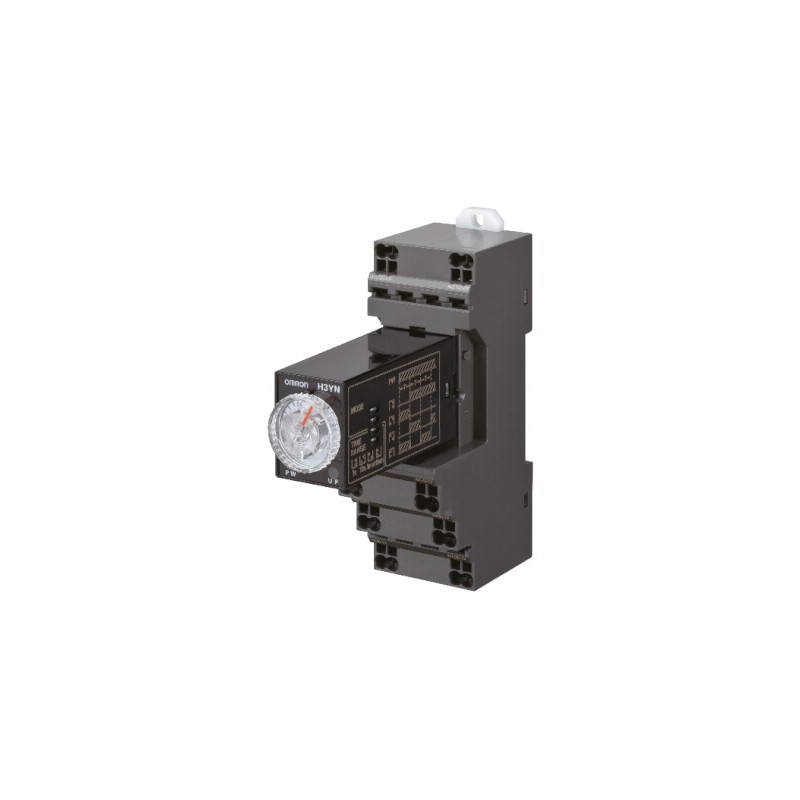

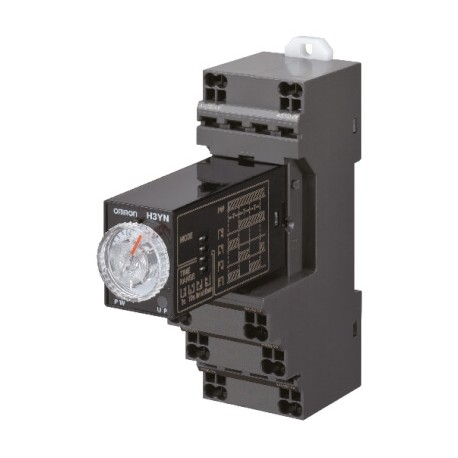

H3YN-2-B DC48 H3YN1105H H3YN2BDC48 OMRON DPDT 0.1 s-10m 5A 48 Vdc Coil up
H3YN-2-B DC48
H3YN1105H
H3YN2BDC48
OMRON
DPDT 0.1 s-10m 5A 48 Vdc Coil up
Timer, plug-in, 8-pin, multifunction, 0.1s-10m, DPDT, 5 A, 48 VDC Supply, Black, Top coil side
Relays > Timer relay
Timers > H3Y
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Best sellers
▲More info
▲Compact, Multi-function Timers with Plug-in socket
- The Plug-in socket with Push-in plus technology, PYF-__-PU is available for easy wiring.
- Easy replacement and reduces your maintenance time.
- Space saving by Slim design 21.5 mm width.
- Large transparent time setting knob facilitates time setting.
Ordering information
Note:There are other models with Screw socket compatibility available on request (grey version). Please contact your Omron representative for special request.
Accessories
Plug-in Socket
Hold-down clip
Specifications
0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. selectable) | 0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max. selectable) | |
Rated supply voltage1 | 24, 100 to 120, 200 to 230 VAC (50/60 Hz), 12, 24, 48, 100-110, 125 VDC | |
ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch | ||
85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)2 | ||
DPDT: | ||
Min. power-opening time: 0.1 s max. (including halfway reset) | ||
Operating: −10°C to 55°C (with no icing) | ||
| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Degree of protection (IP) (EF005474) | IP40 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | Plug-in connection |
| Function delay on de-energization (EF003401) | No |
| Suitable as remote control (EF003362) | No |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Complete with socket (EF003359) | Yes |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | Yes |
| Clock function, starting with pause, variable (EF003365) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Function delay-on energization (EF003374) | Yes |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | No |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 2 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 2 |
| Number of outputs, delayed, normally closed contact (EF006838) | 2 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 21.5 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 28 mm |
| Depth (EF000049) | 56.6 mm |
| Operating voltage DC (EF008208) | 0 V |
| Time range (EF003384) | 0.1 s |
| Rated control supply voltage DC (EF003980) | 48 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H3YN-2-B DC48 H3YN2BDC48 H3YN1105H panel_building_brochure_en.pdf | 3 Mbytes |
|
