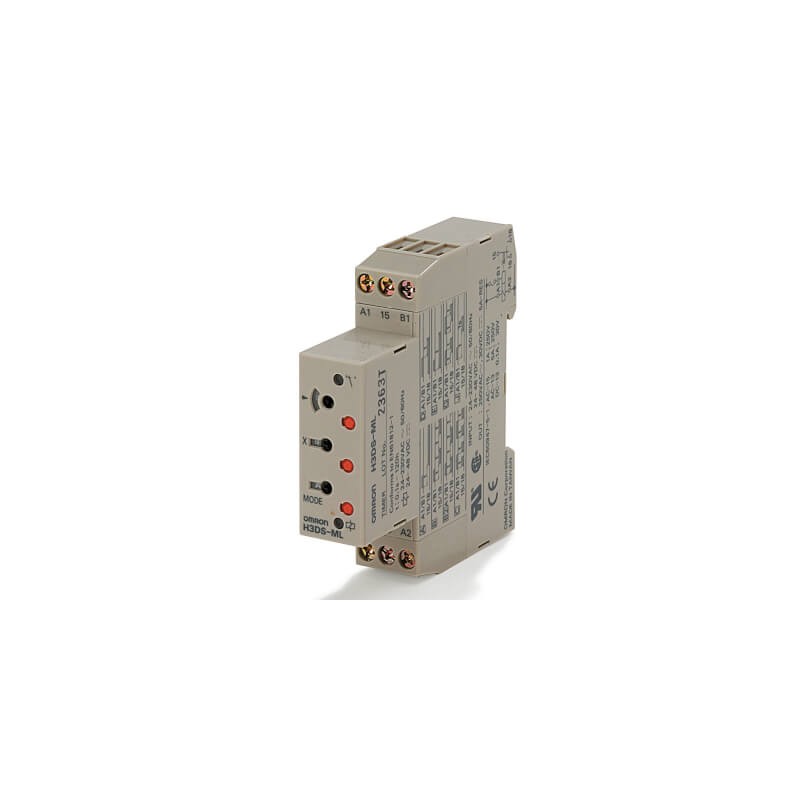

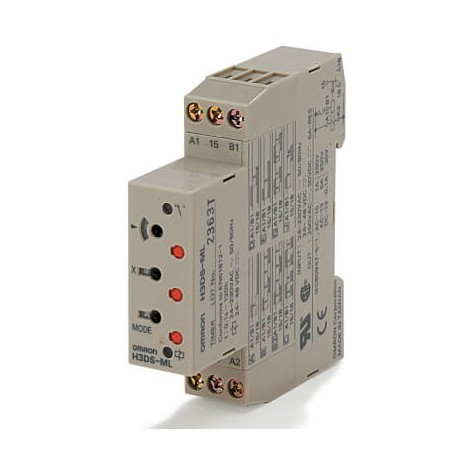

H3DS-ML AC/DC H3DS8011F H3DSMLACDCOMI OMRON 17.5 mm DIN Multi-function

Reference: H3DS-ML AC/DC

Code: H3DS8011F

Catalog Number: H3DSMLACDCOMI

Manufacturer: OMRON

Description:

17.5 mm DIN Multi-function
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H3DS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 55,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

TypeAnalog
Installation typeDIN rail
FunctionsMulti-functional
Size17.5 mm
Terminal typeScrew
Operating modeFlicker OFF Start (Power ON Start), Flicker OFF Start (Signal Start), Flicker ON Start (Power ON Start), Flicker ON Start (Signal Start), Interval (Power ON Start), Interval (Signal Start), ON Delay (Power ON Start), ON Delay (Signal Start), One-shot Output (Power ON Start), One-shot Output (Signal Start), Signal ON/OFF Delay
Output typeRelay
Contact descriptionSPDT
Time range0.1 s - 120 h
Supply voltage AC24-230 V
Supply voltage DC24-48 V

Accessories

Y92S-38Adjustment and locking tool for H3DS

ETIM for 670946 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameFunction delay on de-energization (EF003401)
Feature valueYes
Feature nameSuitable as remote control (EF003362)
Feature valueYes
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueNo
Feature nameFunction pulse shaping (EF003403)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueNo
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueNo
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueYes
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueNo
Feature nameSuitable for front mounting (EF020288)
Feature valueNo
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueYes
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value1
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value22.5 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value79 mm
Feature nameDepth (EF000049)
Feature value100 mm
Feature nameNominal current (EF000001)
Feature value5 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameOperating voltage DC (EF008208)
Feature value0 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameTime range (EF003384)
Feature value0.1 s
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value0 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value0 V
