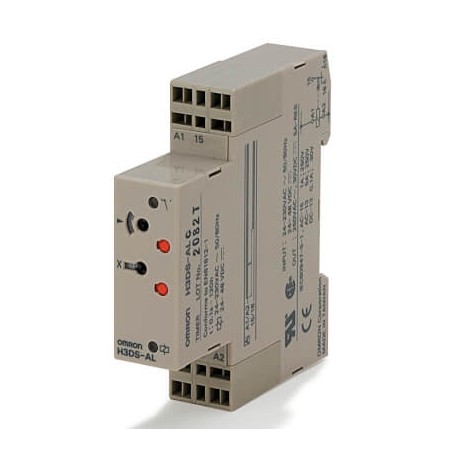

OMRON H3DS-ALC H3DS8003E H3DSALCBYOKXOMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

H3DS-ALC H3DS8003E H3DSALCBYOKXOMI OMRON 17.5 mm DIN Basic Delay ON a fast Connection

Reference: H3DS-ALC

Code: H3DS8003E

Catalog Number: H3DSALCBYOKXOMI

Manufacturer: OMRON

Description:

17.5 mm DIN Basic Delay ON a fast Connection
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, lockable settings, screwless terminals, no-input available,
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, lockable settings, screwless terminals, no-input available, A single operating mode

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H3DS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 46,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

TypeAnalogInstallation typeDIN railFunctionsSingle functionSize17.5 mmTerminal typePush-inOperating modeON Delay (Power ON Start)Output typeRelayContact descriptionSPDTTime range0.1 s - 120 hSupply voltage AC24-230 VSupply voltage DC24-48 V

ETIM for 670938 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameFunction delay on de-energization (EF003401)
Feature valueNo
Feature nameSuitable as remote control (EF003362)
Feature valueYes
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueNo
Feature nameFunction pulse shaping (EF003403)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueYes
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueNo
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueNo
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueNo
Feature nameSuitable for front mounting (EF020288)
Feature valueNo
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueNo
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value1
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value17.5 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value79 mm
Feature nameDepth (EF000049)
Feature value100 mm
Feature nameNominal current (EF000001)
Feature value5 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameOperating voltage DC (EF008208)
Feature value0 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameTime range (EF003384)
Feature value0.1 s
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value0 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value0 V
