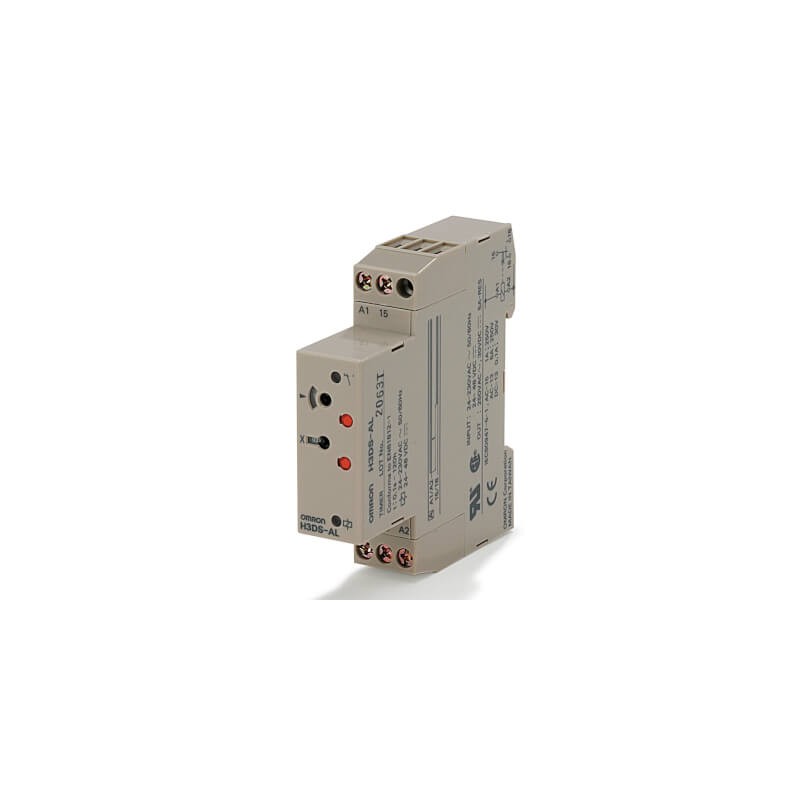

OMRON H3DS-AL AC/DC H3DS8009D H3DSALACDCOMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

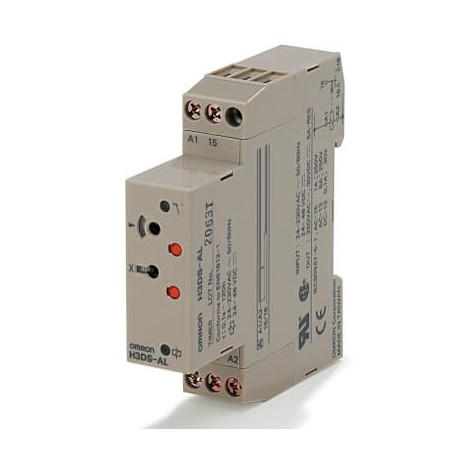

H3DS-AL AC/DC H3DS8009D H3DSALACDCOMI OMRON 17.5 mm DIN Basic-Delay ON

Reference: H3DS-AL AC/DC

Code: H3DS8009D

Catalog Number: H3DSALACDCOMI

Manufacturer: OMRON

Description:

17.5 mm DIN Basic-Delay ON
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A singl
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A single operating mode, screw terminal type

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H3DS

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 44,06 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Specifications

TypeAnalog
Installation typeDIN rail
FunctionsSingle function
Size17.5 mm
Terminal typeScrew
Operating modeON Delay (Power ON Start)
Output typeRelay
Contact descriptionSPDT
Time range0.1 s - 120 h
Supply voltage AC24-230 V
Supply voltage DC24-48 V

Accessories

Y92S-38Adjustment and locking tool for H3DS

ETIM for 670944 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameMaterial of contact surface (EF004020)
Feature valueOther
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valueScrew connection
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameFunction delay on de-energization (EF003401)
Feature valueNo
Feature nameSuitable as remote control (EF003362)
Feature valueYes
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueNo
Feature nameFunction pulse shaping (EF003403)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueYes
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueNo
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueNo
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueNo
Feature nameSuitable for front mounting (EF020288)
Feature valueNo
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueNo
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value1
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value17.5 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value79 mm
Feature nameDepth (EF000049)
Feature value100 mm
Feature nameNominal current (EF000001)
Feature value5 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameOperating voltage DC (EF008208)
Feature value0 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameTime range (EF003384)
Feature value0.1 s
Feature nameRated control supply voltage DC (EF003980)
Feature value24 V
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value0 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value0 V

DATASHEET - PDF
