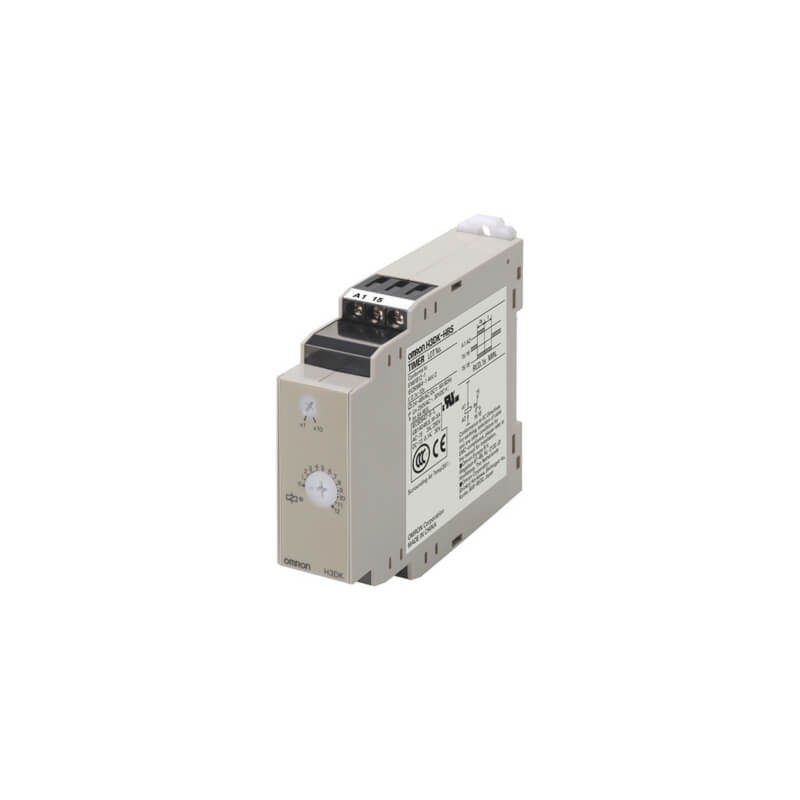

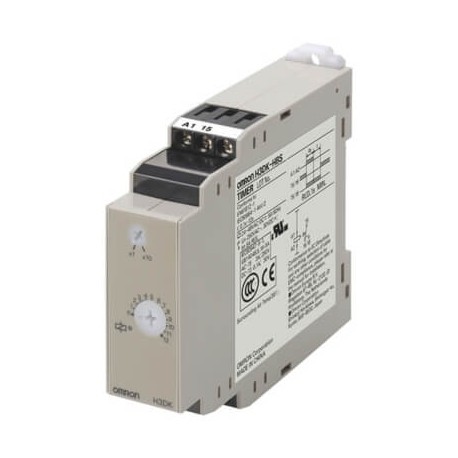

H3DK-HDS AC200-240V H3DK6013A H3DKHDSAC200240VOMI OMRON 22.5 mm DIN OFF short-Range
H3DK-HDS AC200-240V
H3DK6013A
H3DKHDSAC200240VOMI
OMRON
22.5 mm DIN OFF short-Range
Timer, DIN rail mounting, 22.5mm, power off-delay, 0.1-12s, SPDT, 5 A, 200-240 VAC
Relays > Timer relay
Timers > H3DE
Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Related products
▲Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Relay technology category according to IEC 61810-7 (EF016748) | RT I |
| Degree of protection (IP) (EF005474) | IP30 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Material of contact surface (EF004020) | Gold |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Function delay on de-energization (EF003401) | Yes |
| Suitable as remote control (EF003362) | No |
| Outputs, reversible delayed/undelayed (EF006988) | No |
| Function pulse shaping (EF003403) | No |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | Yes |
| Complete with socket (EF003359) | No |
| Function star-delta (EF003380) | No |
| Function floating contact on energization (EF003378) | No |
| Clock function, starting with pause, variable (EF003365) | No |
| Function flashing, starting with pulse, fixed time (EF003364) | No |
| Function delay-on energization (EF003374) | No |
| With semiconductor output (EF003373) | No |
| Function floating contact on de-energization (EF003402) | Yes |
| Function flashing, starting with pause, fixed time (EF003363) | No |
| Suitable for front mounting (EF020288) | No |
| Clock function, starting with pulse, variable (EF003366) | No |
| Pluggable on auxiliary contact block (EF006952) | No |
| Remote operation possible (EF003361) | No |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| Number of outputs, delayed, change-over contact (EF006840) | 1 |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| Width (EF000008) | 22.5 mm |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| Height (EF000040) | 79 mm |
| Depth (EF000049) | 100 mm |
| Nominal current (EF000001) | 5 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 220 V |
| Operating voltage DC (EF008208) | 5 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 200 V |
| Time range (EF003384) | 0.1 s |
| Operating voltage AC 50 Hz (EF008206) | 5 V |
| Operating voltage AC 60 Hz (EF008207) | 5 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGO OMRON AUTOMATION EN.pdf | 28 Mbytes |
|
| PDF CATALOG OMRON 2024 EN.pdf | 25 Mbytes |
|
| H3DK-HDS AC200-240V H3DKHDSAC200240VOMI H3DK6013A EN_H3DK-HDS-AC200-240V.pdf | 5 Mbytes |
|
| H3DK-HDS AC200-240V H3DKHDSAC200240VOMI H3DK6013A l118_h3dk_solid_state_timers_datasheet_en.pdf | 6 Mbytes |
|
