OMRONTimersH3CRH3CR-A8 AC24-48/DC12-48 H3CR8096C H3CRA8AC2448DC1248OMI OMRON Multi-function 8-pin DPDT

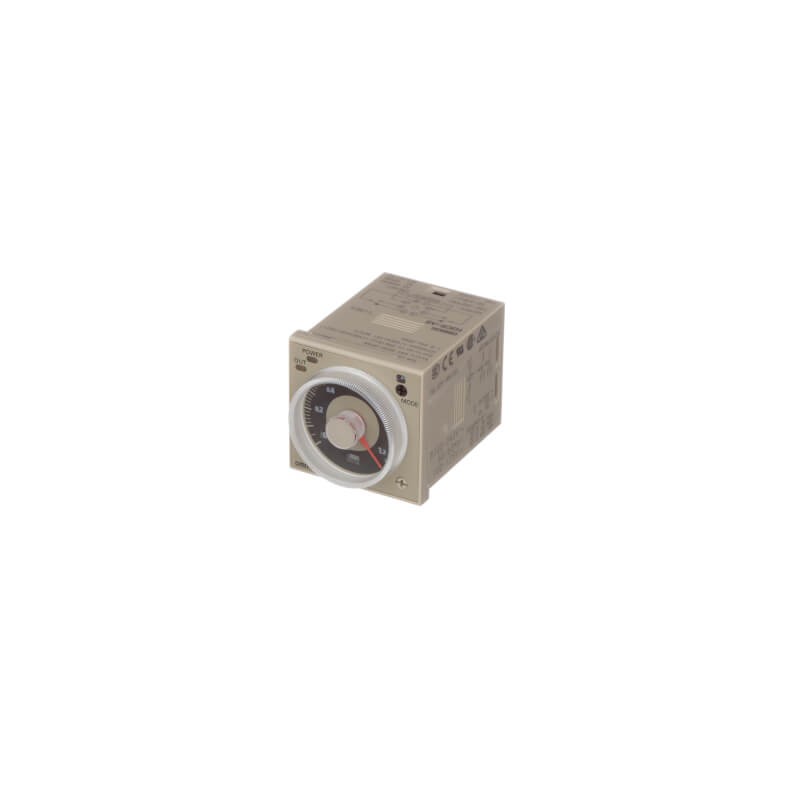

OMRON H3CR-A8 AC24-48/DC12-48 H3CR8096C H3CRA8AC2448DC1248OMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

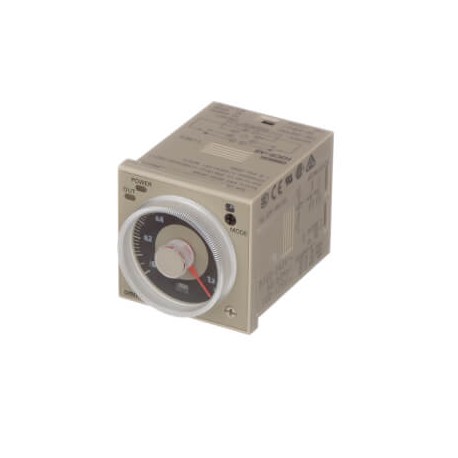

H3CR-A8 AC24-48/DC12-48 H3CR8096C H3CRA8AC2448DC1248OMI OMRON Multi-function 8-pin DPDT

Reference: H3CR-A8 AC24-48/DC12-48

Code: H3CR8096C

Catalog Number: H3CRA8AC2448DC1248OMI

Manufacturer: OMRON

Description:

Multi-function 8-pin DPDT
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H3CR

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 59,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start)
Output typeRelay
Contact descriptionDPDT
Time range0.05 s - 300 h
Supply voltage AC24-48 V
Supply voltage DC12-48 V
Number of pin contact8
InputsNo-voltage

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer

ETIM for 667924 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameMaterial of contact surface (EF004020)
Feature valueSilver
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameFunction delay on de-energization (EF003401)
Feature valueNo
Feature nameSuitable as remote control (EF003362)
Feature valueNo
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueYes
Feature nameFunction pulse shaping (EF003403)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueNo
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueNo
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueNo
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueNo
Feature nameSuitable for front mounting (EF020288)
Feature valueYes
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueYes
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value2
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value48 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameHeight (EF000040)
Feature value48 mm
Feature nameDepth (EF000049)
Feature value68 mm
Feature nameNominal current (EF000001)
Feature value5 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value24 V
Feature nameOperating voltage DC (EF008208)
Feature value0 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value24 V
Feature nameTime range (EF003384)
Feature value0.05 s
Feature nameRated control supply voltage DC (EF003980)
Feature value12 V
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value0 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value0 V
