OMRONTimersH3CRH3CR-A8 100-240VAC/100-125VDC H3CR8095E H3CRA8AC100240DC100125OMI OMRON Multi-function 8-pin DPDT

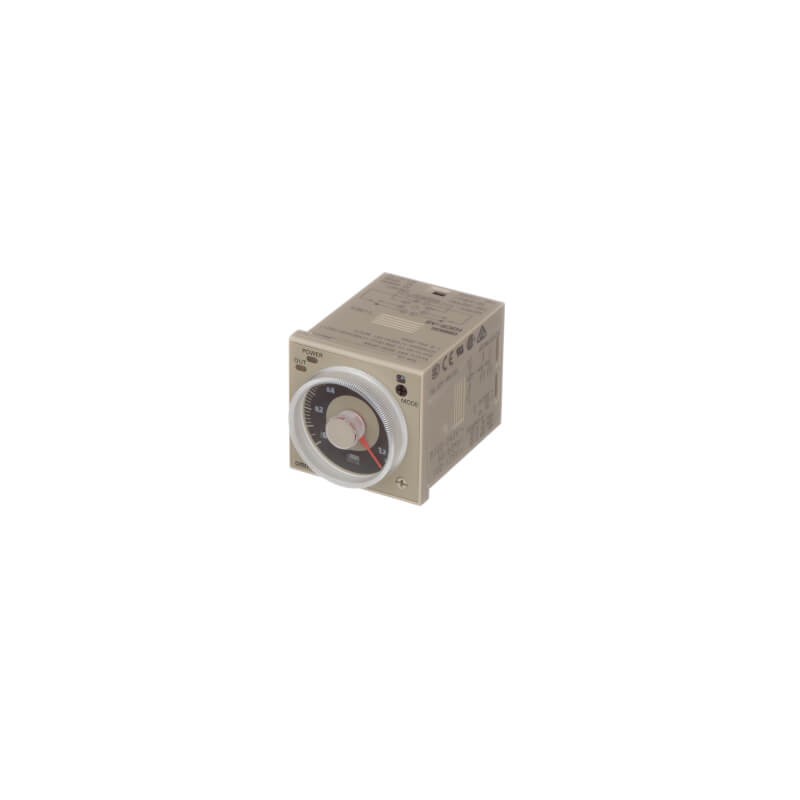

OMRON H3CR-A8 100-240VAC/100-125VDC H3CR8095E H3CRA8AC100240DC100125OMI - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

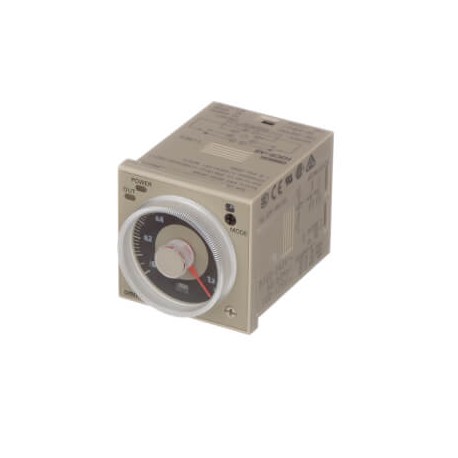

H3CR-A8 100-240VAC/100-125VDC H3CR8095E H3CRA8AC100240DC100125OMI OMRON Multi-function 8-pin DPDT

Reference: H3CR-A8 100-240VAC/100-125VDC

Code: H3CR8095E

Catalog Number: H3CRA8AC100240DC100125OMI

Manufacturer: OMRON

Description:

Multi-function 8-pin DPDT
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A

Categories:

  • Relays > Timer relay
  • OMRON > Timers > H3CR

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 59,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Specifications

TypeAnalog
Installation typeSocket
FunctionsMulti-functional
Size1/16 DIN (48 x 48 mm)
Terminal typePlug-in
Operating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start), One-shot Output (Power ON Start)
Output typeRelay
Contact descriptionDPDT
Time range0.05 s - 300 h
Supply voltage AC100-240 V
Supply voltage DC100-125 V
Number of pin contact8
InputsNo-voltage

Accessories

P3G-08Socket, back-connecting, 8-pin, screw terminals
Y92A-48BProtective cover for DIN 48x48 mm device, hard plastic
Y92F-30Flush panel mounting adapter for DIN 48x48 mm device
Y92F-73Adapter for H3CR replacement of STP-YMH timer

ETIM for 667944 Relays (EC001439)

Feature nameRelay technology category according to IEC 61810-7 (EF016748)
Feature valueRT I
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameVoltage type for actuating (EF008242)
Feature valueAC/DC
Feature nameMaterial contact (EF007544)
Feature valueOther
Feature nameMaterial of contact insert (EF008521)
Feature valueOther
Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC/DC
Feature nameMaterial of contact surface (EF004020)
Feature valueSilver
Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameFunction delay on de-energization (EF003401)
Feature valueNo
Feature nameSuitable as remote control (EF003362)
Feature valueNo
Feature nameSuitable for DIN rail (top hat rail) mounting (EF007250)
Feature valueYes
Feature nameComplete with socket (EF003359)
Feature valueNo
Feature nameFunction flashing, starting with pulse, fixed time (EF003364)
Feature valueNo
Feature nameWith semiconductor output (EF003373)
Feature valueNo
Feature nameFunction floating contact on de-energization (EF003402)
Feature valueNo
Feature nameOutputs, reversible delayed/undelayed (EF006988)
Feature valueYes
Feature nameFunction pulse shaping (EF003403)
Feature valueNo
Feature nameFunction star-delta (EF003380)
Feature valueNo
Feature nameFunction floating contact on energization (EF003378)
Feature valueYes
Feature nameClock function, starting with pause, variable (EF003365)
Feature valueNo
Feature nameFunction delay-on energization (EF003374)
Feature valueYes
Feature nameFunction flashing, starting with pause, fixed time (EF003363)
Feature valueNo
Feature nameSuitable for front mounting (EF020288)
Feature valueYes
Feature nameClock function, starting with pulse, variable (EF003366)
Feature valueYes
Feature namePluggable on auxiliary contact block (EF006952)
Feature valueNo
Feature nameRemote operation possible (EF003361)
Feature valueNo
Feature nameNumber of outputs, undelayed, normally open contact (EF006836)
Feature value0
Feature nameNumber of outputs, undelayed, change-over contact (EF006837)
Feature value0
Feature nameWidth (EF000008)
Feature value48 mm
Feature nameNumber of outputs, undelayed, normally closed contact (EF006835)
Feature value0
Feature nameDepth (EF000049)
Feature value68 mm
Feature nameNumber of outputs, delayed, normally open contact (EF006839)
Feature value0
Feature nameNumber of outputs, delayed, change-over contact (EF006840)
Feature value2
Feature nameNumber of outputs, delayed, normally closed contact (EF006838)
Feature value0
Feature nameHeight (EF000040)
Feature value48 mm
Feature nameNominal current (EF000001)
Feature value5 A
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value100 V
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value100 V
Feature nameOperating voltage DC (EF008208)
Feature value0 V
Feature nameTime range (EF003384)
Feature value0.05 s
Feature nameRated control supply voltage DC (EF003980)
Feature value100 V
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value0 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value0 V

DATASHEET - PDF

Title
Size
Type
H3CR-A8 100-240VAC/100-125VDC H3CRA8AC100240DC100125OMI H3CR8095E l03e_h3cr_solid_state_timer_datasheet_en.pdf
1 Mbytes
PDF CATALOGO OMRON AUTOMATION EN
28 Mbytes
PDF CATALOG OMRON 2024 EN
25 Mbytes
