OMRONPCB RelaysOTHER PCB RELAYSG9EC-1-B DC24 121136 G9EC1BDC24 OMRON Power relay

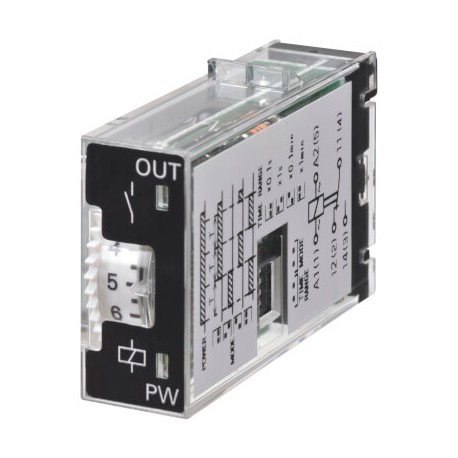

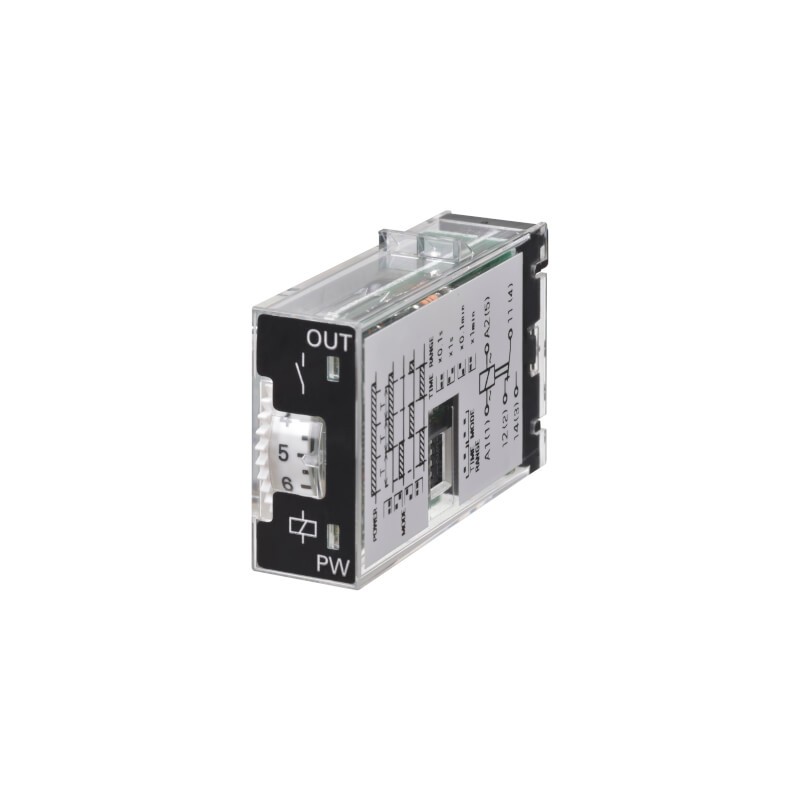

OMRON G9EC-1-B DC24 121136 G9EC1BDC24 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

G9EC-1-B DC24 121136 G9EC1BDC24 OMRON Power relay

Reference: G9EC-1-B DC24

Code: 121136

Catalog Number: G9EC1BDC24

Manufacturer: OMRON

Description:

Power relay

Categories:

  • OMRON > PCB Relays > Other PCB Relays

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Features

Compact, Multi-function Timers with Plug-in socket

  • The Plug-in socket with Push-in plus technology, P2RF-__-PU is available for easy wiring.
  • Easy replacement and reduces your maintenance time
  • Space saving by Slim design 15.5 mm width.

Ordering information

Operating modes

Control output

Supply voltage

Order code

Short-time range (0.1 s to 10 min)

Long-time range (0.1 m to 10 h)

On-delay, Interval,
Flicker OFF-start, Flicker ON Start

SPDT

24 VAC

H3RN-1-B AC24

H3RN-11-B AC24

24 VDC

H3RN-1-B DC24

H3RN-11-B DC24

12 VDC

H3RN-1-B DC12

H3RN-11-B DC12

DPST-NO

24 VAC

H3RN-2-B AC24

H3RN-21-B AC24

24 VDC

H3RN-2-B DC24

H3RN-21-B DC24

12 VDC

H3RN-2-B DC12

H3RN-21-B DC12

Accessories

Plug-in socket

Type

Timer

Order code

Screwless socket with Push-in plus
technology

H3RN-1-B/-11-B

P2RF-05-PU

H3RN-2-B/-21-B

P2RF-08-PU

Specifications

Item

H3RN-1-B/H3RN-2-B

H3RN-11-B/H3RN-21-B

Time ranges

0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. selectable)

0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h max. selectable)

Rated supply voltage

24 VAC (50/60 Hz); 12, 24 VDC

Pin type

Plug-in

Operating mode

ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch

Operating voltage range

85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)

Reset voltage

10% max. of rated supply voltage

Control outputs

3 A at 250 VAC, resistive load (cosφ = 1) (G6B-2_14P-FD-US used (Contact materials: AgSnIn))
The minimum applicable load is 10 mA at 5 VDC (P reference value).

Accuracy of operating time

±1% FS max. (1 s range: ±1%±10 ms max.)

Setting error

±15% ±50 ms FS max.

Reset time

Min. power-opening time: 12, 24 VDC: 0.1 s max. (including halfway reset)
24 VAC: 0.5 s max. (including halfway reset)

Influence of voltage

±2% FS max.

Influence of temperature

±2% FS max.

Ambient temperature

Operating: −10°C to 55°C (with no icing)
Storage: −25°C to 65°C (with no icing)

Degree of protection

IP40 (Terminal screw sections are excluded.)

Size in mm (H × W × D)

31.2×12.8×47.2

1.Refer to Safety Precautions for All Times when combining the timer with an AC 2-wire proximity sensor.

2.When using the H3RN in any place where the ambient temperature is more than 50°C, supply 90% to 110% of the rated voltages (12 VDC: 95% to 110% of the rated voltage).
