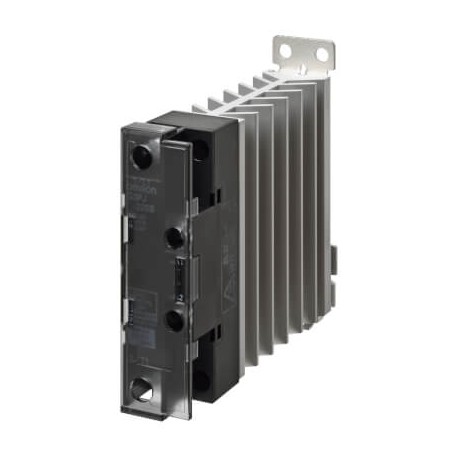

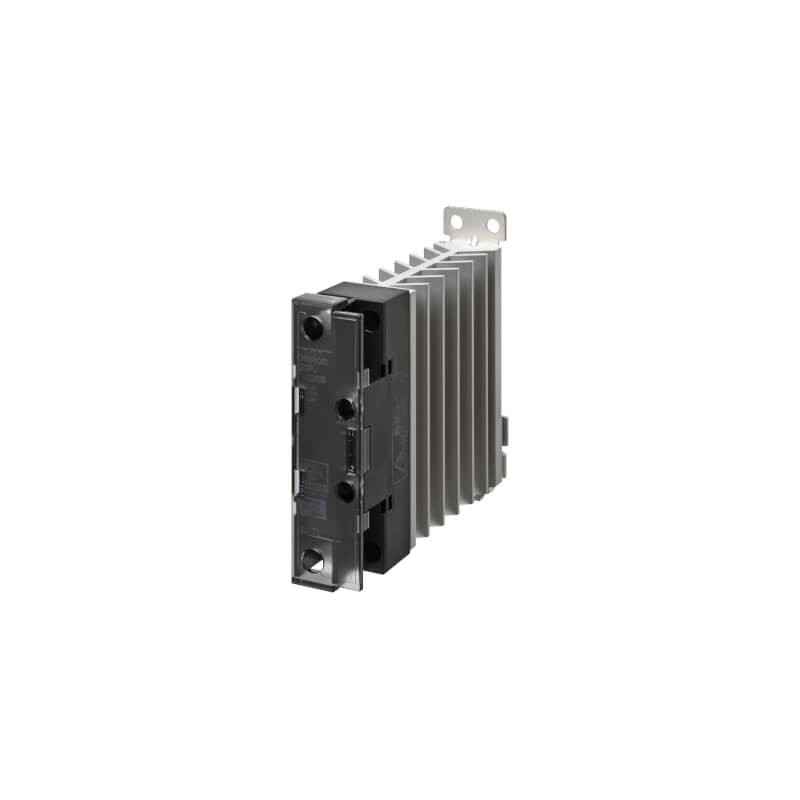

G3PJ-525B DC12-24 G3PJ2012M 669932 OMRON Solid State Relay 27A 100-480Vac Single Phase DIN Rail With Disp.
G3PJ-525B DC12-24
G3PJ2012M
G3PJ525BDC1224
OMRON
Solid State relay 27A, 100-480vac single Phase DIN Rail With disp
Solid-state relay, 1 phase, 27A, 100-480 VAC, with heat sink, DIN rail mount, input voltage 12-24V DC
Solid State Relays > G3PJ
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
More info
▲Specifications
| Application | Power control |
| Number of phases | 1 |
| Number of poles | 1 |
| Mounting method | DIN rail/screw |
| Terminal | Screw |
| Complete with socket | |
| With LED indicator | |
| Rated operational voltage, AC | 100-480 V |
| Operating voltage range, AC | 75-528 V |
| Rated operation current Ie at AC-1 | 27 A |
| Rated load current Close mounting | 25 A |
| Permissible I²t value | 6600 A²s |
| Supply voltage DC | 12-24 V |
| Control current max. | 7 mA |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| G3PJ-525B DC12-24 G3PJ525BDC1224 G3PJ2012M EN_G3PJ-225B-PU DC12-24.pdf | 3 Mbytes |
 |
| G3PJ-525B DC12-24 G3PJ525BDC1224 G3PJ2012M industrial_relays_brochure_en.pdf | 973 Kbytes |
|
