G3PJ-515B DC12-24
G3PJ2011B
G3PJ515BDC1224
OMRON
1
Available Ship on today

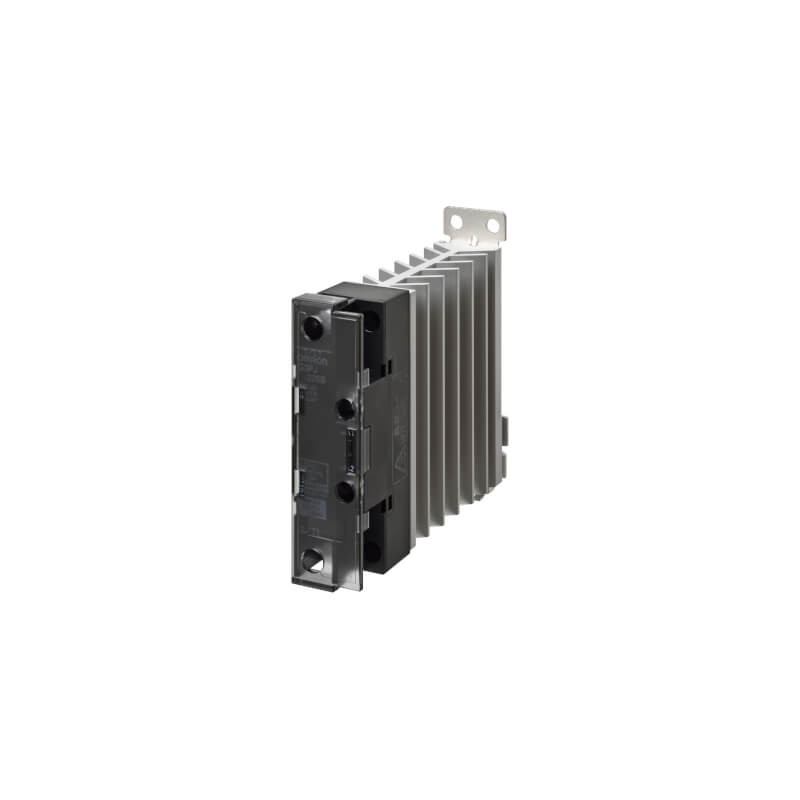

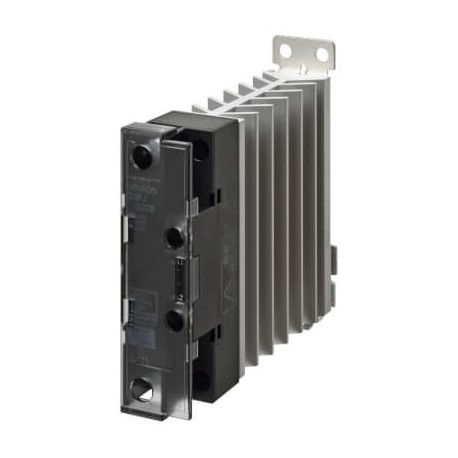

Solid State relay 23A 100-480vac single Phase DIN Rail With disp
Solid-state relay, 1 phase, 23A, 100-480V AC, with heat sink, DIN rail mount, input voltage 12-24V DC
Solid State Relays > G3PJ
* Brand new product in its original packaging covered by the warranties and certifications provided by OMRON
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Application | Power control |
Number of phases | 1 |
Number of poles | 1 |
Mounting method | DIN rail/screw |
Terminal | Screw |
Complete with socket | |
With LED indicator | |
Rated operational voltage, AC | 100-480 V |
Operating voltage range, AC | 75-528 V |
Rated operation current Ie at AC-1 | 23 A |
Rated load current Close mounting | 15 A |
Permissible I²t value | 1350 A²s |
Supply voltage DC | 12-24 V |
Control current max. | 7 mA |
Must operate voltage max. | 9.6 V |
Must release voltage min. | 1 V |
Maximum operating temperature | 80 °C |
Minimum operating temperature | -30 °C |
Isolation | Phototriac |
Title: | Size: | Type: |
---|---|---|
G3PJ-515B DC12-24 G3PJ515BDC1224 G3PJ2011B EN_G3PJ-225B-PU DC12-24.pdf | 3 Mbytes | |
G3PJ-515B DC12-24 G3PJ515BDC1224 G3PJ2011B industrial_relays_brochure_en.pdf | 973 Kbytes |
