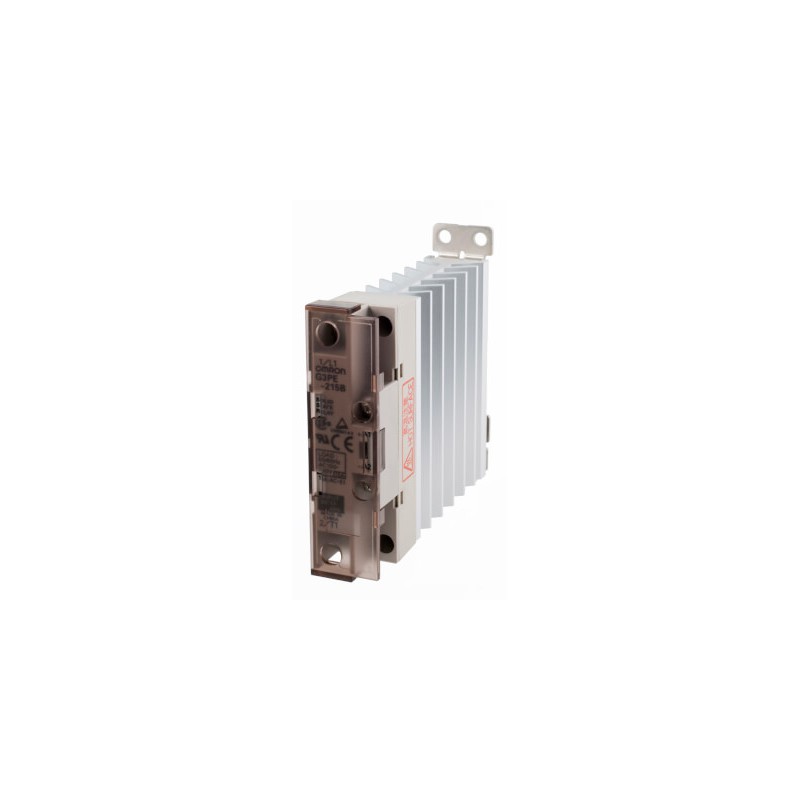

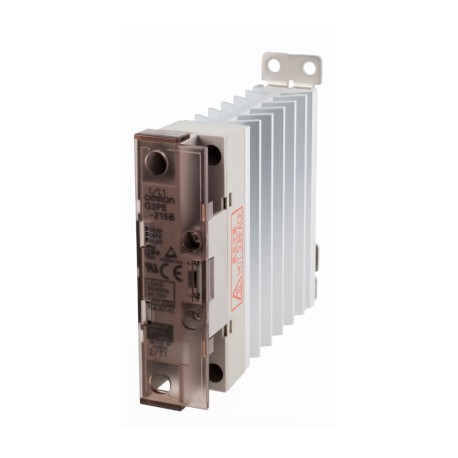

G3PE-515B-3H 12-24VDC G3PE2061G G3PE515B3HDC1224,1 OMRON 15A 200-480vac three-Phase Installation Without dis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

G3PE-515B-3H 12-24VDC G3PE2061G G3PE515B3HDC1224,1 OMRON 15A 200-480vac three-Phase Installation Without dis..

G3PE-515B-3H 12-24VDC

G3PE2061G

G3PE515B3HDC1224.1

OMRON

10

15A 200-480vac three-Phase Installation Without disip. Step-by-Zero

15A 200-480Vac Three Phase Mounting Without Dissip. Zero Pass

Solid-State relay, 3-pole 15A, 264VAC max

More details


Relays > Solid state relay

Solid State Relays > G3PB

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

Total: $1,890.31
Unit price: $189.03
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Features

Omron’s G3PE Compact Industrial SSR with outstanding surge endurance

The G3PE features an original surge-pass circuit that gives outstanding surge endurance and protects the semiconductor device against voltages in excess of 30kV.

  • Single and three phase, 15-45 A output current
  • 100-240VAC and 200-480 VAC output voltages
  • Models available without zero cross
  • Improved surge dielectric strength for output circuits
  • Terminal cover with finger protection
  • Mount to DIN track or with screws

Ordering information

Phases

Rated voltage
(operating voltage)

Rated output load

Permissible I2t
(half 60 Hz wave)

Applicable heater capacity
AC1: resistive load)

Size in mm (H×W×D)

Number of poles

Order code

1

100 to 240 VAC
(75 to 264 VAC)

15 A (at 40°C)

121 A2s

3 kW (at 200 VAC)

100×22.5×100

1

G3PE-215B DC12-24

25 A (at 40°C)

260 A2s

5 kW (at 200 VAC)

1

G3PE-225B DC12-24

35 A

1,260 A2s

7 kW (at 200 VAC)

100×44.5×100

1

G3PE-235B DC12-24

45 A

9 kW (at 200 VAC)

1

G3PE-245B DC12-24

200 to 480 VAC
(180 to 528 VAC)

15 A (at 40°C)

128 A2s

6 kW (at 400 VAC)

100×22.5×100

1

G3PE-515B DC12-24

25 A (at 40°C)

1,350 A2s

10 kW (at 400 VAC)

1

G3PE-525B DC12-24

35 A

14 kW (at 400 VAC)

100×44.5×100

1

G3PE-535B DC12-24

45 A

6,600 A2s

18 kW (at 400 VAC)

1

G3PE-545B DC12-24

3

200 to 480 VAC
(180 to 528 VAC)

15 A (at 40°C)

260 A2s

12.5 kW (at 480 VAC)

100×80×155

3

G3PE-515B-3N DC12-24

2

G3PE-515B-2N DC12-24

25 A (at 40°C)

20.7 kW (at 480 VAC)

120×80×155

3

G3PE-525B-3N DC12-24

100×80×155

2

G3PE-525B-2N DC12-24

35 A

1,260 A2s

29 kW (at 480 VAC)

140×80×155

3

G3PE-535B-3N DC12-24

120×80×155

2

G3PE-535B-2N DC12-24

45 A

37.4 kW (at 480 VAC)

140×110×155

3

G3PE-545B-3N DC12-24

140×80×155

2

G3PE-545B-2N DC12-24

Specifications

Rated input voltage

12 to 24 VDC

Operating voltage range

9.6 to 30 VDC

Rated input current (impedance)

7 mA max. (zero cross models); 15 mA max. (models without zero cross)

Zero cross function

Yes

Must operate voltage

9.6 VDC max.

Must release voltage

1 VDC min.

Isolation method

Phototriac coupler

Operation indicator

Yes (yellow)

Load voltage range

200 to 480 VAC models: 180 to 528 VAC

100 to 240 VAC models: 75 to 264 VAC

Operate time

1/2 of load power source cycle +1 ms max.

Release time

1/2 of load power source cycle +1 ms max.

Leakage current

10 mA (at 200 VAC)

Ambient temperature

Operating: -30 to 80°C

ETIM for 375446 Relays (EC002055)
Feature Name Feature Value
Voltage type (operating voltage) (EF005294) AC
Voltage type for actuating (EF008242) AC
Modular version (EF001126) No
Rated operation current Ie at AC-1 (EF006069) 5 A
Number of phases (EF000351) 3
Rated control supply voltage DC (EF003980) 12 V
Operating voltage AC 50 Hz (EF008206) 200 V
Operating voltage AC 60 Hz (EF008207) 200 V

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG OMRON 2024 EN.pdf 25 Mbytes
G3PE-515B-3H 12-24VDC G3PE515B3HDC1224.1 G3PE2061G g3pe_single_phase_solid_state_relays_for_heaters_datasheet_en.pdf 2 Mbytes G3PE-515B-3H 12-24VDC G3PE515B3HDC1224.1 G3PE2061G g3pe_single_phase_solid_state_relays_for_heaters_datasheet_en.pdf
