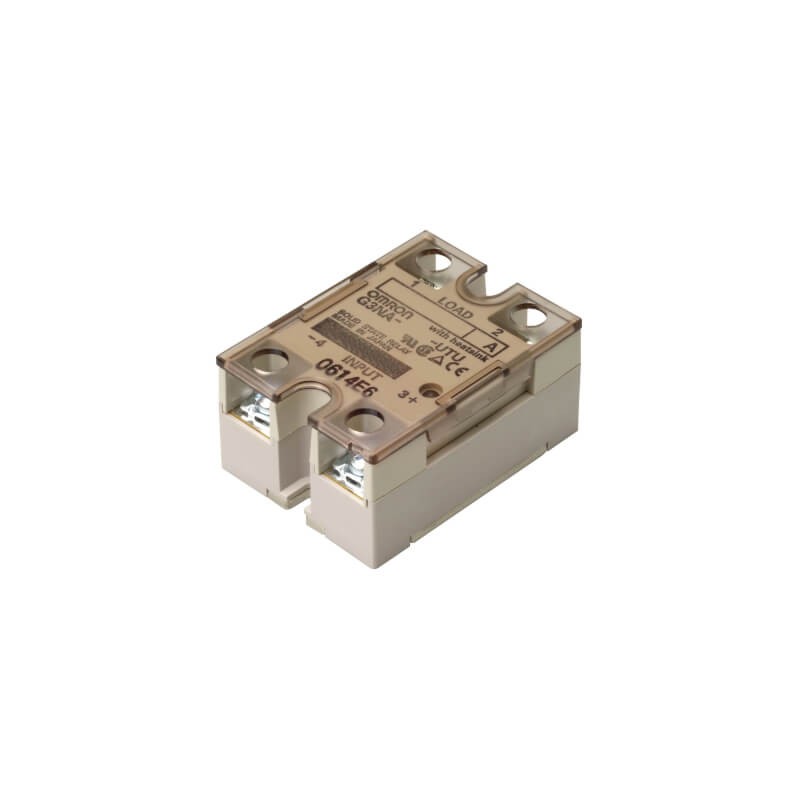

OMRON G3NA-425B-UTU-2 100-240VAC G3NA7118F G3NA425BUTU2AC100240BYO - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

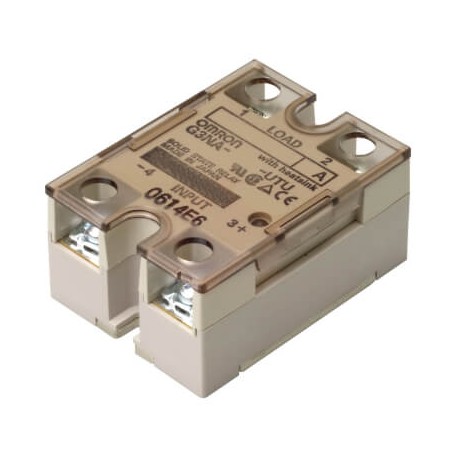

G3NA-425B-UTU-2 100-240VAC G3NA7118F G3NA425BUTU2AC100240BYO OMRON Solid state relay, surface mounting, zero..

Reference: G3NA-425B-UTU-2 100-240VAC

Code: G3NA7118F

Catalog Number: G3NA425BUTU2AC100240BYO

Manufacturer: OMRON

Description:

Solid state relay, surface mounting, zero crossing, 1-pole, 25 A, 200 to 480 VAC

Categories:

  • Relays > Solid state relay
  • OMRON > Solid State Relays > G3N

Brand new product in its original packaging covered by the warranties and certifications provided by OMRON

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 708,07 €

Unit Price: 70,807 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ApplicationON/OFF controlNumber of phases1Mounting methodDIN rail/screwTerminal typeScrewLED indicatorRated operational voltage, AC200-480 VOperating voltage range, AC180-528 VRated operation current Ie at AC-14 AProduct Height (unpacked)58 mmProduct Width (unpacked)43 mmProduct Depth (unpacked)27 mmSupply voltage AC100-240 VMust operate voltage max.75 VMust release voltage min.20 VMaximum operating temperature80 °CMinimum operating temperature-30 °CSwitching at zero-crossing

ETIM for 690636 Relays (EC002055)

Feature nameVoltage type (operating voltage) (EF005294)
Feature valueAC
Feature nameVoltage type for actuating (EF008242)
Feature valueAC
Feature nameSwitching at zero-crossing (EF011956)
Feature valueYes
Feature nameModular version (EF001126)
Feature valueNo
Feature nameRated operation current Ie at AC-1 (EF006069)
Feature value4 A
Feature nameNumber of phases (EF000351)
Feature value1
Feature nameRated operation current Ie at AC-3 (EF006070)
Feature value25 A
Feature nameRated control supply voltage AC 60 Hz (EF003979)
Feature value100 V
Feature nameRated control supply voltage AC 50 Hz (EF003978)
Feature value100 V
Feature nameOperating voltage AC 50 Hz (EF008206)
Feature value200 V
Feature nameOperating voltage AC 60 Hz (EF008207)
Feature value200 V
